SIEMENS執行器SQN3/SQN4系列技術參數
General actuator data | |
Actuator | |
Mains voltage | AC 220 V –15 %...AC 240 V +10 % AC 110 V –15 %...AC 110 V +10 % |
Mains frequency | 50...60 Hz ±6 % |
Type of motor | synchronous motor |
Power consumption | 6.5 VA |
Angular position | max. 160° |
Mounting position | optional |
Degree of protection | IP 40 to DIN 40050, provided adequate cable entries and screws are used |
Cable entry | suited for 1 x Pg9 and 1 x Pg11, no locknut required |
Cable connections | screw terminals for wires having a crosssectional area of 0.5 to 2.5 mm2 |
Ferrules | matching the dia. of the stranded wire |
Running times | 4.5...120 s for 90° |
Coupling | drive shaft / geartrain by means of a pin |
Weight (on average) | approx. 800 g |
End and auxiliary switches | |
Number of end switches | 2 |
Number of auxiliary switches | 1...3 |
Actuation | via camshaft |
Switching voltage | AC 24...250 V |
Terminal rating at cos = 0.9: | under load ON, with no load OFF |
Adjustment of cams in increments of | 1° |
SIEMENS執行器SQN系列介紹
用于空氣阻尼器或用于中小容量燃油或燃氣燃燒器的燃料/空氣比例控制的電動執行器。
? 用于集成電位器的版本
? 運行時間從 4.5 秒到 120 秒
? 所有版本均具有：
– 輔助開關和集成繼電器（可選）
– 可分離的齒輪系
– 內部和外部位置指示
– 易于調節的末端開關和輔助開關
SQN3... / SQN4... 和本數據表旨在供將執行器集成到其產品中的 OEM 使用！
Electromotoric actuators for air dampers or for fuel / air ratio control with oil or gas burners of small to medium capacity.
? Versions for integrating a potentiometer
? Running times from 4.5 to 120 seconds
? All versions feature:
– Auxiliary switches and integrated relays (optional)
– Geartrains which can be disengaged
– Internal and external position indication
– Easily adjustable end and auxiliary switches
The SQN3... / SQN4... and this Data Sheet are intended for use by OEMs which integrate the actuators in their products!

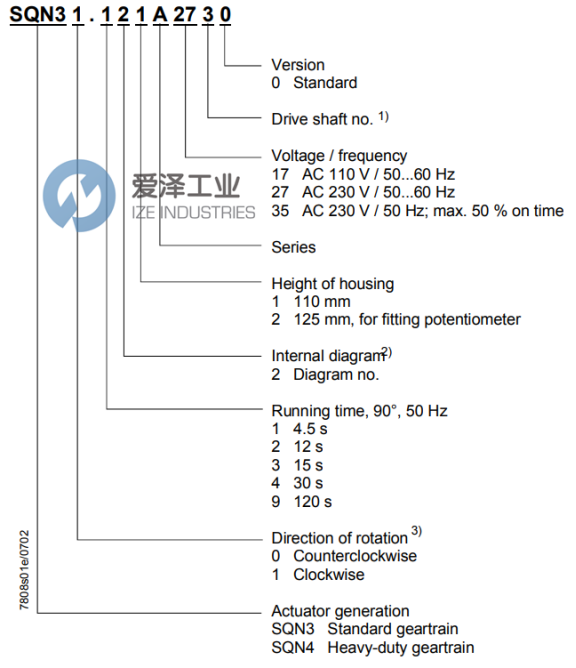

SIEMENS執行器SQN系列選型
SIEMENS執行器SQN系列其他常用型號：
SIEMENS SQN31.121A2760
SIEMENS SQN31.151A2700
SIEMENS SQN31.151A2730
SIEMENS SQN31.221A2700
SIEMENS SQN31.221A2730
SIEMENS SQN31.251A2700
SIEMENS SQN31.251A2730
SIEMENS SQN31.252A2700
SIEMENS SQN31.351A2700
SIEMENS SQN31.401A2700
SIEMENS SQN31.401A2730
SIEMENS SQN31.401A2760
SIEMENS SQN31.402A2700
SIEMENS SQN31.411A2700
SIEMENS SQN31.411A2730
SIEMENS SQN31.762A2700
SIEMENS SQN31.941A2700
