OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績?cè)谄嚭凸こ虣C(jī)械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH閥VEI-16-08A-VU-VS-ST-06系列技術參數
Technical data | |
General | |
Installation orientation | Unrestricted |
Ambient temperature range | —30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Max. internal leakage | 5 drops/min. |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | —20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contaminatio | Nominal value max. 10 μm(NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years (see 18350-51) |
Cavity | CA-08A-2N (see 18325-70) |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

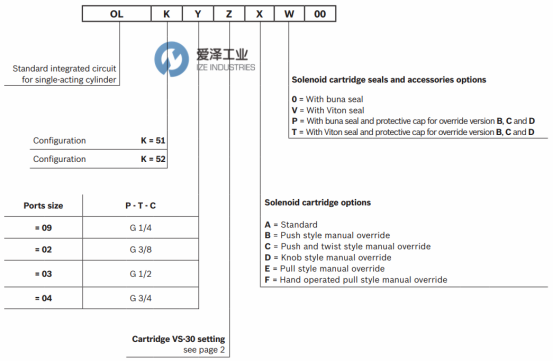

REXROTH閥VEI-16-08A-VU-VS-ST-06系列選型
REXROTH閥VEI-16-08A-VU-VS-ST-06系列其他常用型號：
REXROTH OL510904A000000 R930065948
REXROTH OL510907A000000 R930065940
REXROTH OL510910A000000 R930065941
REXROTH OL510204A000000 R930065924
REXROTH OL510207A000000 R930064247
REXROTH OL510210A000000 R930065937
REXROTH OL510304A000000 R930065949
REXROTH OL510307A000000 R930064256
REXROTH OL510310A000000 R930065929
REXROTH OL520207A000000 R930066293
REXROTH OL520307A000000 R930066336
REXROTH OL510207D000000 R930065950
REXROTH OL510310D000000 R930065939
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥OL510307A000000 R930064256的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH閥OL510307A000000 R930064256技術參數及選型
