FOXBORO現為法國Schneider旗下品牌，主要制造工業控制及過程自動化中的相關儀表。
FOXBORO PH/ORP傳感器871PH-3F1A-3BT技術參數
Series | 871PH = Rebuildable Style pH/ORP Sensor |
Sensor Body Material and Diagnostic Configuration | 3 = Ryton, Intelligent Configuration, Integral 6 m (20 ft) Cable, Integral Preamplifier (b) |
Measuring Electrode and Body Material | F = Flat Ruggedized Glass, pH, Ryton (c) |
Sensor Wetted Metallic Parts Material | 1 = AISI Type 316L Stainless Steel (316L ss) |
Reference Junction and Body Material | A = Ceramic, Ryton A |
Optional Selections Cable; Integral to Sensor; Standard and High Temperature | 3 = Nonstandard Integral Cable Length, standard temperature at 85°C (185°F);(not available with Option -Q) (d) |
Variopin Quick Connector on Integral Cable or Sensor Body | B = Integral Cable Terminated w/Variopin Quick Connector (not available with Options -4, -5, -7) (f)(j) |
Miscellaneous Optional Selections | T = ptfe Collar |
FOXBORO PH/ORP傳感器871PH系列介紹
871PH 傳感器與 Foxboro 870PH 和 870ITPH 變送器以及 873PH、873APH、873DPX 和 875PH 分析儀配合使用。 871PH 傳感器只需一個基本傳感器即可實現多種用途。 該傳感器使用多個電極之一作為敏感元件，并使用潤濕的、不流動的陶瓷盤作為主要參比接點。 這些元件安裝在帶有溫度補償裝置的傳感器組件主體內。
The 871PH Sensor is used with Foxboro 870PH and 870ITPH Transmitters and 873PH, 873APH, 873DPX, and 875PH Analyzers. The 871PH Sensor permits multiple-purpose use with only one basic sensor. The sensor uses one of several electrodes as the sensitive element and a wetted, nonflowing ceramic disc as the primary reference junction. These components are mounted in the body of the sensor assembly with a temperature compensating device.

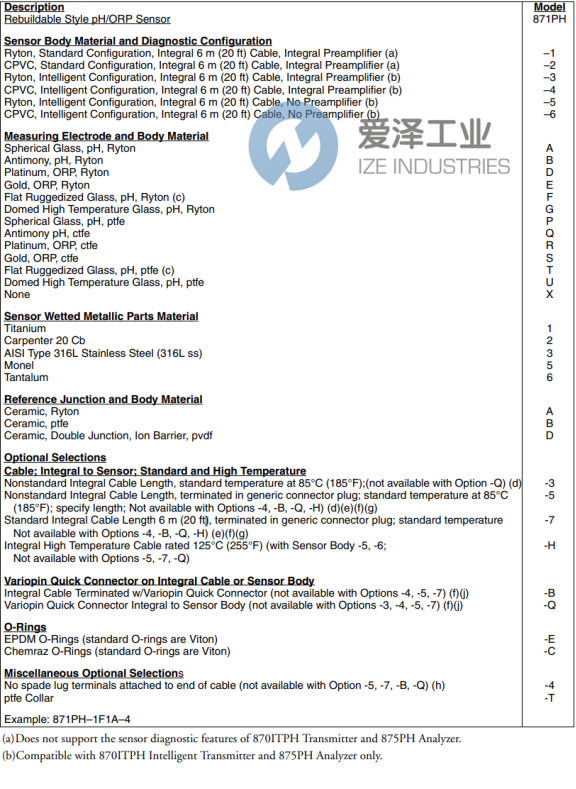

FOXBORO PH/ORP傳感器871PH系列選型
FOXBORO PH/ORP傳感器871PH系列其他常用型號：
FOXBORO 871PH-3F1A-3BT
FOXBORO 871PH-3F1A
FOXBORO 871PH-1A1A
FOXBORO 871PH-5A6A-3
FOXBORO 871PH-5P1A-4
FOXBORO 871PH-1A3A
FOXBORO 871PH-3B5B-3
FOXBORO 871PH-1A1A-4
FOXBORO 871PH-1F1A-3PH
FOXBORO 871PH-6P1B
FOXBORO PH/ORP FOXBORO 傳感器871PH系列 NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FOXBORO PH/ORP傳感器871PH-3F1A-3BT的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
FOXBORO PH/ORP傳感器871PH系列871PH-3F1A-3BT技術參數及選型
