FLAKTWOODS風機GXHB-5-035-8-0-1-1X技術參數

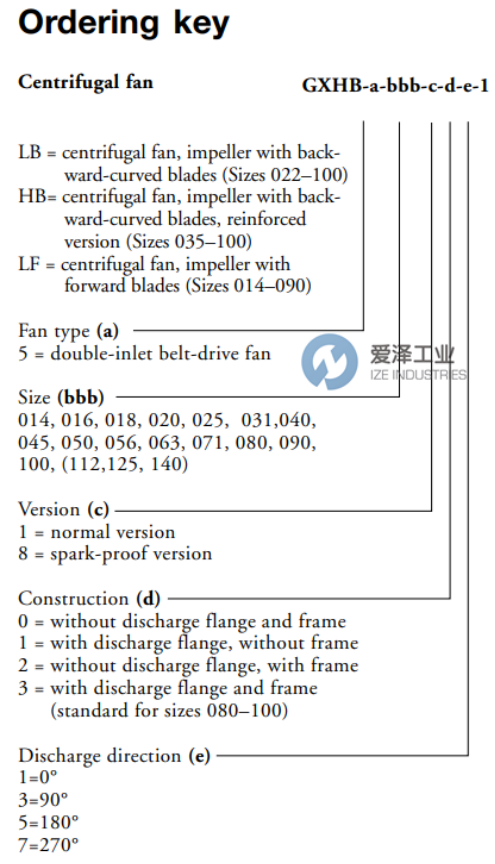

Code | GXHB-5-035-8-0-1-1X |
Centrifugal fan | HB = centrifugal fan, impeller with backward-curved blades, reinforced version (Sizes 035–100) |
Fan type | 5 = double-inlet belt-drive fan |
Size | 035 |
Version | 8 = spark-proof version |
Construction | 0 = without discharge flange and frame |
Discharge direction | 1 = 0° |
FLAKTWOODS風機GXHB系列介紹
雙進風離心風機，皮帶傳動。 風機外殼采用森吉米爾鍍鋅鋼板制成，采用匹茲堡折疊法連接，尺寸為100，由五段組成，配有法蘭。 鋼制葉輪帶有向后彎曲的葉片，葉片連續焊接到護罩上。 葉輪經過脫脂、鐵磷化處理并涂有 60 毫米環氧粉末涂料。 根據 ISO 1940 - 1973，葉輪的動態平衡精度為 G 2.5。風扇截止閥專為實現更佳空氣動力學特性而設計。
鋼軸兩端帶有鍵槽，設計臨界轉速比風扇更高轉速高20%。 葉輪通過鍵固定在軸上。
尺寸為 035 至 050 的 GXHB 風機具有兩側密封的永久潤滑單列深溝球軸承，通過錐形安裝套筒固定到軸上。 軸承由三臂或四臂星輪支撐。 尺寸為 056 至 100 的 GXHB 風機配有帶自調心滾子軸承的立式軸承座，并配有油嘴。 滾子軸承由焊接支架支撐。 風機性能根據 AMCA 210-85 測量，聲音數據根據 AMCA 300-85 測量。
Double inlet centrifugal fan for belt drive. Fan casing is made of Sendzimir galvanized sheet steel and jointed by Pittsburg folding method, in size 100 consisting of five sections equipped with flanges. Steel impeller with backward curved blades, blades continuously welded to the shroud. Impeller is degreased, iron phosphatized and painted with epoxy-powder paint 60 mm. Impeller is dynamically balanced to an accuracy of G 2.5 according to ISO 1940 - 1973. Fan cut-off is specially designed for optimal aerodynamical properties.
Steel shaft with keyways at both ends and designed for a critical speed which is 20% higher than the maximum speed of the fan. Impeller secured to the shaft by means of a key.
GXHB-fans in sizes 035 to 050 have permanently lubricated single-row deep-groove ball bearings sealed at both sides, secured to the shaft by means of a taper mounting sleeve. The bearings are supported by three or four-arm spider. GXHB-fans in sizes 056 to 100 have plummer blocks with self-aligning roller bearings equipped with grease nipples. The roller bearings are supported by a welded bracket. Fan performance is measured according to AMCA 210-85 and sound data according to AMCA 300-85.
