REXROTH致力于為各類機械和系統設備提供安全、精準、高效以及高性價比的傳動與控制技術。公司融合全球的應用經驗，研發創新的產品，為行走機械、機械應用與工程、工廠自動化及可再生能源每一個細分市場的客戶量身定制系統解決方案及服務。
REXROTH的主要產品有：REXROTH換向閥，REXROTH止回閥，REXROTH浮球開關，REXROTH平衡閥，REXROTH球閥，REXROTH插裝閥，REXROTH單向閥，REXROTH溢流閥，REXROTH行程閥，REXROTH驅動閥，REXROTH安全閥，REXROTH閥組，REXROTH閥塊，REXROTH浮球開關線圈，REXROTH流量計等等

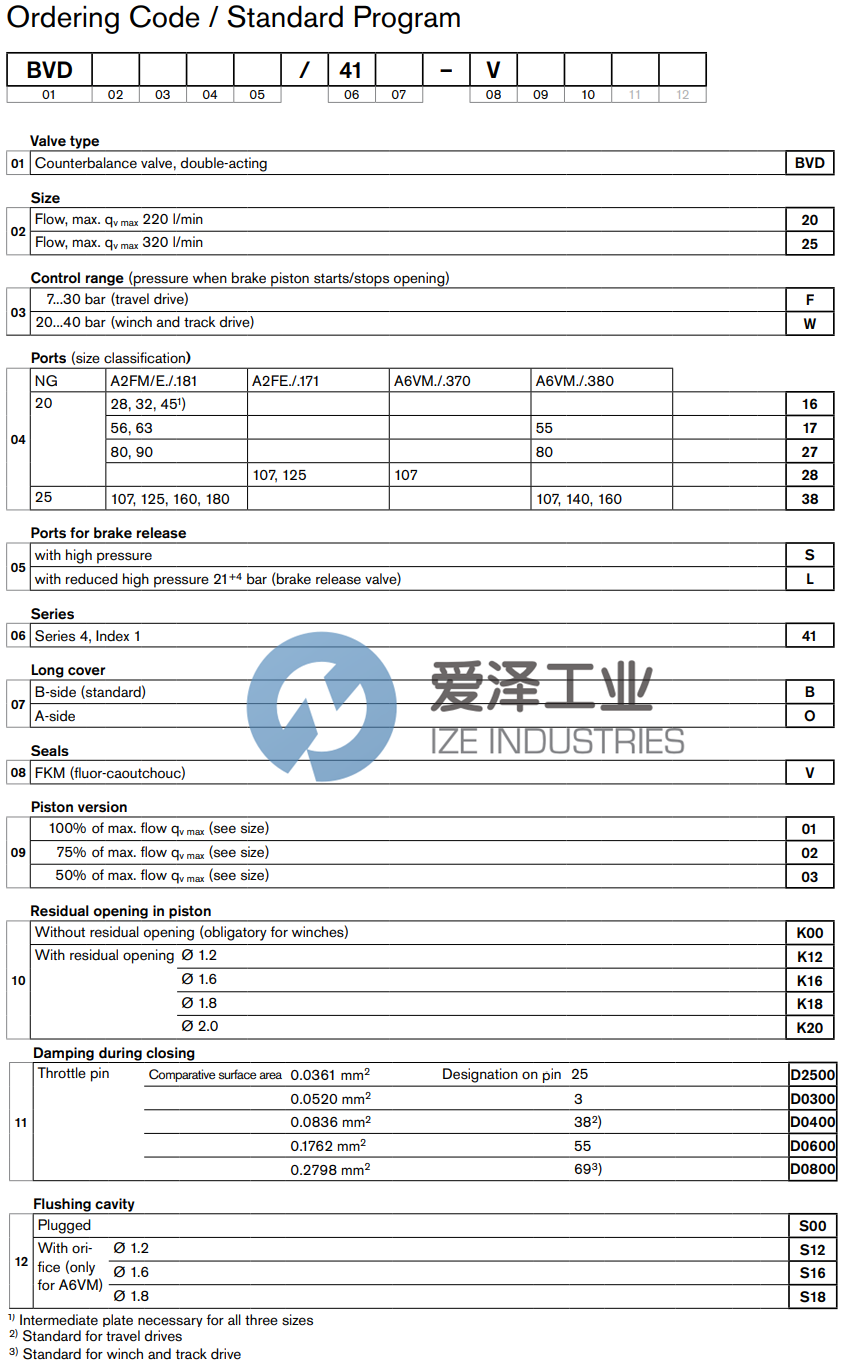

REXROTH制動閥R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB技術參數
Code | BVD25W38S41B-V12K00B0655S00-S W ZDB |
Valve type | BVD = Counterbalance valve, double-acting |
Size | 25 = Flow, max. qv max 320 l/min |
Control range | W = 20...40 bar (winch and track drive) |
Ports | 38 = NG, 25; A2FM/E./.181, 107, 125, 160, 180; A6VM./.380, 107, 140, 160 |
Ports for brake release | S = with high pressure |
Series | 41 = Series 4, Index 1 |
Long cover | B = B-side (standard) |
Seals | V = FKM (fluor-caoutchouc) |
Piston version | 12 |
Residual opening in piston | K00 = Without residual opening (obligatory for winches) |
Damping during closing | B0655 |
Flushing cavity | S00 = Plugged |
REXROTH制動閥BVD系列介紹
特征
– 緊湊的設計和直接安裝在 A2FM(E) 和 A6VM 軸向柱塞電機（63 系列）上，節省安裝空間
– 與 A2FM(E) 和 A6VM 軸向柱塞馬達（63 系列）和 GFT 齒輪箱成套提供； 測試臺按標準運行。
– 符合 SAE J518 的標準服務線端口
– 集成制動釋放閥，帶或不帶減壓功能
– 低流阻帶來高效率
– 由于模塊化設計，調試期間可以輕松進行優化。
Features
– Space-saving installation due to compact design and direct mounting on A2FM(E) and A6VM axial piston motors (series 63)
– Available as a complete set with A2FM(E) and A6VM axial piston motors (series 63) and GFT gear units; test stand run as standard.
– Standard service line ports according to SAE J518
– Integrated brake release valve, with and without pressure reduction
– High efficiency due to low flow resistance
– Easy optimization options during commissioning due to modular design.
REXROTH制動閥BVD系列選型
REXROTH制動閥BVD系列常用型號：
REXROTH R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB
REXROTH R902107370 BVD25W38S/41B-V01K00D0800S00 50425.1066
REXROTH R902064672 BVD25W38S/41B-V02K00D0800S00
REXROTH R902070343 BVD25W38S/41B-V02K00D1000S00
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH制動閥R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH制動閥BVD系列R902068290 BVD25W38S/41B-V12K00B0655S00-S W ZDB技術參數及選型
