HONEYWELL變送器STD725-E1AC4AS-1-A-CHS-11S-A-00A0技術規格
STD725-E1AC4AS-1-A-CHS-11S-A-00A0 |
E:316L Stainless Steel |
1:Silicone Oil 200 |
A:None (1/4" NPTF female thread Std) |
C:Carbon Steel |
4:Dual Ended Standard Vent End Matches Head Material |
A:Teflon or PTFE (Glass Filled) |
S:Standard Static Pressure - 4500 psig (315 bar) |
1:Standard High Side Left, Low Side Right2 / Std Head Orientation |
A:FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
C:Polyester Powder Coated Aluminum 1/2 NPT Yes |
H:4-20mA dc HART Protocol |
S:None EN, RU |
1:Standard Diagnostics |
1:Disabled High> 21.0mAdc Honeywell Std (3.8 - 20.8 mAdc) |
S:Factory Standard |
A:Standard Factory Std Single Calibration |
0:None |
0:No customer tag |
A0:No Conduit Plugs or Adapters Required |
HONEYWELL變送器STD700系列產品介紹及選型
STD700型號是SmartLine系列產品的一部分，適用于監視，控制和數據采集。這些產品采用壓阻傳感器技術，結合了壓力傳感和片上溫度補償功能，可在各種應用壓力和溫度范圍內提供高精度，穩定性和高性能。 SmartLine系列還經過了全面測試，并與Experion PKS兼容，可提供高水平的兼容性保證和集成能力。SmartLine輕松滿足壓力測量應用程序最苛刻的應用程序需求。
功能：
精度高達量程的0.065％
十年內每年的穩定性高達URL的0.020％
自動靜壓和溫度補償
量程高達100：1
響應時間高達100ms
易于使用且直觀的顯示功能直觀的外部零位，跨度和配置功能
板載診斷功能
集成雙密封設計，基于ANSI / NFPA 70-202和ANSI / ISA 12.27.0的最高安全性
優質的過壓保護
Part of the SmartLine? family of products, the STD700 models are suitable for monitoring, control and data acquisition. These products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion? PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications
Best in Class Features:
Accuracies up to 0.065% of span
Stability up to 0.020% of URL per year for 10 years
Automatic static pressure & temperature compensation
Rangeability up to 100:1
Response times as fast as 100ms
Easy to use and intuitive display capabilities
Intuitive External Zero, Span and configuration capability
On-board diagnostic capabilities
Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
World class overpressure protection
HONEYWELL變送器STD700系列其他常用型號：
HONEYWELL STD720-A1AC1AS-1-0-AH0-11S-A-00A0-00-0000
HONEYWELL STD720-E1AS4AS-1-A-AHC-11S-A-00A6-F1-0000
HONEYWELL STD720-E1HC4AS-1-A-BHS-11S-B-10A0-F1-0000
HONEYWELL STD720-F1HC4AS-1-CDHC-11S-A-00A7-00-0000
HONEYWELL STD725-E1AC4AS-1-0-AHS-11C-B-11A0-F1-0000
HONEYWELL STD725-E1AC4AS-1-0-AHS-11S-A-00A0
HONEYWELL STD725-E1HS1AS-1-C-BHS-11C-B-00A0-F1
HONEYWELL STD725-E1HS2AS-1-C-AHT-11S-A-31A0-00-0000
HONEYWELL STD725-E1HS4AS-1-A-AH0-11S-B-10A0
HONEYWELL STD924-A1A-0000-HC
HONEYWELL STD725-E1AC4AS-1-A-CHS-11S-A-00A0
HONEYWELL Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL變送器STD725-E1AC4AS-1-A-CHS-11S-A-00A0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

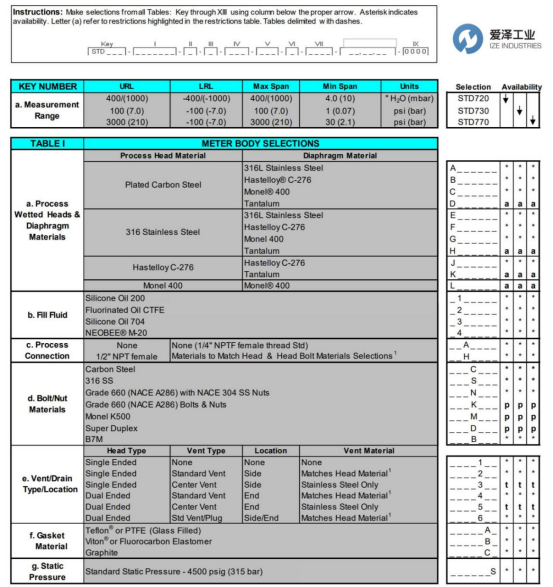

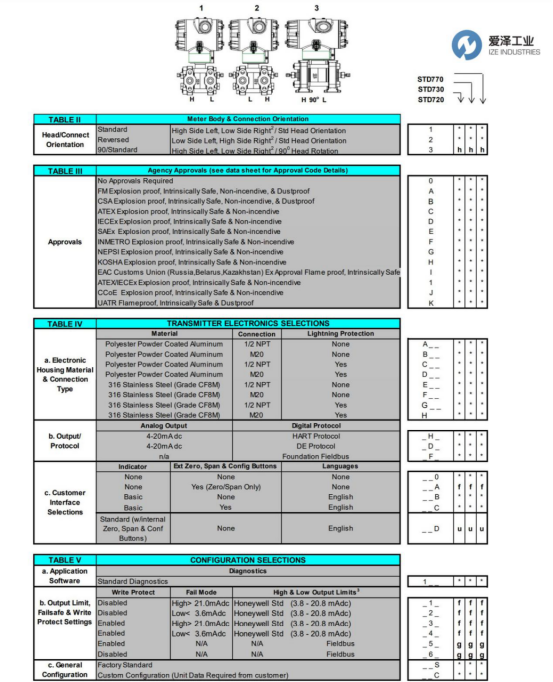

HONEYWELL變送器STD700系列STD725-E1AC4AS-1-A-CHS-11S-A-00A0技術數據及選型
