MicroE產品采用PurePrecision和VeraPath技術構建而成。MicroE品牌的微型精密光學光柵編碼器有多種外形和安裝選項，輔以增量和絕對接口，分辨率可達1.2納米。有多種旋轉和線性刻度表可供選擇，精度可達1xm。
MICROE編碼器CE系列技術參數
Specifications | |
Dimensions: | 6.1 x 6.1 x 3.9 mm (CE) |
Interfaces: | A-quad-B digital |
Resolution: | 10 μm or 1 μm (linear) |
Accuracy Class: | ± 1 μm (linear glass) |
Input Voltage: | 5 VDC ± 0.5 |
Supply Current: | 30 mA, unterminated outputs |
Max Speed: | 14 m/s |
Index: | 40 μm Window |
Outputs: | A-quad-B, Index |
Operating Environment: | Atmospheric |
Scale Pitch: | 40 μm |
Repeatability:(Hysteresis) | 1 ± 1 LSB |
Weight: | 0.37 g (CE300), 0.25 g (CE) |
Grating Compatibility: | Linear and Rotary (glass only) |
MICROE編碼器CE系列介紹
ChipEncoder是一個模塊化的數字接口SMT套件編碼器系統，將小尺寸與高分辨率結合在一起。ChipEncoder型號具有內置插值功能，可直接安裝在PC板上，通過設計集成可提供大量空間并節省成本。
ChipEncoder打破了價格性能障礙，為運動控制設計帶來了新的可能性
與PC板上的其他元件集成，實現低的總系統成本； 設計用于低成本自動化PC板組件
具有板載插補和數字輸出的高分辨率提高了運動系統的精度和穩定性
高速能力增強了運動系統性能
非接觸設計實現高可靠性
小尺寸實現了超微型、低成本的運動控制
ChipEncoder is a modular digital interface SMT kit encoder system that combines small size with high resolution. ChipEncoder models feature built-in interpolation and mount directly on your PC board, providing significant space and cost savings through design integration.
ChipEncoder breaks the price performance barrier to open new possibilities for your motion control designs
Integrates with other components on your PC board for lowest total system cost; designed for low cost automated PC board assembly
High resolution with on-board interpolation and digital output improves motion system accuracy and stability
High speed capability enhances motion system performance
Non-contact design for high reliability
Small size enables ultra-miniature, low cost motion control

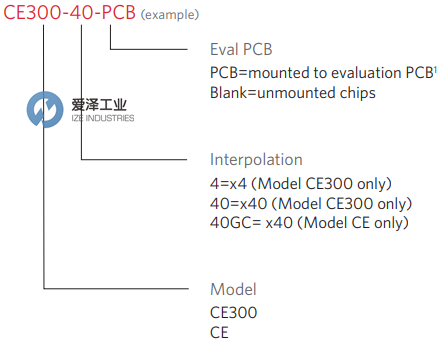

MICROE編碼器CE系列選型
MICROE編碼器CE系列其他常用型號：
MICROE CE300-4
MICROE CE300-40
MICROE CE-40GC
MICROE CE300-40-PCB
MICROE CE300
