ALL-FLO總部和生產基地位于美國，是工業市場流體處理解決方案的制造商。自 1986 年以來，ALL-FLO的氣動雙隔膜泵一直為客戶提供針對挑戰性應用的簡單解決方案。ALL-FLO的泵由廣泛的金屬和塑料材料制成，幾乎適用于任何流體輸送應用。ALL-FLO的核心市場是金屬表面處理、涂料、石化、石油和天然氣以及各種其他工業市場。
ALL-FLO隔膜泵A100-NAA-VVYV-B30技術參數
MODEL | A100-NAA-VVYV-B30 |
PRODUCT SERIES | A |
SIZE | 100 |
FLUID CONNECTION TYPE | N = NPT |
AIR SECTION | A = Aluminum |
LIQUID SECTION | A = Aluminum |
DIAPHRAGMS | V = FKM |
VALVE/BALL | V = FKM |
VALVE SEAT | Y = Nylon |
O-RINGS | V = FKM |
PORTING | B = Standard (Suction Center Front/Discharge Center Rear) |
SPECIAL OPTION (HARDWARE, MUFFLER, LUG) | 3 = Standard (Zinc Plated Steel Hardware, Plastic Muffler |
SPECIAL OPTION (OTHER) | 0 = Standard (None) |
ALL-FLO隔膜泵A100系列介紹
氣動雙隔膜泵需要至少 20 psig 的空氣才能運行，根據隔膜材料的不同，會有一些變化。 增加氣壓會導致泵的循環更快，從而導致更高的液體流速。 為了使入口氣壓不超過 120 psig，并精確控制泵，建議在進氣口使用壓力調節器。
控制泵流量的另一種方法是使用進氣閥并相應地部分打開或關閉。 當空氣閥完全處于關閉位置時，泵將停止運行。 控制泵流量的第三種方法是使用液體排放閥。 關閉液體排放閥將導致流量下降，因?yàn)楸脤⒃谳^高的排放壓力下運行。
還可以使用進氣的電磁閥控制以便于遠程操作。 建議使用三通電磁閥，以便讓空氣在電磁閥和泵之間“排出”。
請勿在泵的吸入側使用閥門進行流量控制。 （關閉或部分關閉液體吸入閥會限制吸入管線，并可能對隔膜造成損壞。）可以使用吸入過濾器來減少或消除較大的固體，但需要進行日常維護，以防止吸入受到限制。
The Air-Operated Double Diaphragm Pump requires a minimum of 20 psig of air to operate, with some variation according to diaphragm material. Increasing the air pressure results in a more rapid cycling of the pump and thus a higher liquid flow rate. In order to not exceed 120 psig of inlet air pressure, and for accurate control of the pump, it is suggested to use a pressure regulator on the air inlet.
An alternate means of controlling the flow-rate of the pump is to use an inlet air valve and partially open or close accordingly. When the air valve is completely in the closed position, the pump will cease to operate. A third method of controlling the flow rate of the pump is to use a liquid discharge valve. Closing the liquid discharge valve will cause a decrease in the flow rate since the pump will operate against a higher discharge pressure.
Solenoid control of the inlet air may also be used in order to facilitate remote operation. A three way solenoid valve is recommended, in order to allow the air to “bleed off” between the solenoid and the pump.
Do not use valves for flow control on the suction side of the pump. (Closing or partially closing a liquid suction valve restrict the suction line and may cause damage to the diaphragms.) Suction strainers may be employed to reduce or eliminate larger solids, but routine maintenance is necessary in order to prevent a restriction on the suction.

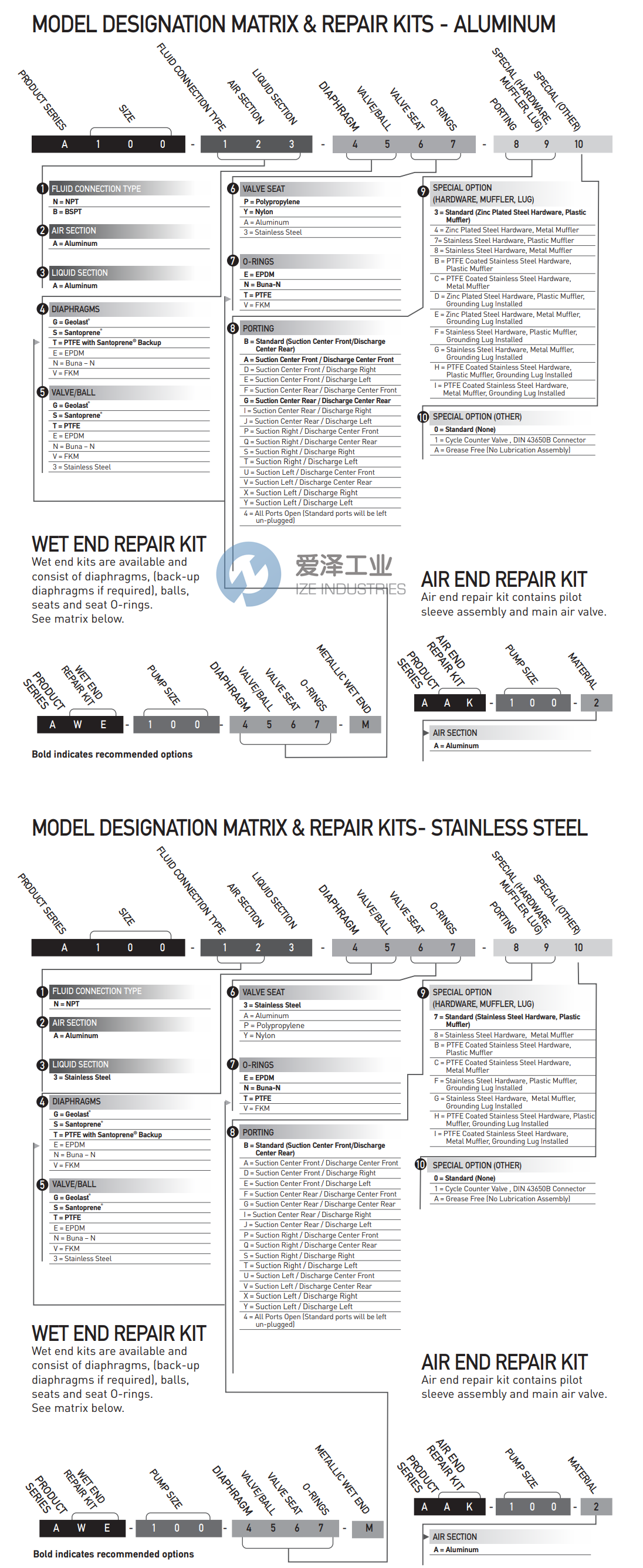

ALL-FLO隔膜泵A100系列選型
ALL-FLO隔膜泵A100系列其他常用型號：
ALL-FLO A100-FPP-SSPE-S70
ALL-FLO A100-FPP-TTPT-S70
ALL-FLO A100-BAA-SSPE-000
ALL-FLO A100-NAA-TTYT-B30
ALL-FLO A100-NAA-GTPN-B30
ALL-FLO A100-BAA-SSPE-B30
ALL-FLO A100-CPP-TTPT-S70
ALL-FLO A100-NAA-GGPN-B30
ALL-FLO A100-NAA-SSPE-B30
ALL-FLO A100-BAA-VVYV-B30
ALL-FLO A100-BAA-SSPE-BD0
ALL-FLO A100-NAA-VVYV-B30
ALL-FLO DOUBLE-DIAPHRAGM PUMPS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ALL-FLO隔膜泵A100-NAA-VVYV-B30的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ALL-FLO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ALL-FLO隔膜泵A100系列A100-NAA-VVYV-B30技術參數及選型
