OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VBSO-DE系列技術參數
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Weight | 1.4 kg (3.1 lbs) |
Manifold material | Aluminium |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Relief setting: | at least 1.3 times the highest expected load. |
REXROTH OIL CONTROL閥VBSO-DE系列介紹
它通過調節執行器通過端口C1和C2的流入和流出來提供負載的靜態和動態控制。該閥塊包括2個部分，每個部分由一個止回閥和一個在相反管路中的壓力輔助的溢流閥先導閥組成：止回閥部分允許自由流入執行機構，然后保持負載反向運動。 通過在管路兩端施加先導壓力，溢流閥的壓力設定會按規定比例成比例減小，直到打開并允許可逆流。V1或V2處的背壓會加到所有功能的壓力設置中。
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections,each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Back-pressure at V1 or V2 is additive to the pressure setting in all functions.

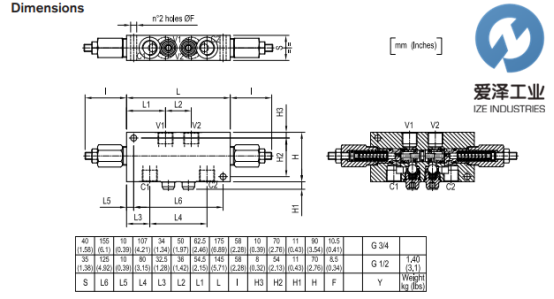

REXROTH OIL CONTROL閥VBSO-DE系列技術尺寸圖

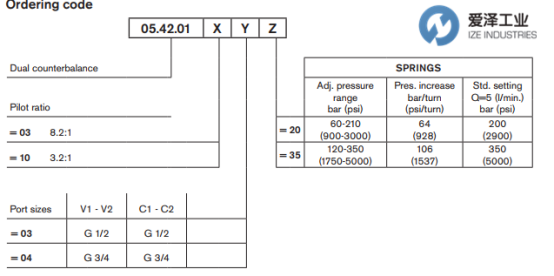

REXROTH OIL CONTROL閥VBSO-DE系列選型介紹
REXROTH OIL CONTROL閥VBSO-DE系列其他常用型號：
REXROTH OIL CONTROL 054201030320000 R930001758
REXROTH OIL CONTROL 05420103033500A R930001761
REXROTH OIL CONTROL 054201030420000 R930001771
REXROTH OIL CONTROL 05420103043500A R930001773
REXROTH OIL CONTROL 054201100320000 R930005704
REXROTH OIL CONTROL 05420110033500A R930001776
REXROTH OIL CONTROL 054201100420000 R930000981
REXROTH OIL CONTROL 05420110043500A R930001781
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
