德國賀德克HYDAC Technology GmbH 專業生產用于流體過濾技術、液壓控制技術、電子測量技術的元件和裝置，是過濾器、蓄能器、液壓閥、電子產品、管夾、電磁鐵、液壓系統總成等產品的液壓件制造商。
HYDAC流量變送器EVS3110系列技術數據
Technical data: | |
Input data | |
Measuring ranges 1) and operating pressure | 1.2 .. ?20.0 l/min 400 bar |
Housing material | Stainless steel |
Output data | |
Output signal, permitted load resistance | 4 .. 20 mA, 2-conductor |
Accuracy | ≤ 2 % of the actual value |
Environmental conditions | |
Compensated temperature range | -20 .. +70 °C |
Operating temperature range | -20 .. +70 °C |
Storage temperature range | -40 .. +100 °C |
Fluid temperature range | -20 .. +90 °C |
mark | EN 61000-6-1 / 2 / 3 / 4 |
Protection class acc. to DIN EN 60529 2) | IP 65 (Binder male connector 714 M18) |
Other data | |
Measuring medium 3) | Water-based media |
Viscosity range | 1 .. 100 cSt |
Calibration viscosity | 5 cSt |
Supply voltage | 10 .. 32 V DC |
Residual ripple of supply voltage | ≤ 5 % |
Note: 1) Other measuring ranges on request. | |
HYDAC流量變送器EVS3110系列介紹及選型
The flow rate transmitters of the EVS-3110 series (stainless steel series) are specially conceived for utilisation in hydraulic and other fluid technology plants. They operate in accordance with the turbine principle, which means that the rpm of an impeller wheel rotating in the flow of the media is recorded and converted into a 4 ... 20 mA analogue signal. For this the EVS 3110 stainless steel series is generally equipped with a hard metal bearing of the impeller wheel and can also be used in pulsating, dynamic media flows thanks to the resulting enhanced robustness. Two additional G1/4 threaded bore holes in the turbine housing provide the flow rate transmitter with additional connection options, e.g. for temperature and pressure sensors.
The flow rate transmitters of the EVS 3110-H series with HSI sensor detection were specially developed for use in conjunction with the HYDAC measurement devices HMG 500, HMG 510, HMG 3000 and CMU 1000. For data transmission purposes, the EVS 3110-H devices are equipped with an HSI interface (HYDAC Sensor Interface). Thanks to this, the HSI sensors are recognised completely automatically by the HYDAC measurement devices listed above and all necessary basic device settings are then immediately undertaken automatically.
Pressure-resistant up to 400 bar (depending on the version)
Viscosities from 1 ... 100 cSt
Output signal 4 ... 20 mA
Additional connection of temperature and/or pressure sensors possible
EVS-3110 系列（不銹鋼系列）的流量變送器專門設計用于液壓和其他流體技術工廠。它們按照渦輪原理運行，這意味著在介質流中旋轉的葉輪的轉速被記錄并轉換為 4 ... 20 mA 模擬信號。為此，EVS 3110 不銹鋼系列通常配備葉輪的硬金屬軸承，由于增強的堅固性，也可用于脈動的動態介質流。渦輪機外殼中的兩個額外 G1/4 螺紋鉆孔為流量變送器提供了額外的連接選項，例如：用于溫度和壓力傳感器。
帶有 HSI 傳感器檢測功能的 EVS 3110-H 系列流量變送器專為與 HYDAC 測量設備 HMG 500、HMG 510、HMG 3000 和 CMU 1000 結合使用而開發。出于數據傳輸目的，EVS 3110-H 設備配備HSI接口（HYDAC Sensor Interface）。由于這一點，HSI傳感器被上面列出的 HYDAC 測量設備完全自動識別，然后立即自動進行所有必要的基本設備設置。
耐壓高達 400 bar（取決于版本）
粘度從 1 ... 100 cSt
輸出信號 4 ... 20 mA
可以額外連接溫度和/或壓力傳感器

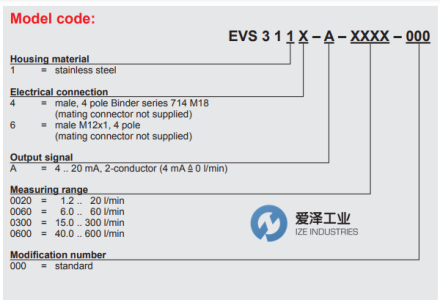

HYDAC流量變送器EVS3110系列其他型號列舉：
HYDAC EVS 3116-A-0020-000
HYDAC EVS 3116-A-0060-000
HYDAC EVS 3116-A-0300-000
HYDAC EVS 3116-A-0600-000
