BL AUTOTEC作為阪東化學集團的子公司，成立于1987年。致力于工業機器人周邊裝置的研發生產，同時還研發生產力傳感器，末端執行器（End Effector)自動更換裝置（行業簡稱工具盤，或換槍盤）等。
BL AUTOTEC產品有：工具盤，電動換槍盤，雙連接器，旋轉連接器，誤差修正裝置，力矩傳感器等。
BL AUTOTEC工具盤QCP-100A-T-J16A-XXXB技術參數
QCP-100A-T |
J16A-Electrical signals 5AX16*3*7 |
XXXB-No option |
BL AUTOTEC工具盤QCP-100A系列介紹
The BL QUICK-CHANGE Model QCP-100 is an automatic tool changer used in press handling applications for switching part-adsorption end-effectors. It is easy to set up ID confirmation on the Tool plate side, and the block itself is equipped with a protective cover. An electrical signal contact block without a connector on the tool side is available as an option.
Master plate Attachments
?6 bolts（M8×55）
?1 locating pin
※Seal plate, O-ring and screws are pre-assembled.
Features of QCP-100A
Body designed specially for press applications
Both sides of the Tool plate are cut, which allows it to be placed in an upright position, requiring less space for hand installation.
Utilities specially considered for press applications
Eight pneumatic vacuum ports are included on standard equipment, and the QCP-100 can be optionally equipped with up to 16 ports. The Tool plate has an optional electrical signal block contact without a connector (R16A/B). Directly-soldered hard-wiring makes a plug unnecessary, so it cannot be damaged when hands are exchanged. It is easy to assign ID discrimination in the hard-wiring section, and the block itself is protected by a metal cover.
Capability to assign power signals to the lock/unlock sensor
from the electrical signal contact block
Two types of power signals may be assigned to the lock/unlock sensor (optional) from the electrical signal contact block.
Superior fail-safe locking mechanism
BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master plate and Tool plate to uncouple if the air pressure is shut off.
BL QUICK-CHANGE 型號 QCP-100 是一款自動換刀裝置，用于沖壓處理應用，用于切換零件吸附末端執行器。 在工具板一側很容易設置ID確認，并且塊本身配備有保護蓋。 工具側不帶連接器的電信號接觸塊可作為選件提供。
主板附件
?6個螺栓（M8×55）
?定位銷1個
※密封板、O型圈和螺絲已預先組裝。
QCP-100A的特點
專為沖壓應用而設計的機身
工具板兩側均經過切割，可直立放置，減少手動安裝空間。
專門為新聞應用考慮的實用程序
標準設備上包含8個氣動真空端口，QCP-100 可選擇配備多達16個端口。 工具板有一個可選的電氣信號塊觸點，不帶連接器 (R16A/B)。 直接焊接硬接線，無需插頭，換手時也不會損壞。 在硬接線部分很容易分配 ID 辨別，并且塊本身由金屬蓋保護。
能夠?qū)㈦娫葱盘柗峙浣o鎖定/解鎖傳感器
來自電信號接觸塊
可以將兩種類型的電源信號從電信號分配給鎖定/解鎖傳感器（可選）。
卓越的故障安全鎖定機制
BL 獨特的鎖定/解鎖機制包含機械故障安全功能，如果氣壓關閉，主板和工具板不會脫開。

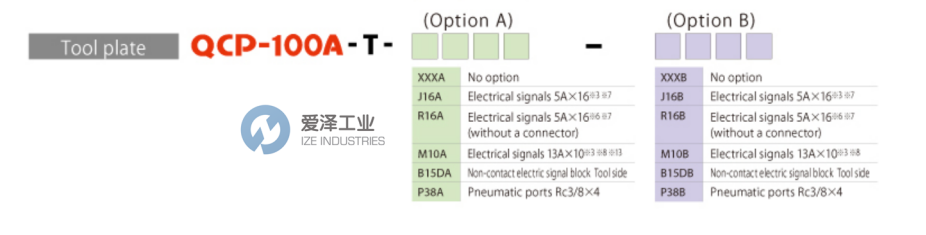

BL AUTOTEC工具盤QCP-100A系列選型
BL AUTOTEC工具盤QCP-100A系列其他常用型號：
BL AUTOTEC QCP-100-M-L16A
BL AUTOTEC QCP-100-T-L16A
BL AUTOTEC QCP-100A-T-J16A-P38B
BL AUTOTEC QCP-100A-M-J16A-XXXB-SX
BL AUTOTEC QCP-100A-T-J16A-XXXB
