REXROTH傳感器KMB 090 05 3A30-15 R917008078技術參數
Type | KMB - Force measurement pin |
Load range | 090 - ±90 kN |
Supply voltage | 05 - 5 ±0.5 V |
Cable versions | 3 - Cable with protective metal sheath |
Plug | A - AMP plug, 3-pin |
Series | 30 |
Cable length | 15 - 1500 mm |
REXROTH傳感器KMB系列介紹
力傳感器被構造為軸承座。 軸承位置處會產生剪切應力，可將其分析為磁彈性效應。
在空載狀態下，由于初級線圈，磁極之間形成對稱磁場。 如果引入拉力或壓力，原始各向同性材料的磁性就會發生變化。 結果磁場變得不對稱。 這導致次級磁極之間產生磁勢差。 這導致磁通量通過次級電路，從而在次級線圈中感應出電壓。 該電壓與施加的力成正比。 它在集成評估電路中被放大和整流。
傳感器提供比例電壓（電源電壓的 25% 至 75%）。 它可用于各種測量范圍和電纜版本。 該傳感器是電液懸掛控制 (EHC) 的典型組成部分。 該傳感器旨在用于農業技術。
特征
? 力傳感器符合 ISO 730-1 后置三點連桿類別 3
? 采用磁彈性測量原理的傳感器元件
? 集成電子器件
? 輸出信號成比例且與力成正比
? 零點和靈敏度校準
The force sensor is constructed as a bearing block. Shear stress arises at the bearing position which is analyzed as a magneto-elastic effect.
In the unloaded state a symmetrical magnetic field forms between the poles due to the primary coil. If tensile or compressive forces are introduced, the magnetic properties of the originally isotropic material change. The magnetic field becomes asymmetric as a result. This leads to a magnetic potential difference between the secondary poles. This causes a magnetic flux through the secondary circuit so that a voltage is induced in the secondary coils. This voltage is proportional to the force that is exerted. It is amplified an rectified in an integrated evaluation circuit.
The sensor provides a ratiometric voltage (25 % to 75 % of the supply voltage). It is available for various measuring ranges and versions of cable. This sensor is a typical integral part of electro-hydraulic hitch control (EHC). This sensor is intended for being used in agricultural technology.
Features
? Force sensor according to category 3 of ISO 730-1 rear-mounted three-point linkage
? Sensor element with magneto-elastic measurement principle
? Integrated electronics
? Output signal ratiometric and proportional to the force
? Zero point and sensitivity are calibrated

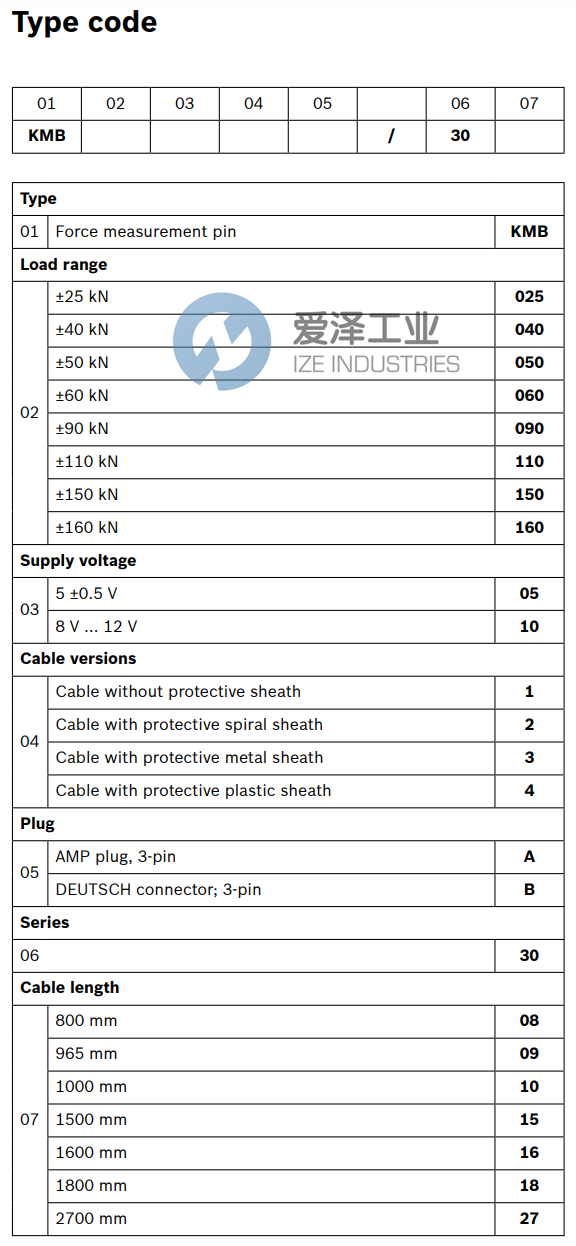

REXROTH傳感器KMB系列選型
REXROTH傳感器KMB系列其他常用型號：
REXROTH KMB 025 05 1A/30–15 R917007592
REXROTH KMB 025 05 4A/30–08 R917008079
REXROTH KMB 060 10 4A/30–18 R917000181
REXROTH KMB 090 10 1A/30–15 R917000168
REXROTH KMB 090 10 1A/30–15 R917000171
REXROTH KMB 090 10 2A/30–27 R917001969
REXROTH KMB 090 05 3A/30–15 R917008078
REXROTH KMB 090 10 3A/30–15 R917000163
REXROTH KMB 090 05 4A/30–18 R917008061
REXROTH KMB 090 10 4A/30–15 R917000172
REXROTH KMB 090 10 4A/30–18 R917000275
REXROTH KMB 110 05 1A/30–15 R917005142
REXROTH KMB 110 10 1A/30–15 R917000179
REXROTH KMB 110 10 2A/30–08 R917000162
REXROTH KMB 150 10 1A/30–15 R917A05986
