NSF Controls生產旋轉螺線管、管狀螺線管和薄型螺線管，也可為提供定制產品。擁有旋轉晶圓開關和選擇器開關系列。近年來，開發了兩種類型的燃氣截止閥、 絞盤輔助閥和電動汽車充電點鎖。
NSF電磁閥50L系列技術參數
Specifications | |
Vibration | 10g 2000 Hz |
Shock | 50g 8.5 ms |
Temperature shock | -55°C…+85°C |
Temperature range | -55°C…+80C |
Maximum coil temperature | +120°C |
Humidity | 95% @ 50°C, 48 hours |
Minimum life | 10 million steps |
Proof voltage: | AWG 19-23 1000 Vrms |
Weight Uni-directional | 400g |
Bi-directional | 680g |
Mechanism torque | T=12 100mNm |
Angular Tolerance | ±1° |
non accumulative |
NSF電磁閥50L系列介紹
步進電磁閥有 12、18、24 和 36 位設計，具有單向和雙向選項。
高扭矩尺寸比，其性能的關鍵是獨特的齒式離合器驅動裝置。 它具有積極作用的自鎖驅動裝置，有助于提供更大的可用扭矩輸出。
對于摩擦負載，離合器在驅動慣性負載時提供可靠的抓地力（無滑動）。該驅動器還充當內置機電離合器制動器，以消除步驟結束時過度驅動的自然趨勢。
通過采用彈簧加載的球制動器，扭矩進一步增加，精確度為 ±1°，非累積。 這種精度提供了內部傾斜滾珠座圈的對準，確保高啟動扭矩。
Stepping Solenoids are available in 12, 18, 24 and 36 position designs, with uni-directional and bi-directional options.
Known for their high torque-to-size ratio, the key to their superior performance is the exclusive tooth clutch drive. It has a positive action, self-locking drive that contributes to a greater usable torque output.
For friction loads the clutch provides a positive grip (no slip) when driving intertia loads. The drive also acts as a built-in electro-mechanical clutch brake to eliminate the natural tendency of overdriving at the end of step.
Torque is further increased by the incorporation of a spring loaded ball detent, accurate to ±1°, nonaccumulative. This accuracy provides near perfect alignment of the internal inclined ball race assuring consistently high starting torque.

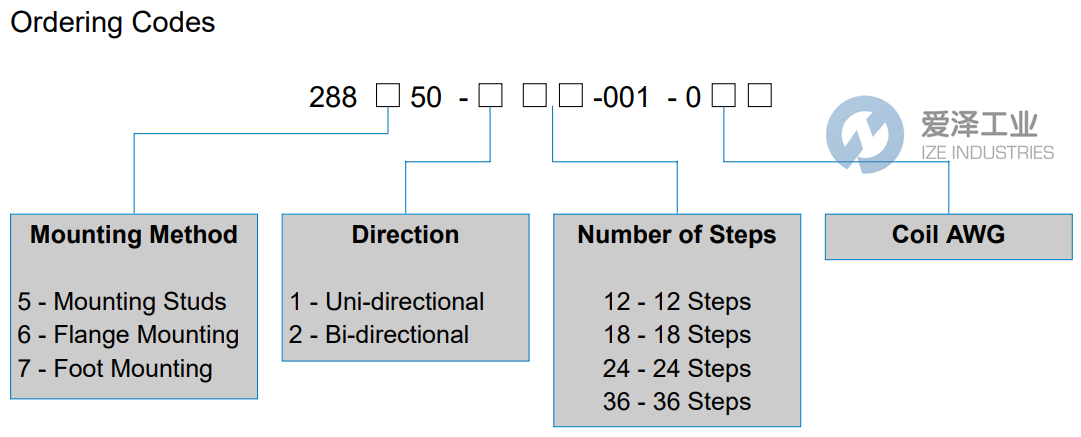

NSF電磁閥50L系列選型
NSF電磁閥50L系列其他常用型號：
NSF 288650-224-001-024
NSF 288550-118-001-024
NSF 288550-218-001-021
NSF 288550-236-003-026
NSF Stepping Solenoid NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NSF電磁閥288550-236-003-026的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
