ANDERSON-NEGELE是一家專門開發和生產衛生應用傳感器和測量設備的全球性公司，為客戶的流程提供解決方案。
ANDERSON-NEGELE的產品系列包括用于溫度、液位、壓力、流量、電導率和濁度測量的傳感器以及用于優化生產過程的創新解決方案。
ANDERSON-NEGELE流量計HM-E系列技術參數
Technical Specification | |
Process Connection | Tri-Clamp |
Insertion length | Stainless steel 1.4404 (316L), Ra≤0.8 μm (electropolished) |
Measuring range | 1.600…56750 l/h |
Accuracy | ±0,5% of the measuring value |
Available versions | Compact |
Temperature range process | 0…120 °C |
Temperature range CIP/SIP | 143 °C / max. 120 Min. |
Operating pressure | max. 10 bar |
Communication | Output pulses per volume |
ANDERSON-NEGELE流量計HM-E系列產品介紹
定量和灌裝應用的選擇
磁感應質量低流量計的經濟高效且可靠的替代方案
食品和飲料行業的衛生設計
緊湊的設計適合困難的安裝
由于兩部分外殼中的轉子更換方便，因此延長了使用壽命
3-A認證
Ideal for dosing and filling applications
Cost-efficient and reliable alternative to magnetic-inductive mass low meters
Hygienic design for the food and beverage industry
Compact design for difficult installations
Extended lifetime due to easy rotor exchange in the two-part housing
3-A certification

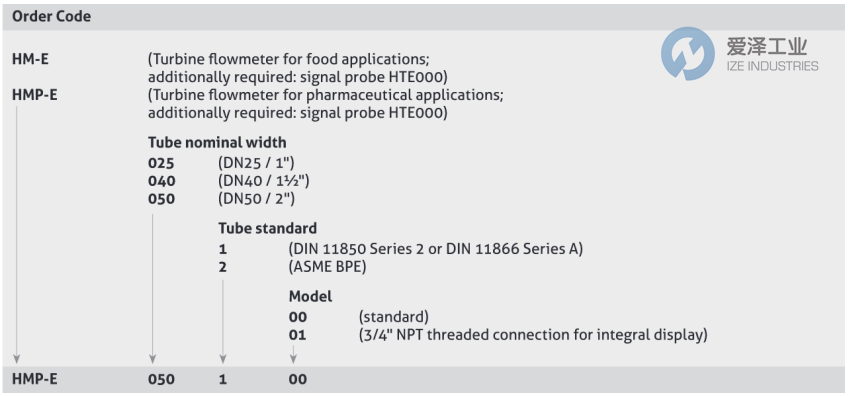

ANDERSON-NEGELE流量計HM-E系列選型
ANDERSON-NEGELE流量計HM-E系列其他常用型號：
ANDERSON-NEGELE HM-E025100
ANDERSON-NEGELE HM-E040100
ANDERSON-NEGELE HM-E050100
ANDERSON-NEGELE HM-E025200
ANDERSON-NEGELE HM-E040200
ANDERSON-NEGELE HM-E050200
ANDERSON-NEGELE HM-E025101
ANDERSON-NEGELE HM-E040101
ANDERSON-NEGELE HM-E050101
ANDERSON-NEGELE HM-E025201
ANDERSON-NEGELE HM-E040201
ANDERSON-NEGELE HM-E050201
ANDERSON-NEGELE HM-E040200+HTE000
ANDERSON-NEGELE FLOW METER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANDERSON-NEGELE流量計HM-E040200+HTE000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ANDERSON-NEGELE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ANDERSON-NEGELE流量計HM-E系列HM-E040200+HTE000技術參數及選型
