Gutekunst 成立于 1964 年，如今作為高品質彈簧和圓線彎線零件制造商。 Gutekunst擁有多年的經驗、合格的員工以及Gutekunst自己開發的軟件程序和選擇介質，在合適的彈簧或所需的彎絲零件的整個開發、設計和選擇過程中提供支持。
| |||
Technical Data | |||

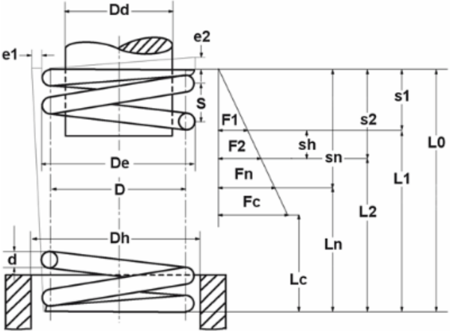

Formula symbols | Value | Unit | Description |
Material | EN 10270-3-1.4310 | - | Type of material . |
Spring ends | Closed | - | Spring ends |
F1 | - | N | prestressed spring force |
L1 | - | mm | Prestressed spring length |
s1 | - | mm | Prestressed spring deflection |
F2 | - | N | Loaded spring force |
L2 | - | mm | Loaded spring length |
s2 | - | mm | Loaded spring deflection |
d | 0.4 | mm | Wire diameter |
Di | - | mm | Inner coil diameter |
D | 5 | mm | Mean coil diameter |
De | 5.4 | mm | Outer coil diameter |
Dd | 4.1 | mm | maximum diameter of mandrel |
Dh | 6 | mm | minimum diameter of bush |
L0 | 24.7 | mm | unstressed spring length |
Lk | mm | buckling length | |
Fn | 3.956 | N | maximum force in static use |
Ln | 5.94 | mm | Minimum length in static use |
sn | 18.76 | mm | Maximum spring deflection in static use |
Fndyn | 3.835 | N | maximum force in dynamic use |
Lndyn | 6.51 | degree | Minimum length in dynamic use |
shdyn | 6.47 | mm | Maximum stroke in dynamic use |
S | 2.788 | mm | pitch of spring |
n | 8.5 | pc. | number of active coils |
nt | - | pc. | total number of coils |
R | 0.211 | N/mm | Spring rate |
Weight | 0.1638 | g | weight of one spring |
Fntol | 0.36 | N | (+/-) tolerance of maximum force in static use |
Fndtol | 0.36 | N | (+/-) tolerance of maximum dynamic force |
Detol | 0.25 | mm | (+/-) tolerances of outer Coil diameter |
L Otol | 1.41 | mm | (+/-) tolerance of unstressed spring length |
Price group | E | - | price group |
F1tol | - | N | (+/-) tolerance of prestressed spring force |
F2tol | - | N | (+/-) tolerance of loaded spring force |
