WALCHM是在線分析儀器和電子計量泵的制造商，為化學控制提供傳感器、泵和電子技術的集成。通過集成儀器、傳感器、流體處理和廣泛的遠程數據通信技術來提供創新的解決方案。
WALCHM電極WEL系列技術參數
HOUSING CODE | 1, 7, A | 2, 8, B | 3 | 4 | C, E | D, F |
Input Range | ± 1999 mVDC | ±500 mVDC | -500 to 1000 mVDC | |||
Output Range | ± 1999 mVDC | Isolated 4 to 20 mADC | ||||
Input Impedance | 1 x 1013 ohms | |||||
Output Impedance | 100 ohms | N/A | ||||
Power | ± 5 VDC (± 10%) 3 mA maximum | N/A | 12 to 30 VDC, 21 mA maximum | |||
Temperature Range | 32 to 158 °F (0 to 70 °C) | 32 to 212 °F (0 to 100 °C) | 32 to 160 °F | |||
Pressure | 0 to 100 psi (0 to 6.9 Bar) | |||||
Maximum Cable Length | 1000 feet (305 meter) | 20 feet (6 meters) | 4000 feet (1219m) at 24 VDC power, 24 AWG cable | |||
CARTRIDGE CODE | PHH | PHB | PHF | PHLI | MVF | MVR |
Range | 0 to 14 pH Standard Units | ± 2000 mV | ||||
Response | 90% in less than 5 seconds | |||||
Temperature Range | 32 to 122 °F | 32 to 212 °F | 50 to 212 °F | |||
NOTE: Electrode life is drastically reduced when used above 122 F (50 C) | ||||||
Maximum Flow Velocity | 10 ft/sec (3m/sec) | |||||
WALCHM電極WEL系列產品介紹
Walchem 的 WEL 系列電極是適用于工業應用的高性價比差分 pH 和 ORP 電極
WEL 系列采用模塊化設計，具有包含電子元件的堅固 CPVC 外殼。 無需工具，即可在數分鐘內輕松連接或更換 pH 和 ORP 柱。電極具有獨特的螺紋互鎖連接和雙 O 形環密封，確保防水貼合和固定。
可選的差分前置放大器或 4 到 20 mA 變送器，以及溫度補償元件都在外殼中，當電極需要更換時不會被丟棄。 電極由與其連接的控制器供電，因此信號始終經過前置放大，并且沒有電池會耗盡。
與外殼集成的鈦溶液接地棒可實現差分測量技術。 這導致電極壽命延長和可靠的測量、雜散電壓和電流或接地環路問題的抵抗力。
Walchem’s WEL Series electrodes are cost-effective differential pH and ORP electrodes for industrial applications
The WEL Series are modular in design with a rugged CPVC housing that contains the electronics. pH and ORP cartridges can easily be connected or replaced in minutes without tools. The cartridges feature a unique threaded interlock connection and a double o-ring seal, ensuring a watertight fit and secure seating at all times.
The optional differential preamplifier or 4 to 20 mA transmitter, and temperature compensation element are in the housing, and are not thrown away when the electrode needs replacement. The electrode is powered by the controller it is connected to, so the signal is always preamplified and there are no batteries to go dead.
A titanium solution ground rod integral to the housing enables the differential measuring technique. This results in prolonged electrode life and reliable measurement, resistance to stray voltages and currents or ground loop problems.

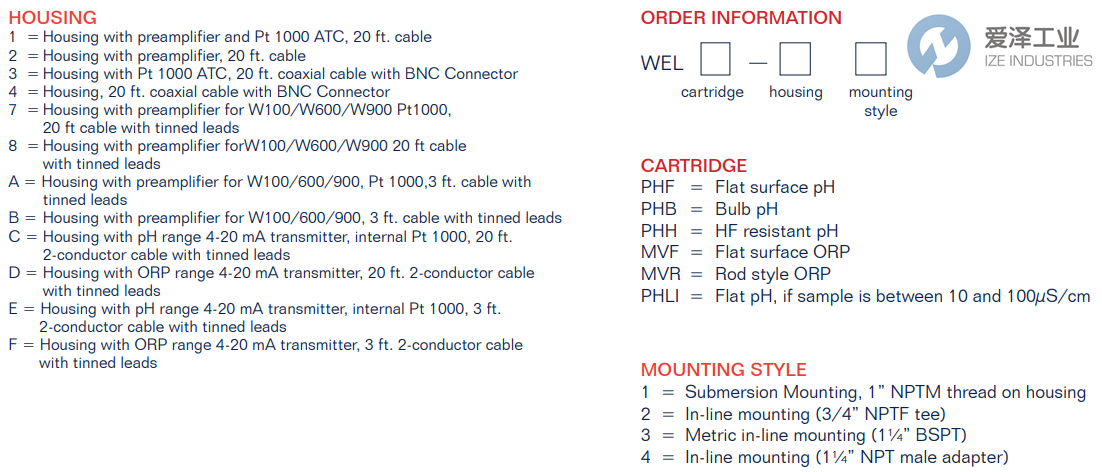

WALCHM電極WEL系列選型
WALCHM電極WEL系列其他常用型號：
WALCHM WEL-PHH-71
WALCHM WEL-MVF-F1
WALCHM WEL-PHLI-21
WALCHM WEL-MVR-B2
WALCHM WEL-PHLI-43
WALCHM WEL-PHB-41
WALCHM WEL-MVF-D2
WALCHM WEL-PHLI-72
WALCHM WEL-PHF-82
WALCHM WEL-PHF-32
WALCHM WEL-PHB-84
WALCHM WEL-MVR-NN
WALCHM WEL-PHF-NN
