OIL CONTROL成立于1974年(現被博士力士樂收購),在意大利工業領域運動控制閥移動機械市場占有很高的市場容量,且業績?cè)谄嚭凸こ虣C(jī)械行業迅速增長。今天的OIL CONTROL公司,已是移動設備與機械領域的閥門優質供應商,可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有:換向閥,止回閥,電磁閥,平衡閥,球閥,插裝閥,單向閥,溢流閥,行程閥,驅動閥,安全閥,閥組,閥塊,電磁閥線圈,流量計等等。
REXROTH OIL CONTROL閥VBSN-16A系列技術參數
Technical data |
|
Max. operating pressure bar (psi) |
350 (5000) |
Max. flow l/min. (gpm) |
200 (53) |
Max. internal leakage (*) drops/min. |
15 |
Fluid temperature range °C (°F) |
-30 to 100 (-22 to 212) |
Installation torque Nm (ft-lbs) |
108-122 (80-90) |
Weight kg (lbs) |
0.82 (1.81) |
Cavity |
CA-16A-3C |
Seal kit (**) |
code RG16A9010530100 |
Fluids |
Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Filtration |
Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Installation |
No restrictions |
Pressure setting: |
at least 1.3 times the load induced pressure. |
(*) At 70% of pressure setting |
|
(**) Only external seals for 10 valves |

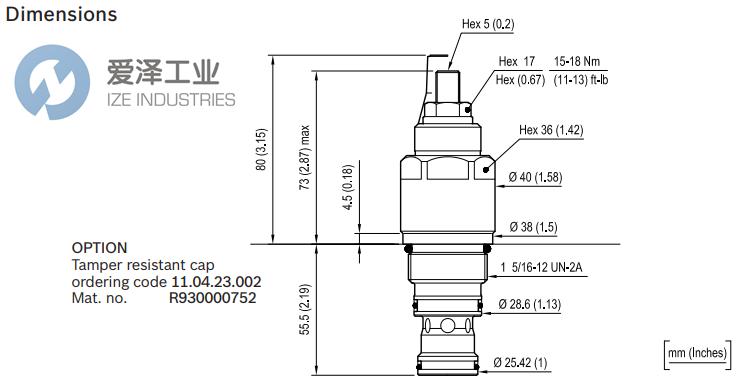

REXROTH OIL CONTROL閥VBSN-16A系列技術尺寸

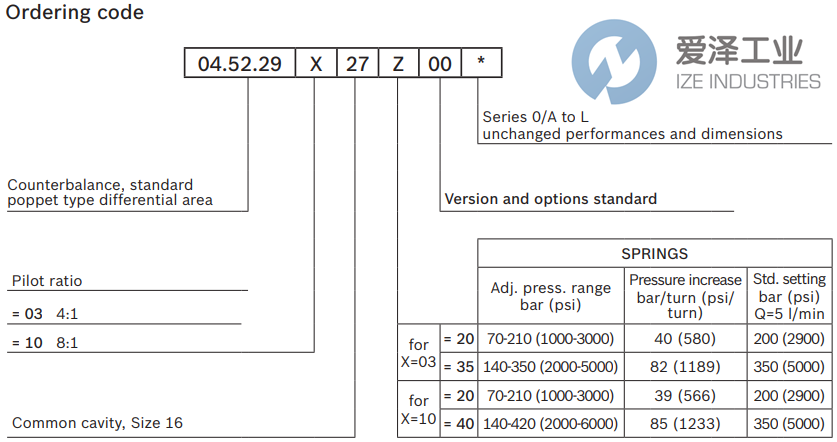

REXROTH OIL CONTROL閥VBSN-16A系列選型
REXROTH OIL CONTROL閥VBSN-16A系列其他常用型號:
REXROTH OIL CONTROL 045229032720000 R901096047
REXROTH OIL CONTROL 045229032735000 R901096048
REXROTH OIL CONTROL 045229102720000 R930000797
REXROTH OIL CONTROL 045229102740000 R901096049
REXROTH OIL CONTROL Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥045229032720000 R901096047的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥045229032720000 R901096047技術參數及選型
