ALWAYSE于1941年創立，ALWAYSE是一個萬向滾珠品牌，一直在為幾乎所有可以想象到的應用設計和制造創新的運動解決方案。
ALWAYSE萬向滾珠3322-15HD技術參數
SPECIFICATION | 332215HD |
|
Load Ball Diameter (mm) | 22.2 | |
Fixing Method | Flange | |
Max Load (Ball Up) (kg) | 80 | |
Max Load (Ball Down) (kg) | 40 | |
Load Ball Material | Stainless Steel | |
Support Ball Material | Stainless Steel | |
Unit Housing Finish | Stainless Steel | |
Product Weight (kg) | 0.1 | |

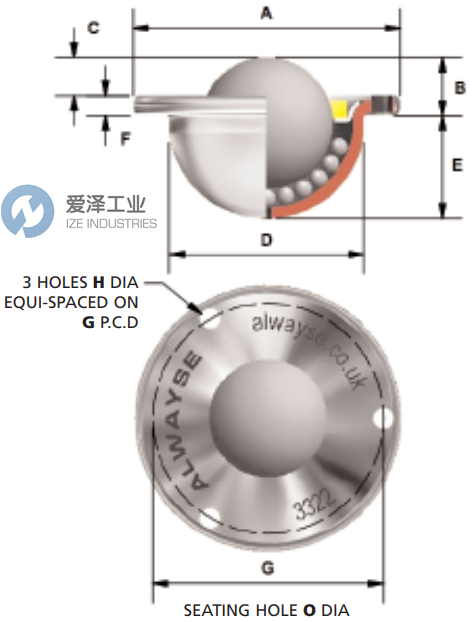

Dim. A - Max Diameter (mm) | 45 | |
Dim. B - Working ht. of Ball (mm) | 9.8+/- 0.3 | |
Dim. D - Body Diameter (mm) | 33 | |
Dim. E - Under Flange to Base (mm) | 17.9 | |
Dim. F - Flange Thickness (mm) | 3.6 | |
Dim. G - Fixing Holes PCD (mm) | 39 | |
Dim. H - Fixing Hole Size (mm) | 3.5 | |
Dim. O - Seating Hole (mm) | 34 |
ALWAYSE萬向滾珠3322HD系列介紹
非常低調的壓制鋼單元，具有大負載球暴露和高額定負載。
有羊毛氈密封和污物出口孔。
負載球直徑 - 22.2
Very low profile pressed steel unit with large load ball exposure and high load rating.
Has woollen felt seal and dirt exit hole.
Load Ball Diameter - 22.2
ALWAYSE萬向滾珠3322HD系列其他常用型號：
ALWAYSE 332213HD
ALWAYSE 332214HD
ALWAYSE 332215HD
ALWAYSE 332216HD
ALWAYSE BALL TRANSFER UNIT NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ALWAYSE萬向滾珠3322-15HD的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ALWAYSE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ALWAYSE萬向滾珠3322-15HD技術參數及介紹
