德國賀德克HYDAC Technology GmbH 專業生產用于流體過濾技術、液壓控制技術、電子測量技術的元件和裝置，是過濾器、蓄能器、液壓閥、電子產品、管夾、電磁鐵、液壓系統總成等產品的液壓件制造商。德國賀德克HYDAC產品的應用范圍十分廣泛，幾乎覆蓋各行各業，尤其在冶金工業、汽車工業、電力設備、化工、工程機械、造紙工業、造船工業以及機床制造等領域都得到廣泛應用。
HYDAC主營產品：HYDAC液壓蓄能器、HYDAC流體過濾器、HYDAC過程過濾器、HYDAC冷卻器、HYDAC電動液壓控制器/工業閥門、HYDAC壓力傳感裝置、HYDAC行程測量技術和電磁技術、HYDAC液壓缸、HYDAC泵、HYDAC固定技術、HYDAC配件、HYDAC環境監控等。

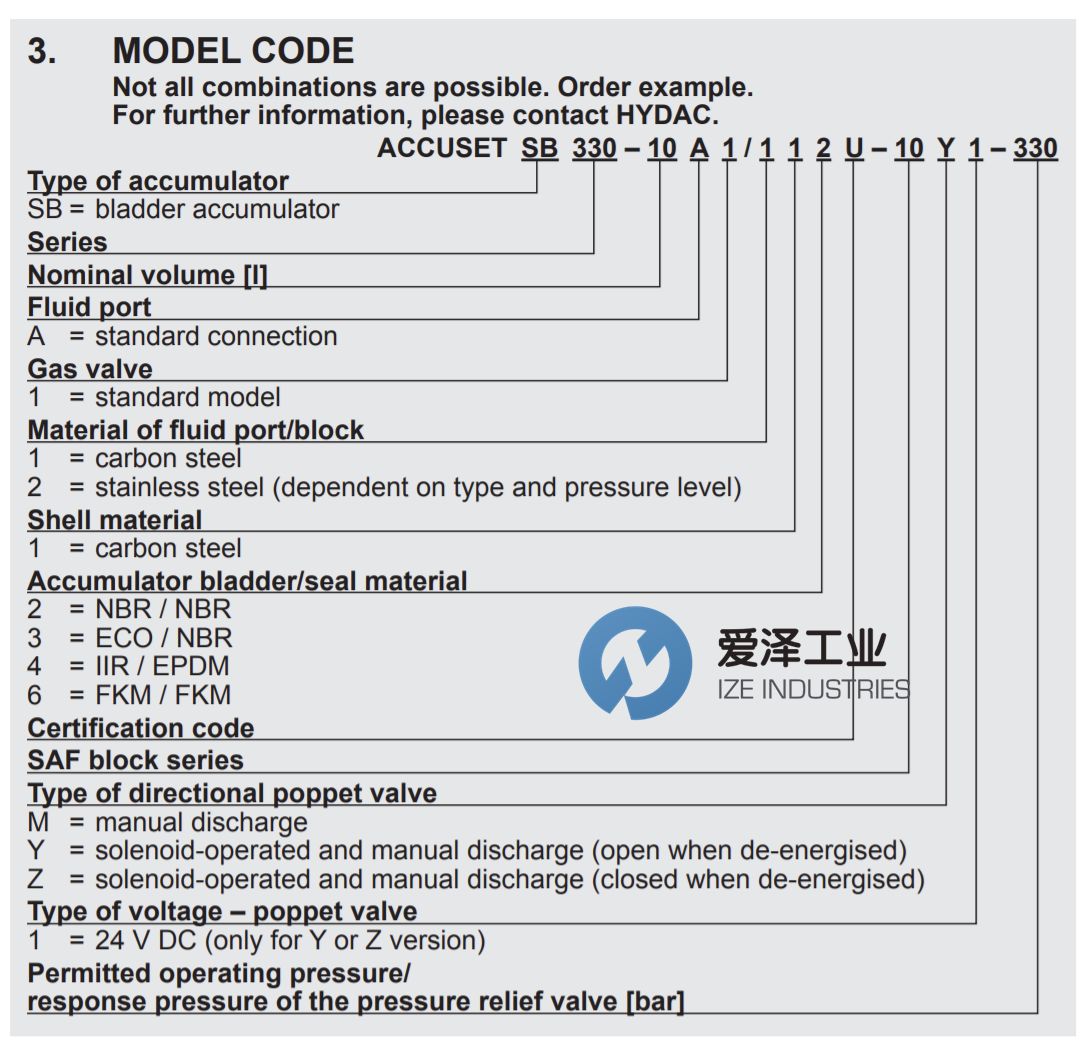

HYDAC蓄能器SB330-4А1/112А9-330А規格描述
SB = bladder accumulator |
330=Series |
4=Nominal volume [l] |
A = standard connection |
1 = standard model Material of fluid port/b |
1 = carbon steel |
1 = carbon steel |
2 = NBR / NBR |
A=Certification code |
9 |
330A=Permitted operating pressure/ response pressure of the pressure relief valve [bar] |
HYDAC蓄能器SB330系列產品簡介
The HYDAC accumulator unit consists of a bladder accumulator, a safety and shutoff block and the appropriate accumulator set. The parts are designed for optimum compatibility and form a compact, ready-to-install device.
This space-saving combination simplifies the connection of the hydraulic accumulator to the hydraulic system, reduces maintenance costs and considerably reduces the time and effort required for installation.
Advantages:
Simple and secure mounting of the hydraulic accumulator at the installation site
Connection of the hydraulic accumulator with a hydraulic system via a safety and shut-off block
Protects the hydraulic accumulator from excessive pressure
Discharge of the hydraulic accumulator to the tank via a pressure release valve
Separation of the hydraulic accumulator from the system
Two additional hydraulic connections on the shut-off block for accessories (e.g. pressure gauge)
HYDAC蓄電池單元由一個氣囊蓄電池，一個安全切斷塊和相應的蓄電池組成。 這些零件的設計旨在實現最佳兼容性，并形成緊湊的，隨時可安裝的設備。
這種節省空間的組合簡化了液壓蓄能器與液壓系統的連接，降低了維護成本，并大大減少了安裝所需的時間和精力。
優點：
在安裝現場將液壓蓄能器簡單安全地安裝
液壓蓄能器通過安全切斷塊與液壓系統的連接
保護液壓蓄能器免受過大壓力
液壓蓄能器通過泄壓閥排放到油箱
液壓蓄能器與系統的分離
附件的關閉塊上的兩個附加液壓接口（例如壓力表）
選型參考
HYDAC蓄能器SB330系列其他常用型號：
HYDAC SB330-1A1/112U-10M-330 3033471
HYDAC SB330-1A1/112U-10Y1-330 3033472
HYDAC SB330-2.5A1/112U-10M-330 3033473
HYDAC SB330-2.5A1/112U-10Y1-330 3033474
HYDAC SB330-4A1/112U-10M-330 3033475
HYDAC SB330-4A1/112U-10Y1-330 3033476
HYDAC SB330-6A1/112U-10M-330 3033477
HYDAC SB330-6A1/112U-10Y1-330 3033478
HYDAC SB330-10A1/112U-10M-330 3033479
HYDAC SB330-10A1/112U-10Y1-330 3033480
HYDAC SB330-13A1/112U-10M-330 3033481
HYDAC SB330-13A1/112U-10Y1-330 3033482
HYDAC SB330-13A1/112U-20M-330 3033483
HYDAC SB330-13A1/112U-20Y1-330 3033484
HYDAC SB330-20A1/112U-20M-330 3033485
HYDAC SB330-20A1/112U-20Y1-330 3033486
HYDAC SB330-24A1/112U-20M-330 3033487
HYDAC SB330-24A1/112U-20Y1-330 3033488
HYDAC SB330-32A1/112U-20M-330 3033489
HYDAC SB330-32A1/112U-20Y1-330 3033490
HYDAC SB330-32A1/112U-32M-330 3033491
HYDAC SB330-32A1/112U-32Y1-330 3033492
HYDAC SB330-50A1/112U-20M-330 3033493
HYDAC SB330-50A1/112U-20Y1-330 3033494
HYDAC SB330-50A1/112U-32M-330 3033495
HYDAC SB330-50A1/112U-32Y1-330 3033496
HYDAC Accumulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC蓄能器SB330-4А1/112А9-330А的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@HYDAC-industries.com / browse our website:www.HYDAC-industries.com.
HYDAC蓄能器SB330-4А1/112А9-330А產品參數
