RINCON POWER是設計和制造密封大功率開關設備（包括手動電池斷開器和接觸器）的供應商。
RINCON POWER電池開關HVBD系列技術參數
SPECIFICATIONS | |
Contact Arrangement | Form X, SPST |
Operating Voltage | Up to1,000VDC (no switching under load) |
Dielectric Withstand Voltage | 5,000VDC, 1 minute |
Continuous Current | 300A, 400A, or 600A continuous |
Make and Break2 (400A @ 24VDC) | 5,000 cycles |
Voltage Drop (Max at nominal load) | 40mV |
Min Insulation Resistance | 100Mohm |
Shock, 1/2 Sine, 11ms | 25G |
Vibration, Sinusoidal (10-500Hz Peak) | 4G |
Vibration, Sinusoidal (500Hz-2000Hz Peak) | 20G |
Operating Temperature3 | -55?C to 85?C |
Ingress Protection | Exceeds IP69, (Hermetically sealed) |
Weight | 425g |
Case Material | PA GF |
Switch Lever Material | PA GF |
Mounting | 100mm | C:C, 2X M8 |
Mounting Position | Any |
Auxiliary Contact (SPDT)– Continuous Current | 3A |
RINCON POWER電池開關HVBD系列介紹
HVBD 是電池斷開技術的新水平
? 堅固的金屬陶瓷氣密密封
? 行業優質的介質耐壓
? 高溫性能
? 超低接觸電阻在整個生命周期
? 為惡劣環境做好準備
? 專為符合 OSHA 標準的上鎖/掛牌 (LOTO) 而設計
? GIGAVAC1 HBD 系列電池斷路開關的直接替代品
? 可選的集成輔助觸點
HVBD is the next level in battery disconnect technology
? Robust metal-ceramic hermetic seal
? Industry leading dielectric withstand voltage
? High temperature performance
? Ultra-low contact resistance over life
? Ready for harsh environments
? Designed for OSHA compliant lockout/tagout (LOTO)
? Drop-in replacement for GIGAVAC1 HBD Series battery disconnect switches
? Optional integrated auxiliary contacts

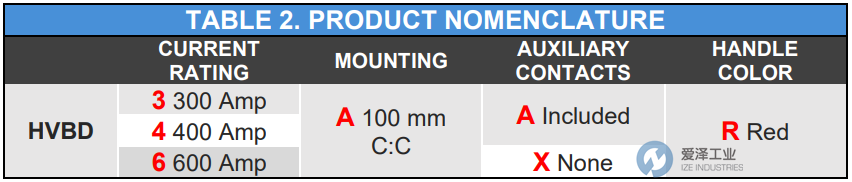

RINCON POWER電池開關HVBD系列選型
RINCON POWER電池開關HVBD系列其他常用型號：
RINCON POWER HVBD4AXR
RINCON POWER HVBD4AAR
RINCON POWER HVBD6AAR
RINCON POWER HVBD6AXR
RINCON POWER HVBD3AAR
RINCON POWER HVBD3AXR
RINCON POWER Battery Disconnect NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RINCON POWER電池開關HVBD4AXR的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RINCON POWER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
