JOHNSON FLUITEN成立約二十年，專注于精密旋轉接頭，用于旋轉部件輸送水、空氣、油和冷卻劑。其產品線包括G型，R型和Z型旋轉接頭。

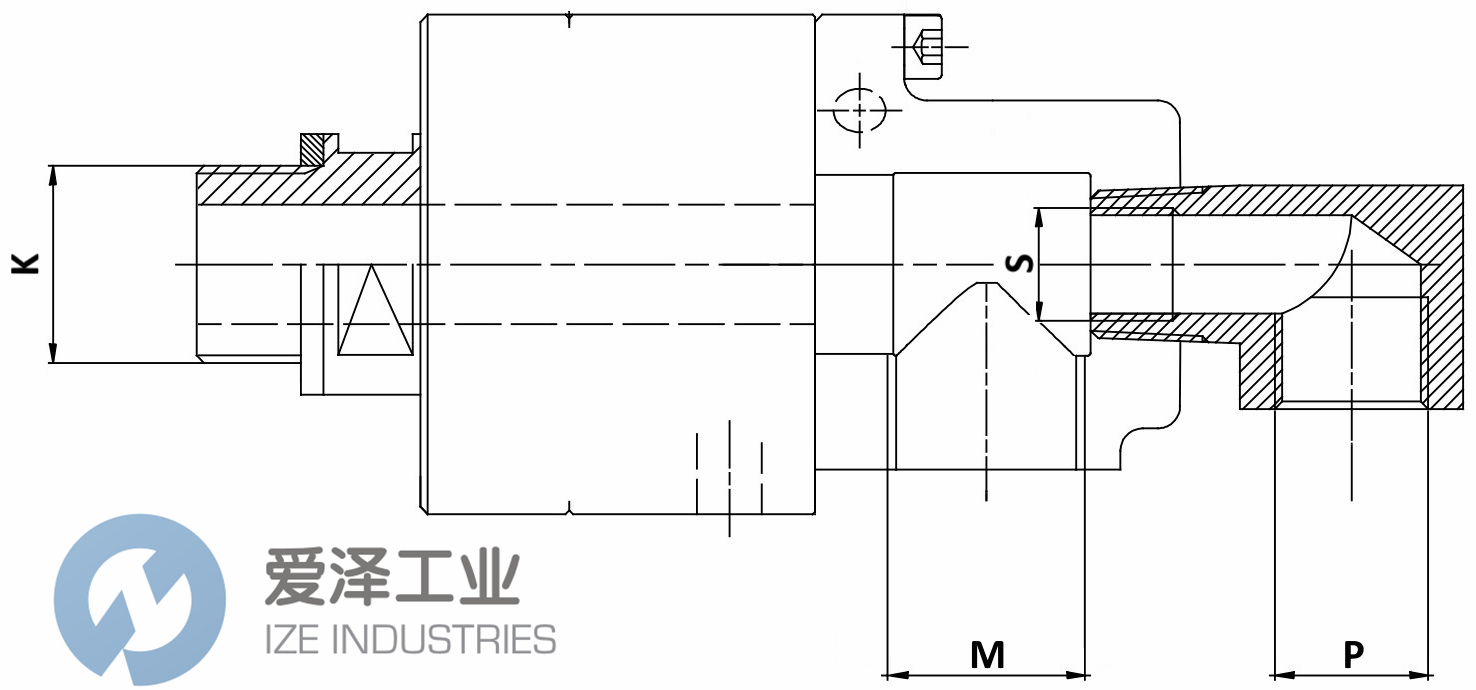

JOHNSON FLUITEN旋轉接頭R064019646技術參數
| |
Flow | Dual Passage Rotating Syphon |
Rotor (K) | Quick Release (KJ) |
Inlet M | G 1-1/2" RH (ISO 228-1) |
RPM (max) | 750 |
Seal Package | B3 |
Fluid | Water, Glycol |
Joint Size | 2-1/2" |
Outlet P | G 1-1/2" RH (ISO 228-1) |
Syphon S | 45 MM |
Joint S type | ROTATING |
Pressure | 25 |
Temperature (min) | -19°C |
Temperature (max) | 120°C |
JOHNSON FLUITEN旋轉接頭R系列介紹
帶 B3 密封件的 R 系列專為廣泛的應用而設計。材料是石墨對碳化硅。R 接頭非常適合水、液壓油、空氣和乙二醇。密封件經過微研磨以獲得更佳的性能。R 接頭的尺寸從 9 毫米到 150 毫米不等。在單通道，雙通道，帶螺紋和法蘭連接。優質材料、加工精度和組裝過程中對細節的關注使 R-union 成為各種應用的選擇。所有工會都經過壓力測試。R 接頭的最高溫度為 120 °C。無需從機器上拆卸接頭即可輕松修復密封包，減少停機時間。
The R line with B3 seals is designed for a large range of application. The materials are graphite against SIC. The R-union is perfect for water, hydraulic oil, air and glycol. The seals are micro lapped for optimal performance. The R union is available in dimensions from 9mm to 150mm. In single passage, double passage, with treaded and flanged connections. The premium materials, the machining precision and the attention to detail during assembly make the R-union perfect for a large range of applications. All unions are pressure tested. The maximum temperature for the R union is 120 °C. Repair of the seal package is easily done without dismounting the union from the machine reducing down-time to help you produce more
JOHNSON FLUITEN旋轉接頭R系列其他常用型號：
JOHNSON FLUITEN R064024421
JOHNSON FLUITEN R064022872
JOHNSON FLUITEN R064024422
JOHNSON FLUITEN R064022873
JOHNSON FLUITEN R064019629
JOHNSON FLUITEN R064025542
JOHNSON FLUITEN R064019646
JOHNSON FLUITEN R076022913
JOHNSON FLUITEN R076022912
JOHNSON FLUITEN R076021327
JOHNSON FLUITEN R089025531
JOHNSON FLUITEN R089025541
JOHNSON FLUITEN R089019645
JOHNSON FLUITEN R102022561
JOHNSON FLUITEN ROTARY UNIONS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOHNSON FLUITEN旋轉接頭R064019646的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOHNSON FLUITEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
JOHNSON FLUITEN旋轉接頭R064019646技術參數及介紹
