VIVOIL泵產品介紹
Vivoil 分流器、液壓馬達和液壓泵及其附件是生產農業、工業、土方和汽車機械的非常重要的部件。
Vivoil flow dividers, hydraulic motors and hydraulic pumps and their accessories are very important components for the production of agricultural, industrial, earth-moving and automotive machines.
農業機械中使用的 Vivoil 液壓元件分配正確的油流，使農業和林業中的典型工作操作精確、平穩和安全：大型負載的運輸和移動、修剪、農產品和植物的收獲。
Vivoil hydraulic components used in agricultural machinery distribute the right flow of oil to make the typical work operations in agriculture and forestry precise, smooth, and safe: transport and movement of large loads, pruning, harvesting of agricultural products and plants.
工業機器的部件經久耐用，以在運輸和移動大型負載、加工材料、生產半成品和替代能源的操作過程中盡可能減少維護干預和機器停機時間。
Components for industrial machines last over time, to reduce maintenance interventions and machine downtime as much as possible during the operations of transporting and moving large loads, converting materials, producing semi-finished products and alternative energy.
汽車和運輸行業中使用的部件有助于機器和車輛的精確性和平穩運動。
Components used in the automotive and transport industries contribute to machine and vehicles’ precision and smooth movement.
用于土方機械的 Vivoil 液壓元件有助于車輛駕駛?cè)藛T的安全，并有助于施工現場使用的機器在土方移動、拆除、平整和裝載作業期間的連續運行。
Vivoil hydraulic components for earth-moving machinery contribute to the safety of those who drive the vehicle, and contribute to the continuous operation of the machines used on construction sites during earth-moving, removal, leveling and loading operations.
單向液壓泵 / Unidirectional Hydraulic Pumps
鋁制單向液壓泵，帶外齒輪。
此類別中的一些泵也可提供鑄鐵法蘭。
旋轉方向為順時針或逆時針，無需添加任何部件即可反轉，可優化存儲空間，使泵適應需要。
這些產品的排量在 0.16 cm3/rev 和 86.87 cm3/rev 之間變化，轉速高達 9000 rpm，最大壓力達到 320 bar。
根據類型的不同，單向液壓泵可選：
集成外置軸承
防氣蝕閥
最大泄壓閥
優先閥
旁通電動閥
高壓軸封
Unidirectional hydraulic pumps in aluminium, and with external gears.
Some pumps in this category are also available with cast iron flanges.
The rotation verse is clockwise or counterclockwise, and can reverse it without adding any components, so can optimize storage space and adapt the pump to needs.
The displacement of these products varies between 0.16 cm3/rev and 86.87 cm3/rev, the rotation speed reaches up to 9000 rpm and the maximum pressures reach 320 bar.
Depending on the type, unidirectional hydraulic pumps can have:
Integrated outboard bearings
Anti-cavitation valve
Maximum pressure relief valves
Priority valves
Bypass electric valves
High-Pressure shaft seal
單向液壓馬達 / Unidirectional Hydraulic Motors
鋁制單向液壓馬達，帶外齒輪。
此類別中的一些電機也可提供鑄鐵法蘭。
旋轉節為順時針或逆時針，無需添加任何組件即可反轉，因此可以優化存儲空間并使電機適應您的需要。
這些產品的排量在 0.45 cm3/rev 和 86.87 cm3/rev 之間變化，轉速高達 9000 rpm，最大壓力達到 320 bar。
根據類型的不同，單向液壓馬達可選：
集成外置軸承
防氣蝕閥
最大泄壓閥
優先閥
旁通電動閥
高壓軸封
Unidirectional hydraulic motors in aluminium, and with external gears.
Some motors in this category are also available with cast iron flanges.
The rotation verse is clockwise or counterclockwise, and can reverse it without adding any components, so can optimize storage space and adapt the motor to your needs.
The displacement of these products varies between 0.45 cm3/rev and 86.87 cm3/rev, the rotation speed reaches up to 9000 rpm, the maximum pressures reach 320 bar.
Depending on the type, unidirectional motors can have:
Integrated outboard bearings
Anti-cavitation valve
Maximum pressure relief valves
Priority valves
Bypass electric valves
High-Pressure shaft seal
可逆液壓泵 / Reversible Hydraulic Pumps
可逆鋁制和外齒輪液壓泵。 此類別中的一些泵也可提供鑄鐵法蘭。
選擇稱它們?yōu)椤翱赡妗笔且驗?，一旦安裝在應用中，它們就可以順時針和逆時針轉動：這意味著泵可以在兩個方向上工作，無需任何修改。
另一方面，如果正在尋找順時針或逆時針旋轉方向的泵，可以根據需要反轉——例如，根據需要儲備和調整泵——正確的解決方案是單向液壓泵， 在大多數模型中，其旋轉方向可以改變，而無需添加任何組件。 與可逆泵相比，不同之處在于所安裝的泵只能在一個方向上轉動。
可逆泵的排量在 0.16 cm3/rev 和 86.87 cm3/rev 之間變化，轉速高達 9000 rpm，最大壓力達到 320 bar。
根據類型的不同，可逆泵可選：
集成外置軸承
高壓軸封
Reversible (bidirectional or bisensel) aluminum and external gear hydraulic pumps. Some pumps in this category are also available with cast iron flanges.
Chose to call them “reversible” because, once installed in the application, they can turn both clockwise and counterclockwise: meaning that the pump is made to work in both directions, without any modification.
If, on the other hand, are looking for a pump with either clockwise or counterclockwise direction of rotation, which can be reversed according to needs-for example, to stock up and adapt the pump as needed-the right solution is unidirectional hydraulic pumps, whose direction of rotation can be changed, in most models, without adding any components. The difference, compared with reversible pumps, is that the installed pump can turn only in one direction.
The displacement of the reversible pumps varies between 0.16 cm3/rev and 86.87 cm3/rev, the rotation speed reaches up to 9000 rpm, the maximum pressures reach 320 bar.
Depending on the type, reversible pumps can have:
Integrated outboard bearings
High-Pressure shaft seal
可逆液壓馬達 / Reversible Hydraulic Motors
鋁制可逆液壓馬達，帶外齒輪。 此類別中的一些電機也可提供鑄鐵法蘭。
它們用于一些特殊的應用，它們的旋轉方向是順時針和逆時針交替的。 因此，如果要根據需要尋找順時針或逆時針旋轉方向反轉的馬達，推薦單向液壓馬達，其旋轉方向可以在不添加任何組件的情況下改變。
可逆電機的排量在0.45 cm3/rev和86.87 cm3/rev之間變化，轉速高達9000 rpm，最大壓力達到320 bar。
根據類型的不同，可逆液壓馬達可選：
集成外置軸承
高壓軸封
Reversible hydraulic motors in aluminium, and with external gears. Some motors in this category are also available with cast iron flanges.
They are used for some special applications, and their rotation verse is alternately clockwise and counterclockwise. Therefore, if are looking for a motor with clockwise or counterclockwise rotation verse to be reversed according to needs, recommend unidirectional hydraulic motors, whose rotation verse can be changed without adding any components.
The displacement of the reversible motors varies between 0.45 cm3/rev and 86.87 cm3/rev, the rotation speed reaches up to 9000 rpm, the maximum pressures reach 320 bar.
Depending on the type, reversible motors can have:
Integrated outboard bearings
High-Pressure shaft seal

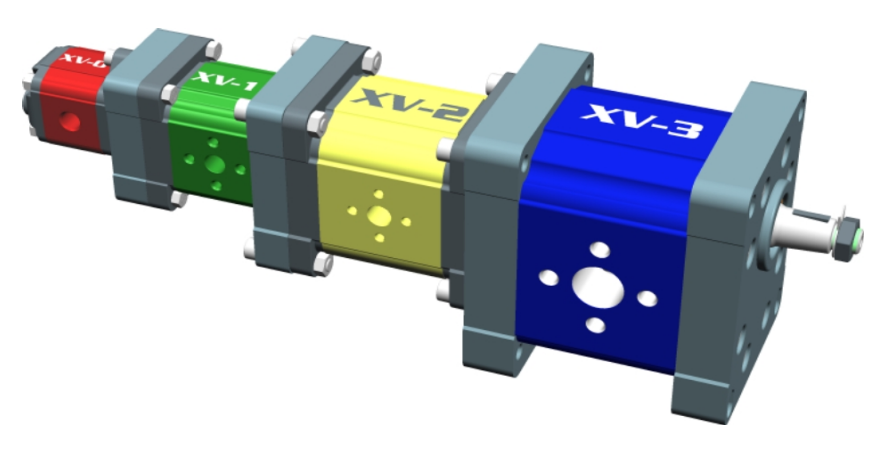

多級泵 / Multiple Pump Stages
帶外齒輪的鋁制液壓泵級，待組裝。
它們有助于始終儲備根據需要組成多個泵所需的零件。
此類別中的某些零件也可提供鑄鐵法蘭。
排量在 0.16 cm3/轉和 86.87 cm3/轉之間變化，最大壓力達到 320 bar。
根據類型的不同，多級泵可選：
集成外置軸承
最大泄壓閥
優先閥
旁通電動閥
高壓軸封
Hydraulic pump stages with external gears and in aluminium, to be assembled.
They are useful to always have in stock the pieces needed to compose multiple pumps based on needs.
Some parts in this category are also available with cast iron flanges.
The displacement varies between 0.16 cm3/rev and 86.87 cm3/rev and the maximum pressures reach 320 bar.
Depending on the type, multiple pumps stages can have:
Integrated outboard bearings
Maximum pressure relief valves
Priority valves
Bypass electric valves
High-Pressure shaft seal
組合液壓齒輪泵 / Multiple Hydraulic Gear Pumps
組裝多個鋁制液壓泵，并帶有外齒輪。
此類別中的一些泵也可提供鑄鐵法蘭。
從標準泵、分階段泵、單入口泵和成型多泵中進行選擇。 可以提供具有不同尺寸組級的多個泵，以處理甚至非常不同的流量。
排量在 0.16 cm3/轉和 86.87 cm3/轉之間變化，最大壓力達到 320 bar。
根據類型的不同，組合泵：
集成外置軸承
防氣蝕閥
最大泄壓閥
優先閥
旁通電動閥
高壓軸封
Multiple hydraulic pumps already assembled, in aluminium, and with external gears.
Some pumps in this category are also available with cast iron flanges.
Choose from standard, at separate-stages, single inlet, and shaped multiple pumps. Can supply multiple pumps with stages of different size groups to handle even very different flow rates.
The displacement varies between 0.16 cm3/rev and 86.87 cm3/rev and the maximum pressures reach 320 bar.
Depending on the type, multiple pumps can have:
Integrated outboard bearings
Anti-cavitation valve
Maximum pressure relief valves
Priority valves
Bypass electric valves
High-Pressure shaft seal

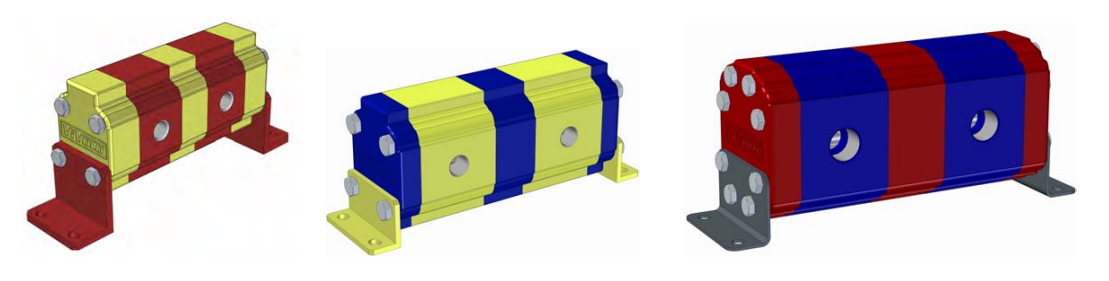

液壓分流器 / Hydraulic Flow Dividers
鋁制液壓分流器，帶外齒輪。 它們是模塊化的，甚至有超過 20 個元件，并且可提供安全閥和/或防氣蝕閥。 此類別中的一些產品可提供集成液壓馬達，在存在單效缸且無負載的情況下，有助于下降。
對于某些特殊應用，可以為分流器提供不同尺寸組的級數，以處理甚至非常不同的流量。
采用 5 軸機器和單夾具進行加工，提高了尺寸精度。 分流器的排量在 0.16 cm3/rev 和 86.87 cm3/rev 之間變化，最大壓力達到 300 bar。
如果正在尋找一種在存在強壓差的情況下仍能保持非常高的精度和/或可在每個級上使用 CETOP 連接的產品，建議使用具有瞬時重新對準功能的歧管分流器 MIA-FD（歧管瞬時自動補償分流器）。
Hydraulic flow dividers in aluminium, and with external gears. They are modular even with more than 20 elements, and are available with relief and/or anti-cavitation valves. Some products in this category are available with an integrated hydraulic motor which, in the presence of single effect cylinders and in the absence of load, facilitates the descent.
For some special applications, can supply the flow divider with stages of different size groups to handle even very different flow rates.
Machining is done with 5-axis machines and a single grip, which improves dimensional accuracy. The displacement of the flow dividers varies between 0.16 cm3/rev and 86.87 cm3/rev and the maximum pressures reach 300 bar.
If are looking for a product that maintains a very high accuracy in the presence of strong pressure differences and/or available with CETOP connections on each stage, recommend manifold flow divider with instantaneous realignment MIA-FD (Manifold Instantaneous Auto-compensating Flow Divider).
