2023 年4月1日，Nidec Copal Electronics 更名為Nidec Components Corporation。
NIDEC COMPONENTS于1967年4月在日本成立，是一家專業的電子元件制造商。
產品線范圍廣泛，包括電機、編碼器、開關和壓力傳感器。
COPAL-ELECTRONICS壓力表PG-20-502G系列技術參數
General specifications | |
Model number | PG-20-502G |
Pressure reference | Gauge |
Rated pressure range | 0 ~ 0.5 MPa |
Maximum pressure | 0.75 MPa |
Vacuum pressure | 1.4 × 10-4 Pa abs (minimum) |
Leakage (He vacuum method) | 5 × 10-12 Pa·m3 / sec. minimum (Weld in pressure port) |
Operating temp.range | ? 10 ~ 50°C (No condensation) |
Compensated temp. range | 0 ~ 50°C |
Operating humidity range | 35 ~ 85% RH (No condensation) |
Storage temp. range | ? 20 ~ 60°C (Atmospheric pressure, humidity 65%RH minimum) |
Media | Gases and Liquids compatible with SUS316L |
Insulation resistance | 50MΩ minimum (Between bundled electrical wirings and the pressure port. at 125VDC) |
Dielectric Strength | Leakage current 5mA max. (Between the bundled electrical wirings and the Pressure At 125VDC,1minute) |
Pressure contact material | SUS316L Double-Melt Material (Fitting and Sensor) |
Pressure contact roughness | Ra：0.15, Rz：0.7μm minimum*1 |
Pressure contact particle | Zero count of particle of the size 0.1or bigger (By our inspection standard) |
Cable connector | Cable length : 2m cable AWG26 / include cable holder |
Protection grade | IP40 |
Net weight | Approx. 200g (W1) Approx. 110g (W2) |
COPAL-ELECTRONICS壓力表PG-20系列介紹
? UL991測試，可提供第三方測試報告（PNP輸出）
? 外徑φ20mm。 易于安裝的裝配塊
? 可旋轉顯示部分（90°步進，270°全行程）
? 提供多種輸出類型（開關、電流或電壓）組合
? 傳感芯片與安裝塊一體焊接結構
? UL991 Tested, third party test report available (PNP output)
? External diameter φ 20mm. Easily installable fitting block
? Rotable display part (90°step, 270° full travel)
? Wide combination of output types (switch, current or voltage) available
? Integrally welded structure of sensing chip and fitting bloc

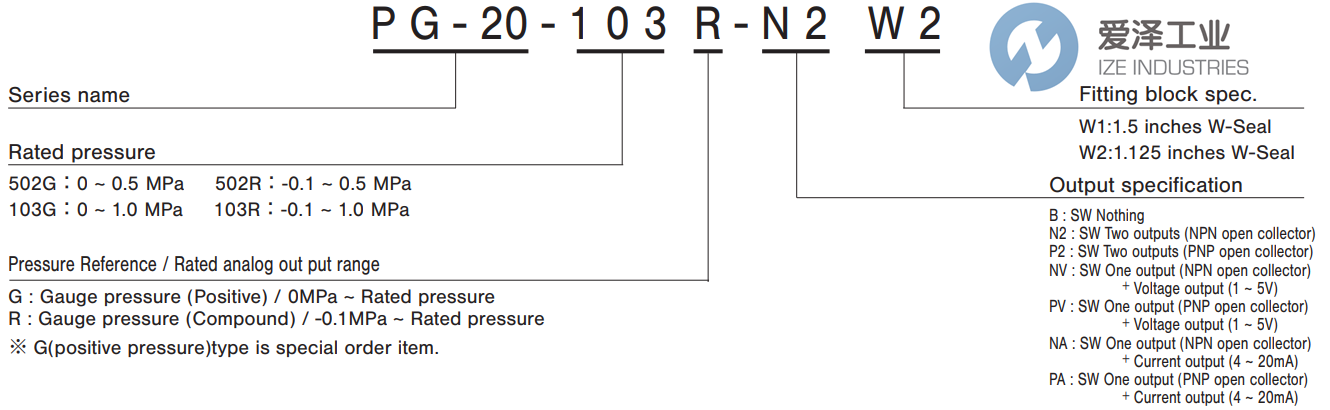

COPAL-ELECTRONICS壓力表PG-20系列選型
COPAL-ELECTRONICS壓力表PG-20系列其他常用型號：
COPAL-ELECTRONICS PG-20-103G-NAW1
COPAL-ELECTRONICS PG-20-103G-NAW2
COPAL-ELECTRONICS PG-20-103G-NVW1
COPAL-ELECTRONICS PG-20-103G-NVW2
COPAL-ELECTRONICS PG-20-103G-PAW1
COPAL-ELECTRONICS PG-20-103G-PAW2
COPAL-ELECTRONICS PG-20-502R-PVW1
COPAL-ELECTRONICS PG-20-502R-PVW2
COPAL-ELECTRONICS PG-20-502R-NVW-1
COPAL-ELECTRONICS PG-20-502R-NVW-2
COPAL-ELECTRONICS PG-20-502R-P2W1
COPAL-ELECTRONICS PG-20-502R-P2W2
COPAL-ELECTRONICS PG-20-502R-PAW1
COPAL-ELECTRONICS PG-20-502R-PAW2
COPAL-ELECTRONICS PG-20-502G-NVC2-012+CABLE CN1
COPAL-ELECTRONICS PRESSURE GAUGES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于COPAL-ELECTRONICS壓力表PG-20-502G-NVC2-012+CABLE CN1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for COPAL-ELECTRONICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
COPAL-ELECTRONICS壓力表PG-20系列PG-20-502G-NVC2-012+CABLE CN1技術參數及選型
