OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VEI-16-08F-NC系列技術參數
|
Technical data |
|
|
General |
|
|
Weight |
0.15 kg (0.33 lbs) |
|
Installation orientation |
Unrestricted |
|
Storage ambient temperature range |
-40 to 100 °C (-40 to 212 °F) |
|
Operating ambient temperature range |
-30 to 90 °C (-22 to 194 °F) |
|
Hydraulic |
|
|
Max. operating pressure |
350 bar (5000 psi) |
|
Flow range |
0.5 - 40 l/min (0.1 - 11 gpm) |
|
Fatigue cycle life |
2 million cycles at 350 bar |
|
150000 cycles at 420 bar |
|
|
Max. internal leakage: |
5 drops/min. for X= 01,05,07 |
|
20 drops/min. for X= 31,03,09 |
|
|
Switching time |
Opening ≤ 50 ms |
|
Closing ≤ 100 ms |
|
|
Fluid temperature range |
-20 to 80 °C (-4 to 176 °F) |
|
Fluids: |
Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
|
Installation torque |
39 - 51 Nm (29 - 38 ft-lbs) |
|
Recommended degree of fluid contamination |
Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
|
Special cavity |
040-E |
|
Seal kit for X=01,05 |
code RG40E201052010 |
|
Seal kit for X=31 |
code RG40E201053010 |
|
Seal kit coil and standard cap |
code RG02Z0010000100 |
|
Seal kit coil and protective cap only for Y=D |
code RG03Z0010000100 |
|
Electrical |
|
|
Type of voltage |
DC voltage |
|
Coil type |
D36 |
|
Power consumption |
20 W |

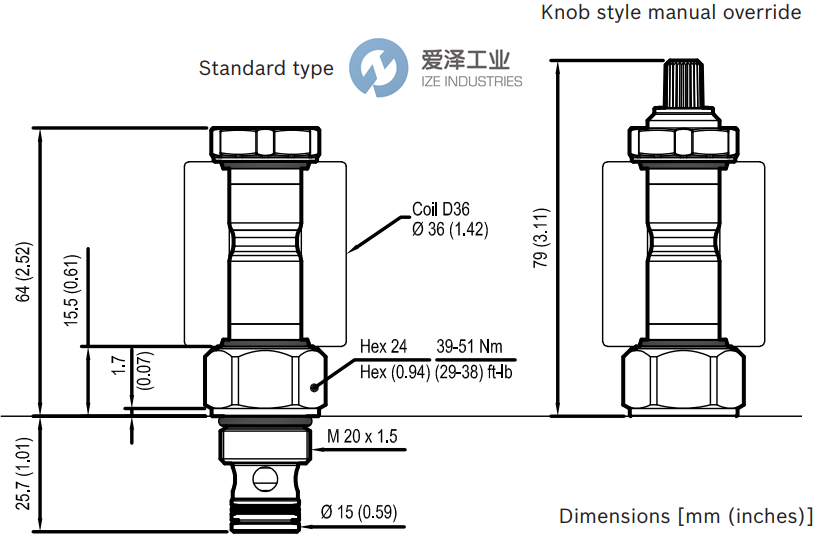

REXROTH OIL CONTROL閥VEI-16-08F-NC系列技術尺寸

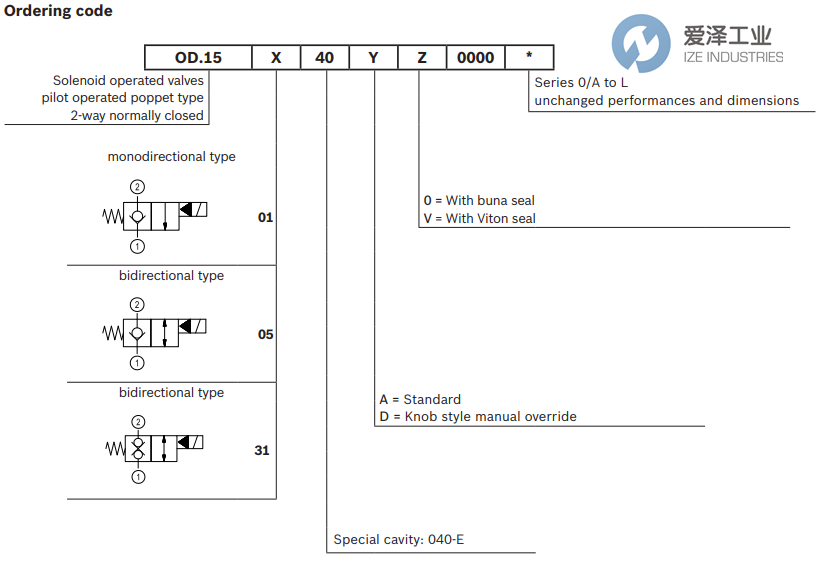

REXROTH OIL CONTROL閥VEI-16-08F-NC系列選型
REXROTH OIL CONTROL閥VEI-16-08F-NC系列其他常用型號：
REXROTH OIL CONTROL OD153140A000000 R930069398
REXROTH OIL CONTROL OD150140A000000 R930069499
REXROTH OIL CONTROL OD150540A000000 R930058430
REXROTH OIL CONTROL OD150540D000000 R930066701
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD153140A000000 R930069398的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD153140A000000 R930069398技術參數及選型
