OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥0532系列規格描述
Technical data | |
Design | Seat valve with damping |
Line connections | for pipeline installation and block installation |
Installation position | Optional |
Ambient temperature | –30...+80 °C |
Pressure medium | Hydraulic oils based on mineral oil acc. to DIN/ISO, |
Viscosity | 10...800 mm2/s permissible range |
Pressure medium temperature | –30 °C...+80 °C with NBR sealings, NBR = Perbunan? |
Filtration | Oil contamination Class 19/16 in accordance with ISO/DIS 4406, |
Direction of flow rate | shown by symbol or marking |
Operating pressure For line installation | P: max. permissible 350 bar, depending on number of load changes and temperature. Counter values on request. |
For block installation | P: In accordance with set pressure. |
MTTFd: | max. 150 years, PRV with set value > 210 bar: B10 value on request |
Cracking pressure (tolerance pnom +5 %) Set at flow 0.1 l/min | |
Leakage oil flow | Max. 1 cm3/min |
Flow | Max. 120 l/min, depending on set pressure and line ?, see chapter “Characteristics” |

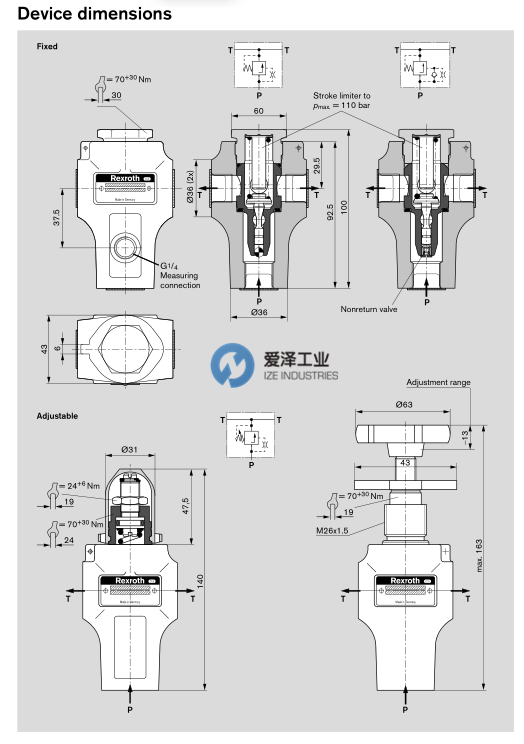

REXROTH OIL CONTROL閥0532系列尺寸圖

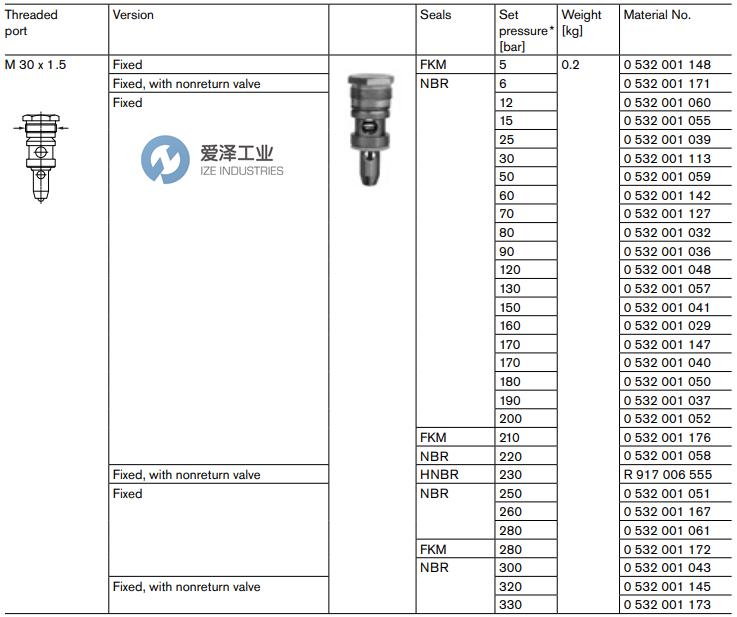

REXROTH OILCONTROL閥0532001選型
REXROTH OILCONTROL閥0 532….系列其他常用型號：
REXROTH OILCONTROL 0532002068
REXROTH OILCONTROL 0532001060
REXROTH OILCONTROL 0532001055
REXROTH OILCONTROL 0532001039
REXROTH OILCONTROL 0532001113
REXROTH OILCONTROL 0532001059
REXROTH OILCONTROL 0532001142
REXROTH OILCONTROL 0532001127
REXROTH OILCONTROL 0532001058
REXROTH OILCONTROL 0532001036
REXROTH OILCONTROL 0532001048
REXROTH OILCONTROL 0532001057
REXROTH OILCONTROL 0532001041
REXROTH OILCONTROL 0532001029
REXROTH OILCONTROL 0532001147
REXROTH OILCONTROL 0532001040
REXROTH OILCONTROL 0532001050
REXROTH OILCONTROL 0532001037
REXROTH OILCONTROL 0532001052
