OIL CONTROL成立于1974年(現被博士力士樂收購),在意大利工業領域運動控制閥移動機械市場占有很高的市場容量,且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司,已是移動設備與機械領域的閥門優質供應商,可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有:換向閥,止回閥,電磁閥,平衡閥,球閥,插裝閥,單向閥,溢流閥,行程閥,驅動閥,安全閥,閥組,閥塊,電磁閥線圈,流量計等等。
REXROTH OIL CONTROL閥VESP-12G-12A/00-2T31-N7系列技術參數
Technical data | |
General | |
Weight | 0.75 kg (1.7 lbs) |
Installation orientation | Optional |
Ambient temperature range | -25 to 60 °C (-13 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 2.5-70 l/min (0.66 - 18 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 15 to 380 mm2/s (cSt) |
Installation torque | 50 - 55 Nm (37 - 41 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years see RE 18350-51 |
DC | 90% * according to ISO 13849-1/2 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit” or consult factory |
Seal kit – version 31 | code RG17E201053010 |
Electrical | |
Type of voltage | DC voltage |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | 100% |

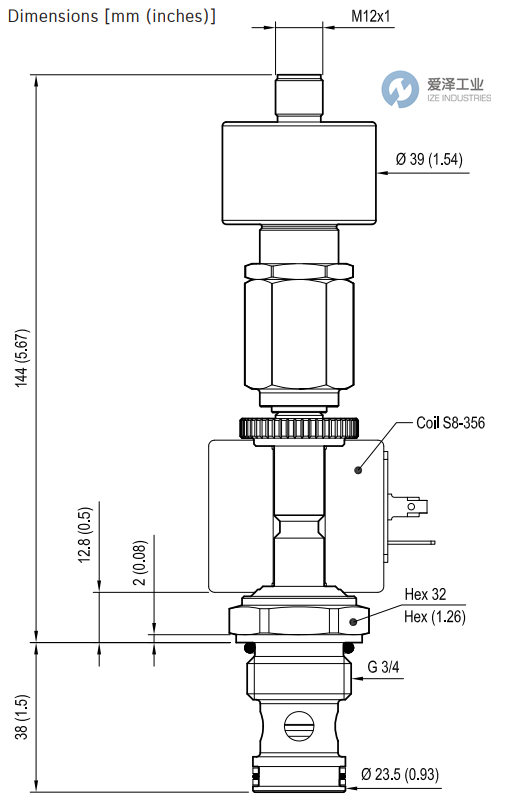

REXROTH OIL CONTROL閥VESP-12G-12A/00-2T31-N7系列技術尺寸

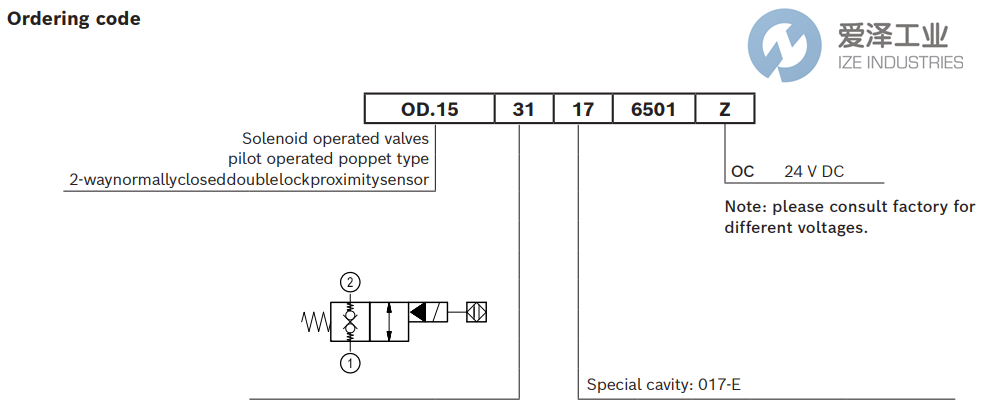

REXROTH OIL CONTROL閥VESP-12G-12A/00-2T31-N7系列選型
REXROTH OIL CONTROL閥VESP-12G-12A/00-2T31-N7系列其他常用型號:
REXROTH OIL CONTROL OD1531176501OC R934004749
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD1531176501OC R934004749的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD1531176501OC R934004749技術參數及選型
