ELECTRONICON公司的前身RFT/VEB ELEKTRONIK 公司成立于40年代。ELECTRONICON的主營產品有整流器，濾波裝置，控制器，電阻和電容等。
ELECTRONICON電容E62.H12-202G10技術參數
Part no. | E62.H12-202G10 |
|
Capacitance | 2 μF | |
Voltage (rms) | 1800V | |
Voltage (AC) | 2500 Vac | |
Imax | 12 A | |

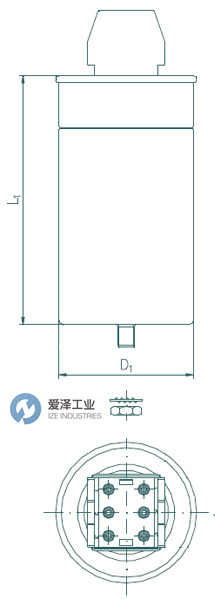

Can Height (L1) | 124mm | |
Can Diameter (D1) | 55mm | |
Filling | castor oil | |
Safety Device | BAM | |
Self-inductance | 120 nH |
ELECTRONICON電容E62系列介紹
"E62"AC/DC通用系列的圓柱形電容，適合非正弦波形電壓和脈沖電流。例如作為阻尼或換向電容器與晶閘管并聯切換，或與電阻串聯連接（在功率半導體切換期間抑制不希望的電壓尖峰）。它們可廣泛用作支撐、平滑和浪涌放電電容器，也可用于濾波器等。MKP電介質的低損耗在很大程度上補償了非正弦波形電壓引起的損耗。
E62系列電容封裝在鋁外殼中，內部填充環保植物油。也可填充惰性氣體。充氣電容不僅環保，而且可以任意角度安裝。而充油電容則由于電氣和環保技術原因，應始終垂直安裝。
金屬化薄膜出色的自愈特性和自主壓力保護裝置(“BAM”)，確保電容器安全運行、以及在過載或使用壽命結束發生故障時受控地?cái)嚅_。
The cylindrical capacitors of our universal AC/DC series "E62" are perfect for non-sinusoidal voltages and pulsed currents, e.g. as damping or commutation capacitors switched in parallel to a thyristor, or connected in series with a resistor (damping of undesirable voltage spikes during the switching of power semiconductors). They can be widely used as supporting, smoothing, and surge discharge capacitors, further in AC filters, a.m.o. The low loss factor of our MKP dielectric compensates to a large extent for the losses caused by the non-sinusoidal voltages.
It goes without saying that all AC capacitors may as well be used for DC applications.
The E62s are housed in a hermetically sealed aluminium can which is filled with environmentally friendly plant oil as standard; optionally many of them can also be made available with a filling of inert gas. The gas filling is not only environmentally friendly, but also permits mounting in any position, while the oil-filled capacitors should - for electrical as well as environmental considerations - always be mounted vertically.
The excellent self-healing characteristics of our film metallization and the integrated overpressure protection (" BAM ") ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life.
ELECTRONICON電容E62系列其他常用型號：
ELECTRONICON E62.C58-101E40
ELECTRONICON E62.C58-151E40
ELECTRONICON E62.C58-221E40
ELECTRONICON E62.F62-221B20
ELECTRONICON E62.F62-471B21
ELECTRONICON E62.G62-681B20
ELECTRONICON E62.F10-102B21
ELECTRONICON E62.H10-152B20
ELECTRONICON E62.F10-202B20
ELECTRONICON E62.G10-202B20
ELECTRONICON E62.K85-473D1C
ELECTRONICON E62.C58-201E40
ELECTRONICON E62.H12-202G10
