OIL CONTROL成立于1974年諾南托拉(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。從最初的 overcentre閥起重機和高空作業平臺開始，公司開始成功地處理與其他液壓機械的兼容應用中，主要應用于負載移動機械的控制，如遠程處理，挖土機，絞車等工程機械。今天的OIL CONTROL公司，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥OD150418C000000 R930066185是OD1504181CS000 R901091123的停產替代型號
REXROTH OIL CONTROL閥VEI-16-08A-NA系列規格描述
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 02,06,08 |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years see RE 18350-51 |
Common cavity | CA-08A-2N see 18325-70 |
Seal kit for X=02,06,08 | code RG08A2010520100 |
Seal kit for X=32,10,04 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective cap only for Y=C | code RG04Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

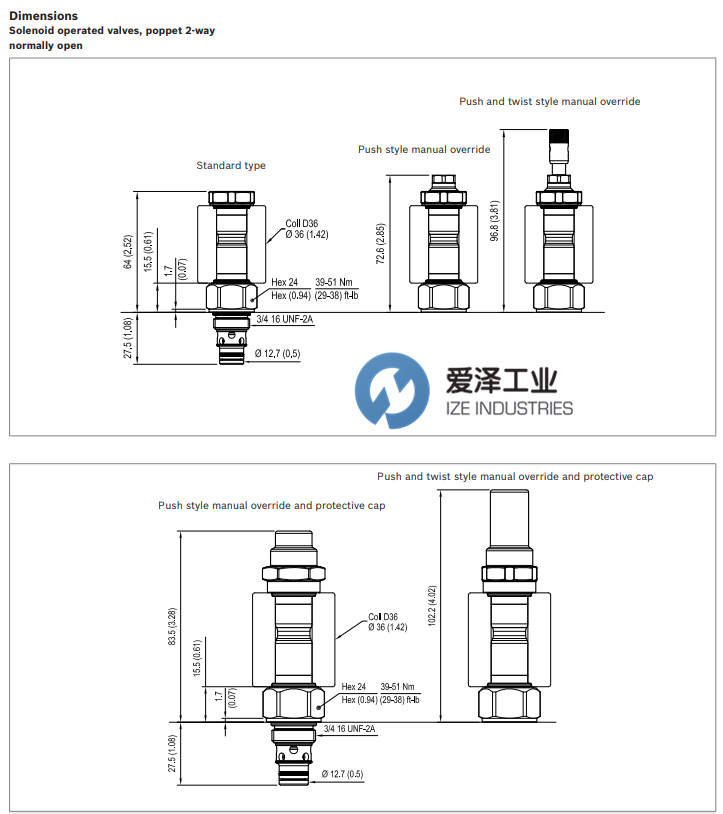

REXROTH OIL CONTROL閥VEI-16-08A-NA系列技術尺寸
REXROTH OIL CONTROL閥VEI-16-08A-NA系列選型參考
REXROTH OIL CONTROL閥VEI-16-08A-NA系列其他常用型號：
REXROTH OILCONTROL OD150218A000000 R930059442
REXROTH OILCONTROL OD150218B000000 R930060895
REXROTH OILCONTROL OD150218BP00000 R930060113
REXROTH OILCONTROL OD150218C000000 R930060584
REXROTH OILCONTROL OD150218CP00000 R930060090
REXROTH OILCONTROL OD150618A000000 R930058435
REXROTH OILCONTROL OD150618B000000 R930058438
REXROTH OILCONTROL OD150618C000000 R930060128
REXROTH OILCONTROL OD150818A000000 R930058337
REXROTH OILCONTROL OD150818B000000 R930058340
REXROTH OILCONTROL OD150818C000000 R930060583
REXROTH OILCONTROL OD153218A000000 R930064101
REXROTH OILCONTROL OD153218B000000 R930063422
REXROTH OILCONTROL OD153218C000000 R930065002
REXROTH OILCONTROL OD150418A000000 R930065329
REXROTH OILCONTROL OD150418B000000 R930066184
REXROTH OILCONTROL OD150418C000000 R930066185
REXROTH OILCONTROL OD150618CP00000 R930060905
REXROTH OILCONTROL OD153218CP00000 R930065328
REXROTH OILCONTROL OD151018B000000 R930066186
REXROTH OILCONTROL OD151018C000000 R930066187
REXROTH OILCONTROL OD150618AV00000 R930060900
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150418C000000 R930066185的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD150418C000000 R930066185技術參數及選型
