CATALFER打磨機產品介紹

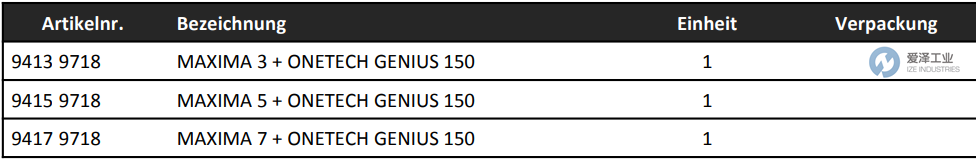

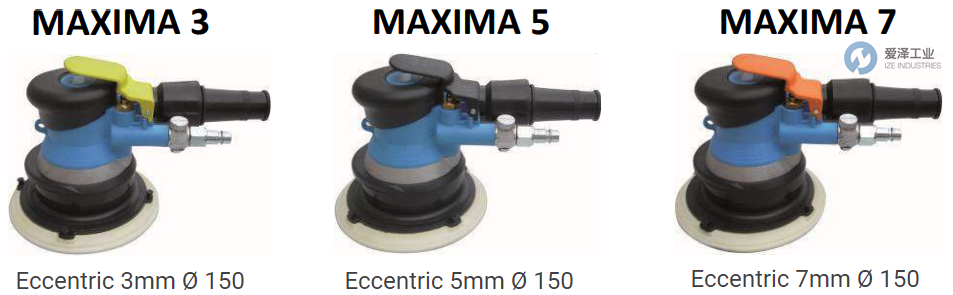

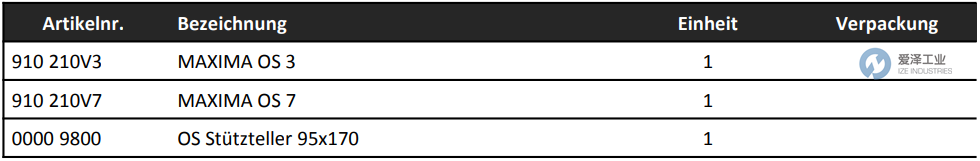

CATALFER打磨機MAXIMA / MAXIMA OS系列介紹及選型

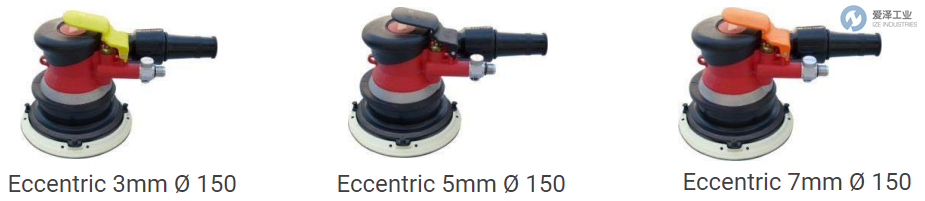

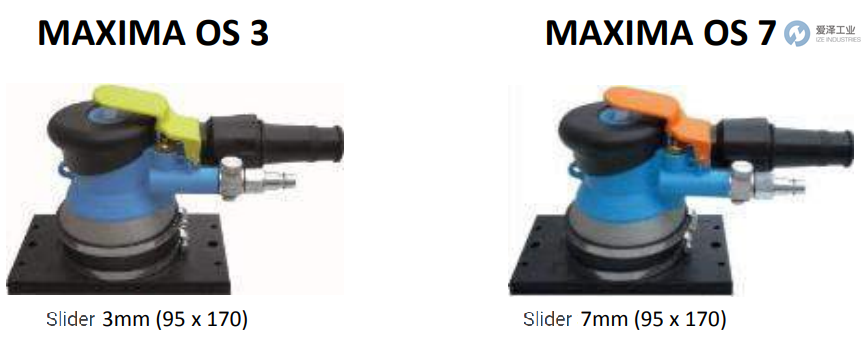

壓縮空氣打磨系統 Maxima、Maxima OS、AIRFLUX 帶集成抽吸功能。憑借獲得專利的“Airflux”循環，純凈的壓縮空氣在驅動砂墊后，將排出的空氣轉化為真空，將所有砂塵壓入吸塵軟管。將背墊完全放置在待加工表面上后，可 99% 去除由此產生的打磨粉塵。工作站設備允許存放砂輪和所有其他必要的工作設備。
The compressed air sanding system Maxima, Maxima OS, AIRFLUX with integrated extraction. With the patented "Airflux" cycle, the pure compressed air, after driving the sanding pad, the exiting air is converted into a vacuum, which presses all the sanding dust into the suction hose. With a complete placement of the backing pad on the surface to be processed, 99% extraction of the resulting sanding dust. The workstation equipment allows storage of grinding wheels and all other necessary work equipment.

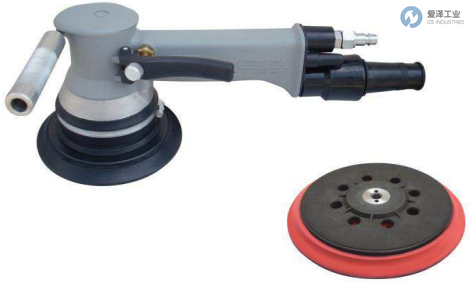

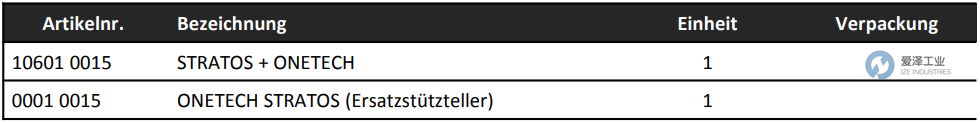

CATALFER打磨機STRATOS AIRFLUX系列介紹及選型
無塵、氣動齒輪旋轉磨床，適用于大磨削去除。 可與ONETECH和HELAN砂輪配套使用。
STRATOS AIRFLUX可用于需要大量打磨的地方。通過其旋轉力和自動吸力（無塵工作環境），延長了砂輪的使用壽命和可用性。STRATOS 替代了昂貴的系統，因?yàn)樗且环N氣動旋轉打磨機，特別適用于打磨鋁材，因?yàn)闆]有電纜，沒有電波和爆炸的危險。
Dust-free, air-powered geared rotary grinder, suitable for a large grinding removal. Can be used with ONETECH and HELAN grinding wheels.
STRATOS AIRFLUX can be used where very large removal of grinding is necessary. Through its rotational force and automatic extraction (dust-free working environment), extended life and use of the grinding disc. Stratos replaces expensive systems because it is an air-powered rotary grinder, particularly suitable for sanding aluminum as there are no electric cables. No radio and explosion hazard.

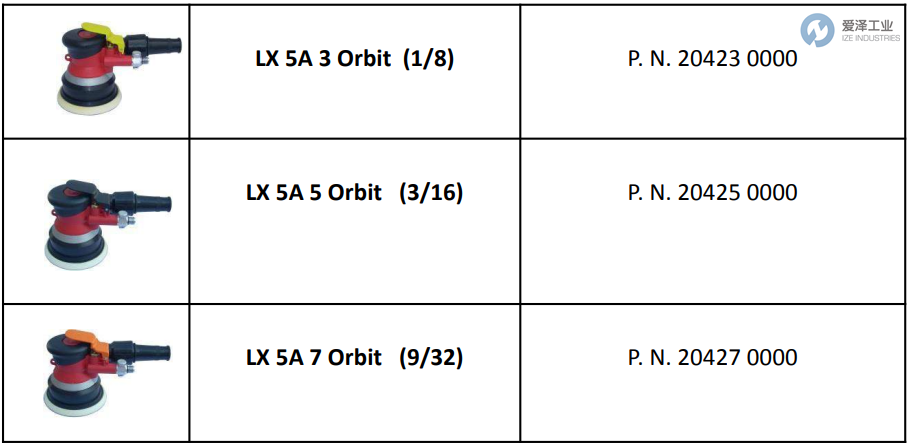

CATALFER打磨機MAXIMA LX 5A系列介紹及選型
壓縮空氣驅動偏心裝置
? 可直接連接到中央提取和移動提取
? 易于操作
? 動力強勁、耗氣量低的空氣發動機
? 適用于任何類型的表面處理
? 軸承雙重防塵
? 工作壓力 (4-5 BAR)
Compressed air driven eccentric
? direct connection to central extraction and mobile extraction possible
? easy handling
? powerful, low air consumption air engine
? ideal for any kind of surface preparation
? the bearing is double protected against dust
? operating pressure (4-5 bar)

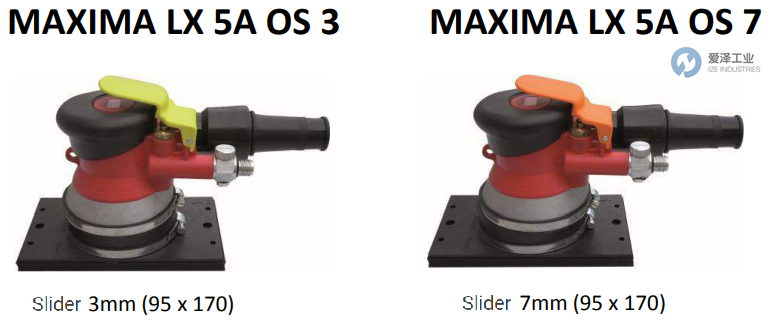

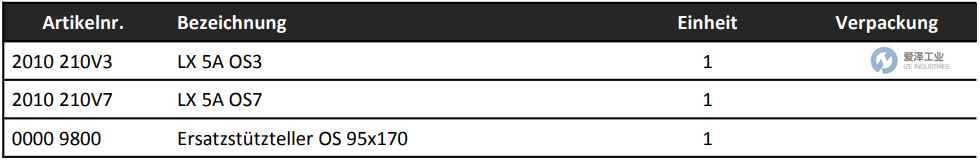

CATALFER打磨機MAXIMA LX 5A OS系列介紹及選型
軌道氣動研磨機
一種壓縮空氣驅動的隨機軌道打磨機，耗氣量低，適用于移動系統和中央抽氣系統。
? 可直接連接到中央提取
? 易于操作
? 動力強勁、耗氣量低的空氣發動機
? 適用于任何類型的表面處理
? 軸承雙重防塵
? 工作壓力 (4-5 BAR)
Orbital air powered grinder
A compressed air driven random orbit sander with low air consumption for operation on mobile systems and on central extraction.
? direct connection to central extraction possible
? easy handling
? powerful, low air consumption air engine
? ideal for any kind of surface preparation
? the bearing is double protected against dust
? operating pressure (4-5 bar)

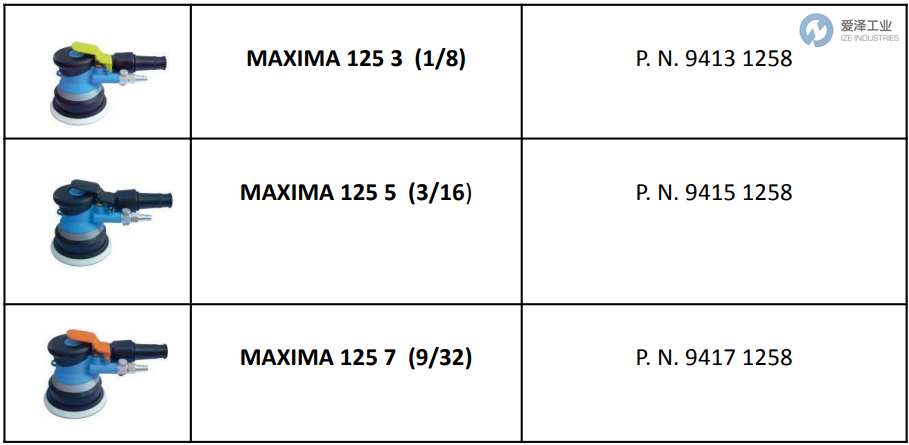

CATALFER打磨機MAXIMA ? 125系列介紹及選型
帶自動吸力
With automatic suction
CATALFER打磨機LX 5A ? 125系列介紹及選型
氣動打磨機（不帶自動吸風）
Pneumatic grinding machine (without automatic suction)

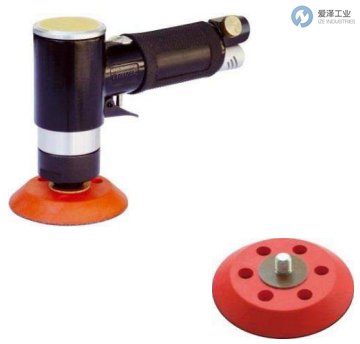

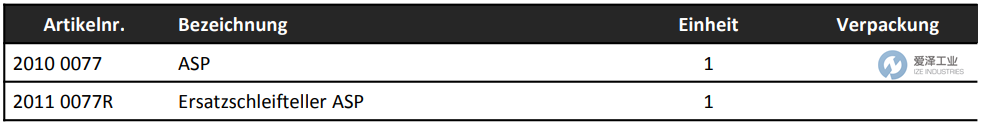

CATALFER打磨機ASP ? 75系列介紹及選型
用于 SPOTREPAIR 的氣動軌道打磨機
技術規格：
重量：600 克。
工作壓力：6 bar
轉速：rpm 15’000
行程：2.5mm
特征：
? 無振動和噪音
? 易于操作
? 強大的氣動引擎
? 適用于任何類型的表面處理
Air-powered orbital sander for spotrepair
Technical specifications:
Weight: 600 gr.
Working pressure: 6 bar
Speed: rpm 15’000
Stroke: 2.5mm
Characteristics:
? No vibration and noise
? Easy handling
? Powerful air powered engine
? Ideal for any kind of surface preparation

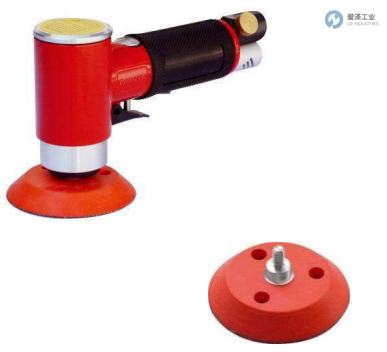

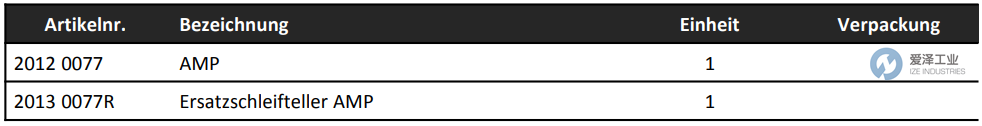

CATALFER打磨機AMP ? 75系列介紹及選型
氣動旋轉拋光機
技術規格：
重量：600 克。
工作壓力：6 bar
速度：每分鐘 2'500
特征：
? 無振動和噪音
? 易于操作
? 強大的氣動發動機
? 適用于所有類型的拋光
Air-powered rotary polishing machine
Technical specifications:
Weight: 600 gr.
Working pressure: 6 bar
Speed: rpm 2'500
Characteristics:
? No vibration and noise
? Easy handling
? Powerful air powered engine
? Ideal for all types of polishing

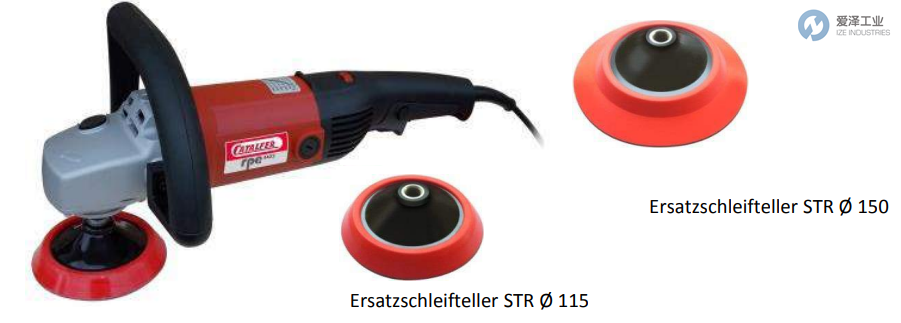

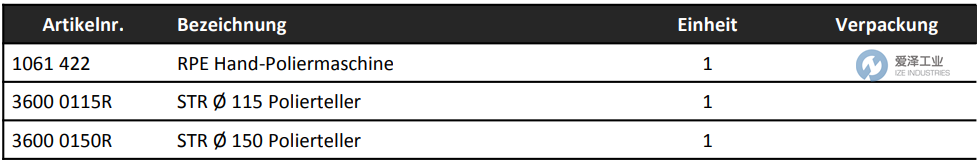

CATALFER打磨機RPE系列介紹及選型
帶速度控制的電動手動拋光機。 （提供標準研磨盤 STR ? 115）
技術規格：
重量：3KG
速度6級
功率 1300W
轉速：400-2200轉
特征：
? 可與 ? 115 和 ? 150 的磨墊一起使用
? 無振動和噪音
? 易于操作
? 強大的電動馬達
? 適用于任何類型的表面處理
Electrically operated hand polishing machine with speed control. (Supplied with standard grinding disc STR ? 115)
Technical specifications:
Weight: 3KG
Speed 6 levels
Power 1300W
Speed: 400-2200 rpm
Characteristics:
? Can be used with sanding pads ? 115 & ? 150
? No vibration and noise
? Easy handling
? Powerful electric motor
? Ideal for any kind of surface preparation
