OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績?cè)谄嚭凸こ虣C(jī)械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VBSN-12A系列技術參數
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 120 l/min (32 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 81 - 95 Nm (60 - 70 ft-lbs) |
Weight | 0.39 kg (0.86 lbs) |
Cavity | CA-12A-3C |
Adjustment | according to ISO 4413 with sealed adjustment screw to prevent oil leakage during adjustment |
Salt spray test | 500h according to DIN EN ISO 9227:2017-07 |
Seal kit | Code: RG12A9010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Pressure setting: | at least 1.3 times the load induced pressure and maximum 1.5 times catalogue max nominal setting. |

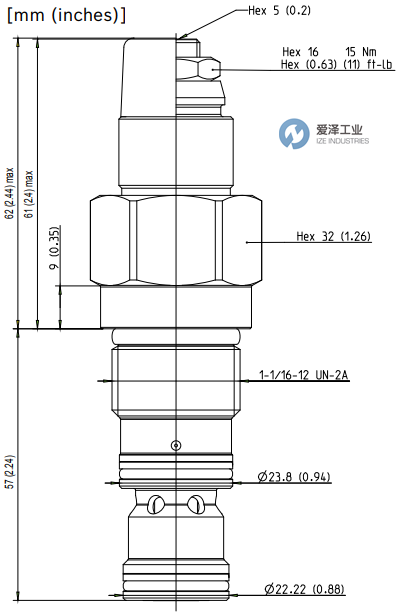

REXROTH OIL CONTROL閥VBSN-12A系列技術尺寸

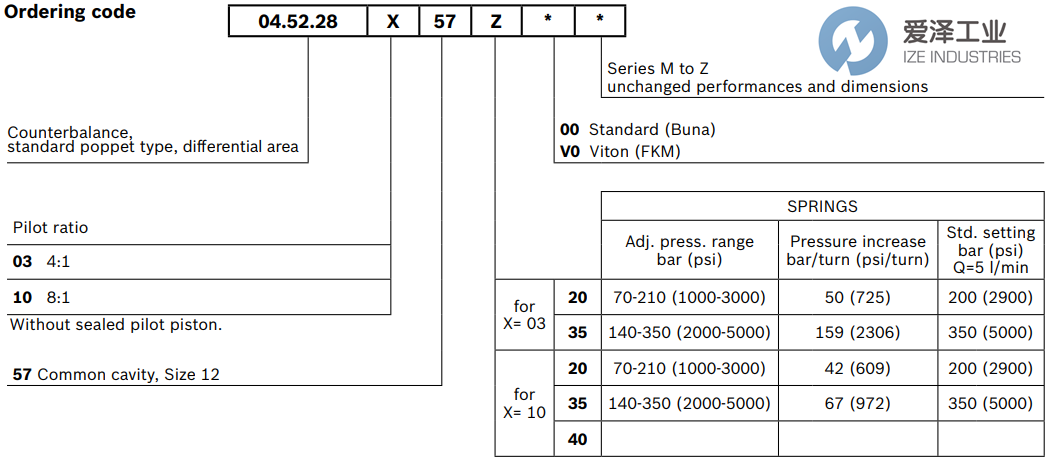

REXROTH OIL CONTROL閥VBSN-12A系列選型
REXROTH OIL CONTROL閥VBSN-12A系列其他常用型號：
REXROTH OIL CONTROL 04522803572000M R930081269
REXROTH OIL CONTROL 04522803573500M R930081270
REXROTH OIL CONTROL 04522810572000M R930081273
REXROTH OIL CONTROL 04522810573500M R930081274
REXROTH OIL CONTROL 04522810574000M R930081275
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥04522810572000M R930081273的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥04522810572000M R930081273技術參數及選型
