LTG 擁有90多年的歷史，是空氣和氣候技術的優質供應商。
LTG產品有：感應裝置，流量控制器，壓力控制器，切斷阻尼器等。

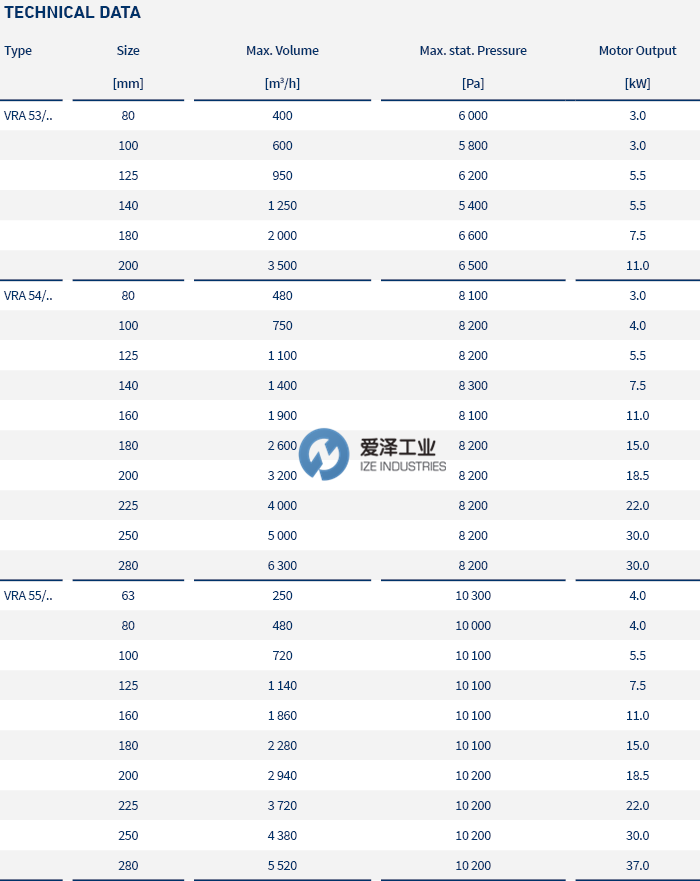

Flow rate | Total pressure rise | Motor output | Motor- type | Speed | Sound pressure level 1) | Weight | Filter- type | Filter weight | ||
Size | [m3/h] | [mbar=hPa] | [kW] | [-] | [min-1] | [dB(A)] | Fan [kg] | Chassis | [kg] | [kg] |
VRA 53/ 80 | 400 | 60 | 3 | IMB 5 | 2905 | 74 | 120 | 13 | DC-03 | 2.3 |
100 | 600 | 58 | 3 | IMB 5 | 2905 | 75 | 125 | 13 | DC-03 | 2.3 |
125 | 950 | 62 | 5.5 | IMB 5 | 2945 | 76 | 151 | 13 | DC-2 | 8 |
140 | 1250 | 64 | 5.5 | IMB 5 | 2950 | 78 | 150 | 15 | DC-2 | 8 |
180 | 2000 | 66 | 7.5 | IMB 5 | 2950 | 79 | 185 | 15 | DC-3 | 12 |
200 | 3500 | 65 | 11 | IMB 5 | 2955 | 80 | 220 | 15 | DC-5 | 21 |
VRA 54/ 80 | 480 | 81 | 3 | IMB 5 | 2905 | 75 | 140 | 13 | DC-03 | 2.3 |
100 | 750 | 82 | 4 | IMB 5 | 2945 | 76 | 160 | 13 | DC-2 | 8 |
125 | 1100 | 82 | 5.5 | IMB 5 | 2950 | 77 | 180 | 13 | DC-2 | 8 |
140 | 1400 | 83 | 7.5 | IMB 5 | 2950 | 78 | 200 | 15 | DC-2 | 8 |
160 | 1900 | 81 | 11 | IMB 5 | 2955 | 79 | 240 | 17 | DC-3 | 12 |
180 | 2600 | 82 | 15 | IMB 3 | 2955 | 80 | 290 | 30 | DC-3 | 12 |
200 | 3200 | 82 | 18.5 | IMB 3 | 2955 | 81 | 320 | 30 | DC-4 | 17 |
225 | 4000 | 82 | 22 | IMB 3 | 2940 | 82 | 380 | 30 | DC-5 | 21 |
250 | 5000 | 82 | 30 | IMB 3 | 2960 | 83 | 480 | 36 | DC-5 | 21 |
280 | 6300 | 82 | 30 | IMB 3 | 2960 | 85 | 520 | 36 | 2 x DC-4 | 2 x 17.0 |
VRA 55/ 63 | 250 | 103 | 4 | IMB 5 | 2945 | 76 | 155 | 13 | DC-03 | 2.3 |
80 | 480 | 100 | 4 | IMB 5 | 2945 | 76 | 160 | 13 | DC-03 | 2.3 |
100 | 720 | 101 | 5.5 | IMB 5 | 2950 | 78 | 190 | 13 | DC-2 | 8 |
125 | 1140 | 101 | 7.5 | IMB 5 | 2950 | 79 | 215 | 13 | DC-2 | 8 |
160 | 1860 | 101 | 11 | IMB 5 | 2955 | 80 | 280 | 17 | DC-3 | 12 |
180 | 2280 | 101 | 15 | IMB 3 | 2955 | 82 | 325 | 30 | DC-3 | 12 |
200 | 2940 | 102 | 18.5 | IMB 3 | 2955 | 84 | 360 | 30 | DC-4 | 17 |
225 | 3720 | 102 | 22 | IMB 3 | 2940 | 85 | 415 | 30 | DC-5 | 21 |
250 | 4380 | 102 | 30 | IMB 3 | 2960 | 86 | 530 | 36 | Dc-5 | 21 |
280 | 5520 | 102 | 37 | IMB 3 | 2960 | 87 | 585 | 36 | 2 x DC-4 | 2 x 17.0 |
LTG風機VRA系列參數介紹
大多數LTG燃燒空氣風扇都是離心式風扇，其一側有進氣口，并且是直接驅動的。它們具有堅固的焊接螺旋外殼，焊接的高合金鋁葉輪和向后彎曲的葉片。它們的模塊化設計使它們可以安裝在各種機殼位置。絕緣的進氣箱和頂部安裝的進氣過濾器可確保清潔，安靜的運行，并大大延長了燃氣燃燒器的維護間隔。
Most LTG combustion air fans are centrifugal fans with intake on one side and a direct drive. They have a rugged welded spiral housing, a welded high-alloy aluminium impeller and backward-curved blades. Their modular design allows them to be set up in a variety of casing positions. An insulated intake box and a top-mounted intake filter ensure clean and quiet operation plus significantly longer maintenance intervals for the gas burner.
LTG風機VRA系列選型
LTG風機VRA系列其他常用型號
LTG VRA 53/80
LTG VRA 53/100
LTG VRA 55/280 LG
LTG VRA 53/140
LTG VRA 53/180
LTG VRA 53/200
LTG Fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LTG風機VRA55/280 LG的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for LTG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
LTG風機VRA系列VRA55/280 LG技術參數及選型
