TESCOM是精密壓力控制調節器，閥門和系統的優質制造商之一。該公司成立于1916年， 2005年被EMERSON收購。
主營業務：
TESCOM壓力調節器
TESCOM閥門
TESCOM閥塊。
TESCOM減壓閥44-3400系列技術參數
OPERATING PARAMETERS | |
Maximum Inlet Pressure | 3500 psig / 241 bar |
Outlet Pressure Ranges | 0-25, 0-50, 0-100, 0-150, 0-250 psig 0-1.7, 0-3.4, 0-6.9, 0-10.3, 0-17.2 bar |
Design Outlet Proof Pressure | 150% of maximum rated pressure |
Operating Temperature | -40°F to 165°F / -40°C to 74°C |
Flow Capacity | Cv = 0.05 |
Leakage | Internal: Bubble-tight |
Maximum Operating Torque | 10 in-lbs / 1.0 N?m |
MEDIA CONTACT MATERIALS | |
Body | 316 Stainless Steel, Brass or Nickel Alloy (Monel?) |
Bonnets | 300 Series Stainless Steel or Brass |
Diaphragms | 316 Stainless Steel or Cobalt Chrome Nickel Alloy (Eligiloy?) |
Seats | PTFE |
Remaining Parts | 316 Stainless Steel and Brass (for Brass models) |
OTHER | |
Connections | 1/4" NPTF inlet, outlet and gauge port |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (without gauges) | 3 lbs / 1.4 kg |
TESCOM減壓閥44-3400系列介紹
44-3400 系列是一種緊湊、輕便的高純度兩級氣瓶調節器，適用于低于 5 SCFM / 141 SLPM 的特種氣體、腐蝕性氣體和易燃?xì)怏w。防擴散金屬對金屬隔膜密封確保氣體純度和完整性。非常適用于用于分析儀、激光器和實驗室應用的特種氣體和工業氣體的高壓氣瓶。
特征
無論入口壓力波動如何，都能提供連續、準確的出口壓力
提供入口壓力每 100 psig / 6.9 bar 變化 0.04 psig / 3 mbar 的衰減入口特性
具有獨特的金屬對金屬隔膜到閥體密封
隔膜盤旋以提高準確性和靈敏度
提供 316 不銹鋼、黃銅或蒙乃爾合金
提供符合 NACE 標準的設計
44-3400 Series is a compact, lightweight high purity two-stage cylinder regulator for specialty, corrosive and pyrophoric gases less than 5 SCFM / 141 SLPM. Diffusion-resistant metal-to-metal diaphragm seal ensures gas purity and integrity. Ideal for use in high pressure gas cylinders for specialty and industrial gases used with analyzers, lasers, and laboratory applications.
Features
Provides a continuous, accurate outlet pressure regardless of inlet pressure fluctuations
Offers a decaying inlet characteristic of 0.04 psig / 3 mbar per 100 psig / 6.9 bar change in inlet pressure
Features a unique metal-to-metal diaphragm to body seal
Diaphragms are convoluted for greater accuracy and sensitivity
Available in 316 Stainless Steel, Brass or Monel
NACE compliant designs are available

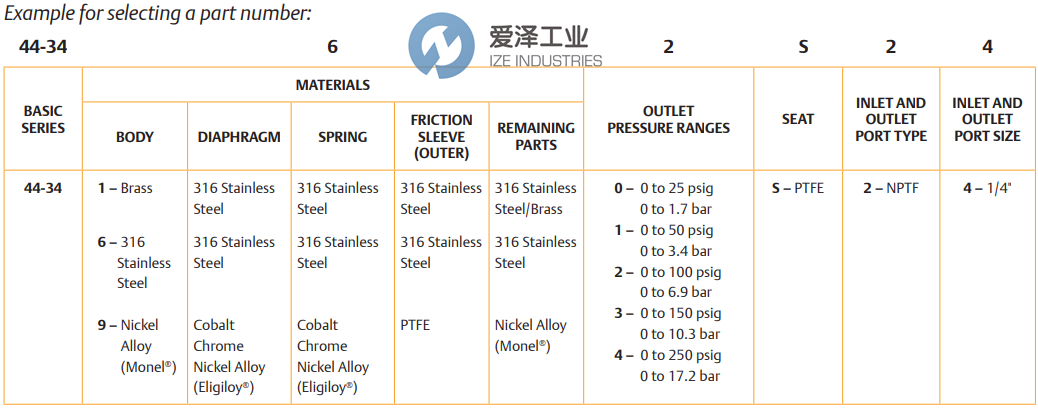

TESCOM減壓閥44-3400系列選型
TESCOM減壓閥44-3400系列其他常用型號：
TESCOM 44-3460S24
TESCOM 44-3461S24
TESCOM 44-3462S24
TESCOM 44-3463S24
TESCOM 44-3464S24
TESCOM 44-3410S24
TESCOM 44-3411S24
TESCOM 44-3412S24
TESCOM 44-3413S24
TESCOM 44-3414S24
TESCOM 44-3490S24
TESCOM 44-3491S24
TESCOM 44-3492S24
TESCOM 44-3493S24
TESCOM 44-3494S24
TESCOM Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM減壓閥44-3462S24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TESCOM減壓閥44-3400系列44-3462S24技術參數及選型
