AVENTICS是氣動元件,系統和客戶特定應用的全球制造商之一。AVENTICS提供用于工業自動化,商用車輛,食品和飲料,鐵路技術,生命科學,能源和船舶技術的產品。
AVENTICS過濾器8651APBK2G106HN技術參數
Port Type | 8 = NPTF |
Product Series | 651 |
Revision | A |
Product Type | P = Filter/Regulator - Particulate |
Elements | B = 5 Micron (White) |
Bowl Type | K = Metal Bowl without Sight Gauge |
Port Size | 2 = 1/4 (Series 651 or 652) |
Gauge Type | G = Low Profile Gauge bar/PSI |
Options | 106 = Low Temperature (-40 °C/-40 °F) |
Pressure Range | H = 7–145 PSIG/0.5–10 bar |
Drain Type | N = Manual - Semi-automatic Drain |
AVENTICS過濾器651系列介紹
微粒過濾器/調節器
? 高流量,輸出壓力范圍可調
? 可選薄型壓力表、圓形壓力表、數字壓力表或數字壓力開關
? 可選擴展溫度范圍 -40 °F 至 176 °F(-40 °C 至 80 °C)
? 帶離心分離器的燒結聚乙烯元件,包括 5、25 和 40 微米
? 螺紋端口允許單獨或模塊化安裝
? 具有手動和半自動功能的創新型兩位塑料排水管。 其他排水管包括自動式(黃銅)和手動式(不銹鋼)
? 聚碳酸酯和鋁制碗,采用符合行業和應用要求的多種觀測計材料
? 鑰匙可鎖定和防篡改型號
? 空氣純度等級符合 ISO 8573-1: 2010
PARTICULATE FILTER/REGULATOR
? High flow with a wide range of adjustable output pressure ranges
? Optional low profile gauge, round gauge, digital gauge or digital pressure switch
? Optional extended temperature range of -40 °F to 176 °F (-40 °C to 80 °C)
? Sintered polyethylene elements, with centrifugal separator, include 5, 25 and 40 Microns
? Threaded ports allow for individual or modular mounting
? Innovative two position plastic drain with manual and semi-automatic functions. Additional drains include an automatic style (brass) and manual (stainless steel)
? Polycarbonate and Aluminum bowls with a selection of sight gauge materials that meet industry and application requirements
? Key lockable and tamper resistant models
? Air purity class according to ISO 8573-1: 2010

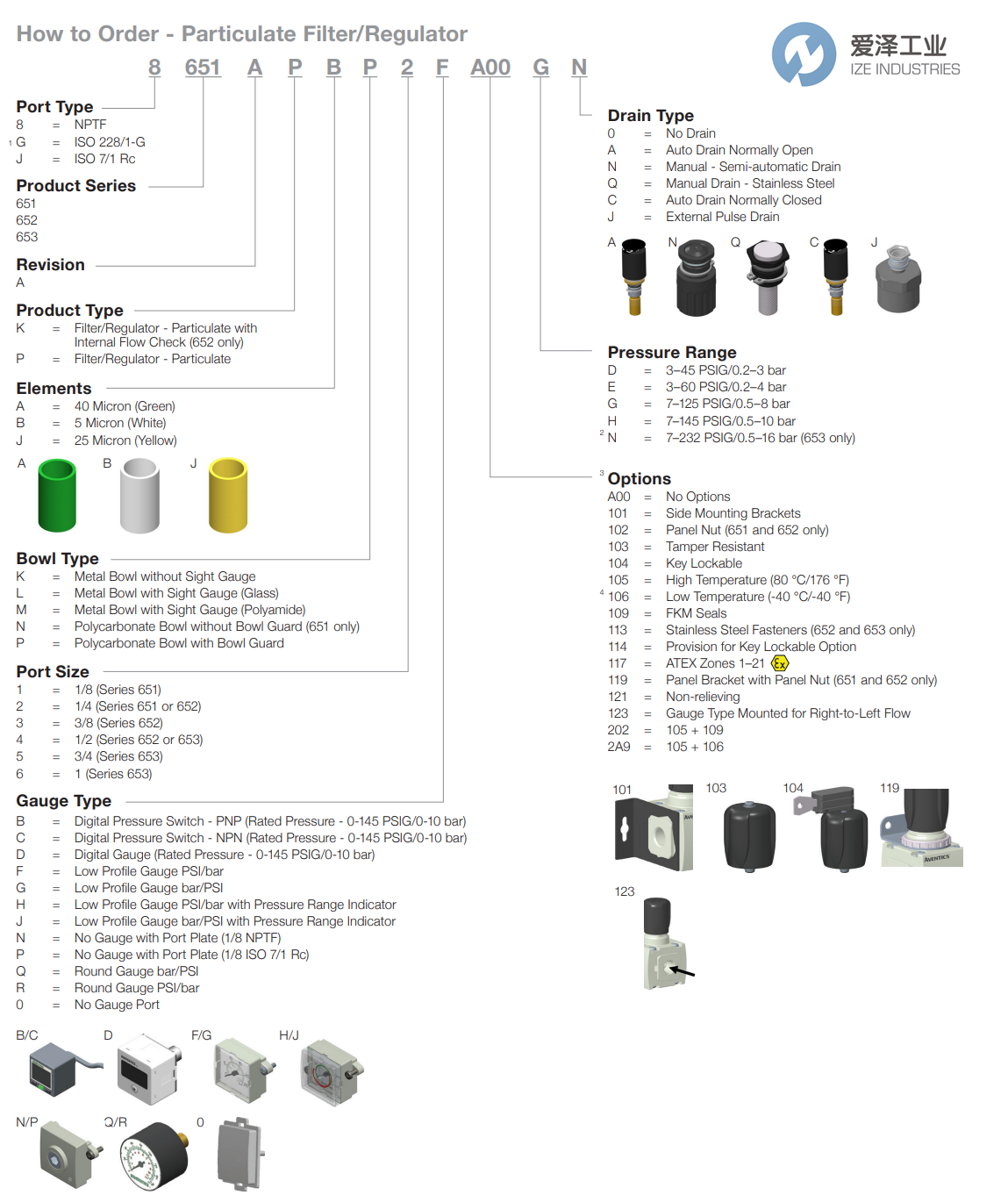

AVENTICS過濾器651系列選型
AVENTICS過濾器651系列其他常用型號:
AVENTICS 8651APBK2G106HN
AVENTICS 8651APBP2FA00GN
AVENTICS Filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS過濾器8651APBK2G106HN的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AVENTICS過濾器651系列8651APBK2G106HN技術參數及選型
