OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VEI-8A-06-NC系列技術參數
|
General |
|
|
Weight kg (lbs) |
0.13 (0.29) |
|
Installation orientation |
Optional |
|
Ambient temperature range °C (°F) |
-30 to 60 (-22 to 140) |
|
Hydraulic |
|
|
Max. operating pressure bar (psi) |
350 (5000) |
|
Max. proof pressure bar (psi) |
420 (6000) |
|
Flow range l/min. (gpm) |
0.5-40 (0.1-11) |
|
Fatigue cycle life cycles |
1 million cycles at 350 bar |
|
Max. internal leakage drops/min. |
20 |
|
Fluid temperature range °C (°F) |
-20 to 80 (-4 to 176) |
|
Fluids |
Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
|
Installation torque Nm (ft-lbs) |
39-51 (29-38) |
|
Filtration |
Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
|
Special cavity |
019-E |
|
Seal kit version 03-11 |
code RG19E201053010 |
|
Seal kit version 05 |
code RG19E201052010 |
|
Seal kit coil |
code RG12A1PNBR7010 |
|
Electrical |
|
|
Type of voltage |
DC voltage |
|
Coil type |
S8-356 |
|
Nominal voltage |
± 10% |
|
Power consumption W |
20 |

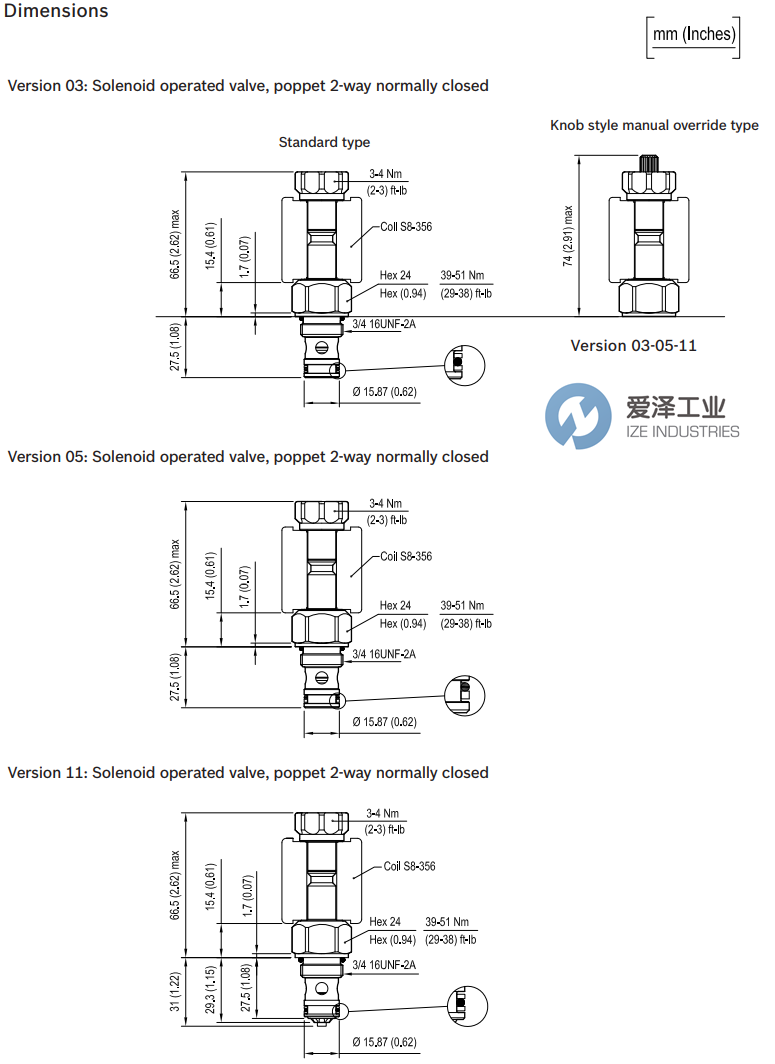

REXROTH OIL CONTROL閥VEI-8A-06-NC系列技術尺寸

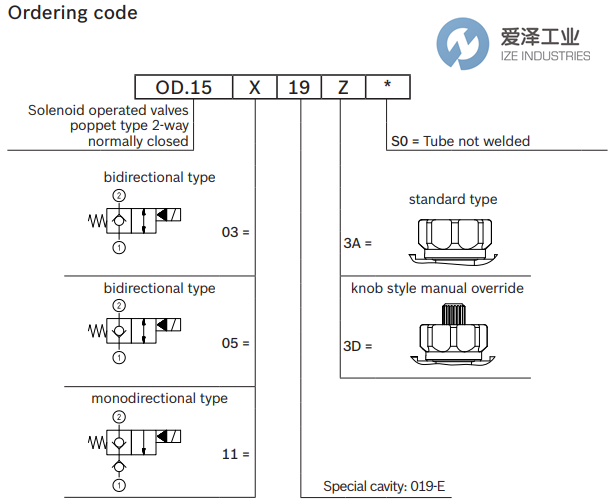

REXROTH OIL CONTROL閥VEI-8A-06-NC系列選型
REXROTH OIL CONTROL閥VEI-8A-06-NC系列其他常用型號：
REXROTH OIL CONTROL OD1503193AS00 R934000785
REXROTH OIL CONTROL OD1503193DS00 R934000786
REXROTH OIL CONTROL OD1505193AS00 R934000895
REXROTH OIL CONTROL OD1505193DS00 R934000898
REXROTH OIL CONTROL OD1511193AS000 R901091157
REXROTH OIL CONTROL OD1511193DS000 R901091158
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD1505193AS000 R934000895的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD1505193AS000 R934000895技術參數及選型
