SEW-EURODRIVE是高效優質的驅動技術制造商之一。
SEW主營產品應用：
SEW減速電機和變頻技術
SEW工業減速器
SEW分散式驅動和機電一體化技術
SEW伺服驅動技術
SEW控制、操作、軟件
SEW節能和安全。

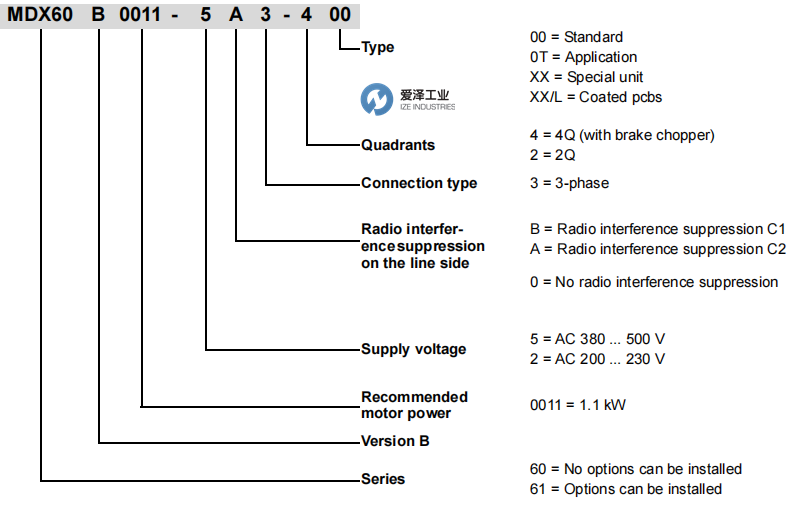

SEW變頻器MDX61B0110-5A3-4-00技術參數
Unit designation | MDX61B0110-5A3-4-00 |
Series | 61 = Options can be installed |
Version | B |
Recommended motor power | 0110 =11.0 kW |
Supply voltage | 5 = AC 380 ... 500 V |
Radio interfer-ence suppression on the line side | A = Radio interference suppression C2 |
Connection type | 3 = 3-phase |
Quadrants | 4 = 4Q (with brake chopper) |
Type | 00 = Standard |
SEW變頻器MOVIDRIVE MDX60B/61B系列介紹
MOVIDRIVE驅動逆變器的緊湊設計節省了控制柜的空間，其高用戶友好性保證了參數化期間的時間，而智能IPOSplus定位和序列控制作為標準。
在驅動逆變器中的大量輸入和輸出確保了一個合格的基本功能?？蛇x的通信和技術模塊提供了快速和方便的擴展。
The compact design of the MOVIDRIVE drive inverter saves space in the control cabinet, while its high user-friendliness ensures that you save time during parametrization, while the intelligent IPOSplus positioning and sequence control is included as standard.
A multitude of inputs and outputs in the drive inverter ensure a competent basic functionality. Optional communication and technology modules provide for quick and easy extension.
SEW變頻器MOVIDRIVE MDX60B/61B系列介紹
具有選件功能的 MOVIDRIVE⑧MDX61B 單元可配備 DER11B 型旋轉變壓器卡。 旋轉變壓器卡為旋轉變壓器提供一個輸入作為電機編碼器，一個輸入用于外部編碼器，也稱為距離編碼器。 外部編碼器的輸入也可以用作增量編碼器模擬的輸出。
Option-capable MOVIDRIVE⑧MDX61B units can be equipped with resolver card type DER11B. The resolver card offers one input for the resolver as motor encoder and one input for an external encoder, also referred to as distance encoder. The input for the ex- ternal encoder can also be used as an output for incremental encoder simulation.
SEW變頻器MOVIDRIVE MDX60B/61B產品參數
SEW變頻器MOVIDRIVE MDX60B/61B系列其他常用型號：
SEW MDX61B-0011-5A3-4-0T
SEW MDX61B0110-5A3-4-00
SEW MDX61B-0150-5A3-4-0T
SEW MDX61B-0220-5A3-4-0T
SEW MDX61B-0300-5A3-4-0T
SEW MDX61B-0370-5A3-4-0T
SEW MDX61B-0450-5A3-4-0T
SEW MDX61B-0550-5A3-4-0T
SEW MDX61B-0750-5A3-4-0T
SEW MDX61B-0900-5A3-4-0T
SEW MDX61B-1100-503-4-00
SEW MDX61B-1320-503-4-00
SEW Drive Inverter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SEW變頻器MDX61B0110-5A3-4-00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SEW products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SEW變頻器MDX61B0110-5A3-4-00技術參數
