R.K.CONTROL成立于1969年，在印度生產控制閥，R.K.CONTROL具有為各類應用提供定制閥的能力。
主營產品：
R.K.CONTROL單座截止閥
R.K.CONTROL雙座控制閥
R.K.CONTROL三通調節閥
R.K.CONTROL減溫器
R.K.CONTROL減壓閥
R.K.CONTROL角閥
R.K.CONTROL蝶閥
R.K.CONTROL球閥
R.K.CONTROL動力閥
R.K.CONTROL隔膜閥
R.K.CONTROL放大器VB系列產品參數
Specification | |
Ambient Operating Conditions | -40 Deg C to 70 Deg C |
Volume Booster Models and Sizes | Model1000- Sizes:1/4" For Supply , Output and Signal |
Pneumatic Supply Pressures | Model 1000 ( 6.9 Bar / 100 Psig) |
Flow Capacity | Model 1000 10 SCFM |
Operating Supply Gases | Air , Nitrogen, Methane(Filter regulator recommended to ensure clean supply) |
Dead Band Width | 1 Psig (0.7 Bar) or 5 % of Output Span whichever is greater |
Fixed Input /Output Ratio I: | 1 |
Materials of Construction | Aluminium /Stainless Steel SS 316 |
R.K.CONTROL放大器VB系列產品介紹
當需要輸入隔離或增加流量時，RK容積助推器通常用于以1:1的比例再現氣動信號。
助推器具有固定的死區，軟閥座結構和整體旁路限制，可消除不具有這些功能的容積助推器可能出現的定位器飽和問題?？烧{(diào)節的整體旁路限制對于系統穩定性是必需的。該調整不會影響音量助推器的死區，但可以使控制閥對較小的輸入信號變化做出響應，而不會犧牲穩態精度。
當輸入信號發生大而快速的變化時，它還允許升壓器提供高輸出量，以實現快速?zèng)_程。
這些具有固定最小死區的大容量增壓器旨在大幅提高大型執行器的行程速度。
只要執行器的信號波動保持在死區限制之內，執行器便會保持其正常的緩慢和穩定響應，該死區限制是通過調節Booster中的均衡/旁通閥來確定的。
RK Volume Boosters are normally used to reproduce pneumatic signals in 1:1 ratio whenever input isolation or increased flow capacity is required.
The booster incorporates fixed deadband, soft seat construction, and an integral bypass restriction to eliminate positioner saturation problems that can occur with volume boosters that do not have these features. Adjustable integral bypass restriction is necessary for system stability. This adjustment does not affect the deadband of the volume booster, but does permit the control valve to respond to small input signal changes without sacrificing steady-state accuracy.
It also allows the booster to deliver high-volume output for fast stroking when large, rapid input signal changes occur.
These high capacity Volume Boosters with fixed minimum dead band are designed to substantially improve the stroking speeds of large actuators.
Actuators retain their normal slow and stable responses as long as their signal fluctuations remain within the dead band limits that are determined by adjustment of the equalizing / by pass valve with in the Booster.

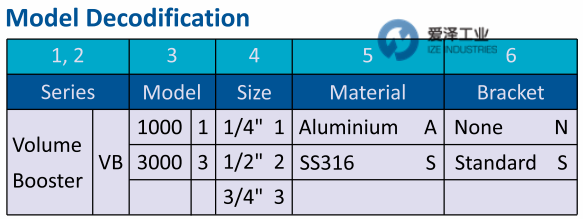

R.K.CONTROL放大器VB系列選型
R.K.CONTROL放大器VB系列其他常見型號：
R.K.CONTROL 1000
R.K.CONTROL 3000
R.K.CONTROL VB1000SS1
R.K.CONTROL VB1000AL1
R.K.CONTROL VB3000AL2
R.K.CONTROL VB3000SS1
R.K.CONTROL volume boosters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于R.K.CONTROL放大器VB3000SS3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for R.K.CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
R.K.CONTROL放大器VB系列VB3000SS3產品參數
