GRUNER成立于1954年，執行器一直是公司產品系列的重要組成部分。
GRUNER執行器227-024-05-S1技術參數
Electrical data | |
Nominal voltage | 24 VAC/DC.50/60 Hz |
Nominal voltage range | 19..29 VAC/DC |
Power consumption motor (motion) | 2,0 w |
Power consumption standby (end position) | 1,0 w |
Wire sizing | 4,0 VA |
Control | 2-/3-point |
Auiliary switch | 1x SPDT (Ag) |
Contact load | 5(2.5) A.250 VAC |
Switching point | 0...95° |
Connection motor | cable 1000 mm, 3 x 0,75 mm2 (halogen free) |
Connection auxiliary switch | cable 1000 mm, 3 x 0.75 mm2 (halogen free) |
Functional data | |
Torque | 5 Nm |
Damper size | up to approx. 1 m2 |
Synchronized speed | ±5% |
Direction of rotation | selected by switch |
Manual override | gearing latch disengaged with pushbutton, self-resetting |
Angle of rotation | 0...max.95° can be limited with adjustable mechanical end stops |
Running time | 100s/90° |
Sound power level | < 35 dB(A) |
Shaft coupling | clamp ? 8-15 mm / ? 8-20 mm |
Position indication | mechanical with pointer |
Service life | > 100 000 cycles (0°...95°...0°) |
Safety | |
Protection class | III (safety extra-low voltage) |
Protection class auxiliary switch | II (double insulation) |
Degree of protection | IP 54 (cable downwards) |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage supply / control | 0,8 kV (EN 60730-1) |
Rated impulse voltage auxiliary switch | 4 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions / Weight | |
Dimensions | 117 x 67 x 66 mm |
Weight | 510 g |
GRUNER執行器227-024-05-S1產品介紹
用于調節 HVAC 裝置中風門的旋轉執行器
運行時間 100 秒/90°
扭矩 5 Nm
標稱電壓 24 VAC/DC
控制 2 點/3 點
輔助開關 1x 可自由調節
阻尼器尺寸可達約 1平方米
聯軸器夾 ? 8-15 mm / ? 8-20 mm
Rotary actuator for adjusting dampers in HVAC installations
Running time 100 s / 90°
Torque 5 Nm
Nominal voltage 24 VAC/DC
Control 2-/3-point
Auxiliary switch 1x freely adjustable
Damper size up to approx. 1 m2
Shaft coupling clamp ? 8-15 mm / ? 8-20 mm

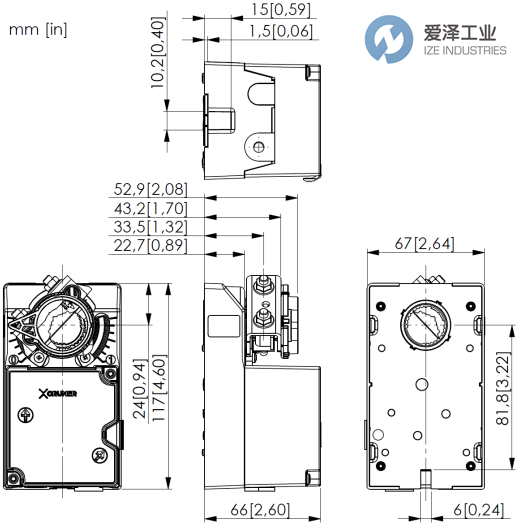

GRUNER執行器227-024-05-S1技術尺寸
GRUNER執行器其他常用型號：
GRUNER 227-024-10-P5
GRUNER 227-024-10-S1
GRUNER 227-024-15-S1
GRUNER 227-024-10-S1
GRUNER 227-024-15
GRUNER 227-024D-05
GRUNER 227-024-08-V/ST05
GRUNER 227-024-10
GRUNER 227-024-08-P5
GRUNER 227-024-08-S1
GRUNER 227-024-05-S1
GRUNER 227-024-05-P5
GRUNER Rotary actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRUNER執行器227-024-05-S1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRUNER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GRUNER執行器227-024-05-S1技術參數及尺寸
