FOXBORO現為法國Schneider旗下品牌，主要制造工業控制及過程自動化中的相關儀表。
施耐德電氣（法語：Schneider Electric）成立于1836年，乃世界最大能源管理公司、優化解決方案供應商之一，主要產品包括斷路器、傳感器、控制器等等，為各國能源設施、工業、數據中心及網絡、樓宇，提供整體解決方案。其中在能源、基礎設施、工業過程控制、樓宇自動化、數據中心與網絡等市場，皆處世界領先地位。
FOXBORO主營產品：FOXBORO傳感器，F(xiàn)OXBORO斷路器，F(xiàn)OXBORO控制閥，F(xiàn)OXBORO執行器，F(xiàn)OXBORO轉換器，F(xiàn)OXBORO繼電器，F(xiàn)OXBORO控制器，F(xiàn)OXBORO記錄儀和指示燈，F(xiàn)OXBORO熱電偶套管，F(xiàn)OXBORO DEWCEL露點測量儀，F(xiàn)OXBORO過濾調節器，F(xiàn)OXBORO氣動變送器等。
FOXBORO PH/ORP傳感器871A系列規格參數
Standard Specifications | |
Automatic Temperature Compensation (ATC) | 100 platinum RTD in -1 and -2 (standard) versions and 1000 platinum RTD in -3 and -4 (intelligent) versions. |
Cable Temperature Limit | 85°C (185°F) |
Sensor Immersion Depth | 76 mm (3 in) minimum. |
Process Wetted Parts Materials: |
Platinum or gold, as specified. |
Reference Electrode | Ceramic, double junction with KC1, nonflowing, gelled electrolyte (Ag, AgC1 half cell). |
Cable | Integral 3 m (10 ft) No. 22 AWG with stripped and tinned ends. Intelligent sensors have lugs as standard. |
Sensor Mounting | 1 NPT on both ends with a 1.125-inch wrench flat on body . |
Sensor Torque | Maximum torque specification is 31 N?m (23 lb?ft). |
Measurement Range |
|
Mass | 0.35 kg (0.75 lb) including cable. |
Electromagnetic | The 871A Sensor, when its cable is connected through rigid metal conduit as recommended to 873PH, 873APH, 873DPX (220 V ac, 240 V ac Metal Enclosures only), 875PH, or 870ITPH Analyzers/Transmitters, complies with the requirements of the European EMC Directive 89/336/EEC. |
FOXBORO PH/ORP傳感器871A系列介紹
871A-1和-2（標準）傳感器設計用于873PH和873DPX分析儀，也可以與875PH分析儀和870ITPH變送器一起使用。
871A-3和-4（智能）傳感器設計用于875PH智能分析儀和870ITPH智能變送器。它們提供了在線診斷的附加功能，以在出現幾種常見傳感器故障中的任何一種時向用戶發出信號。這些傳感器可以通過多種方式安裝到過程中。它們在電極和電纜末端都有1英寸的外部NPT連接。傳感器可以直接插入到生產線中，也可以通過各種附件將傳感器連接到其他標準管道尺寸。通過將傳感器電纜端的1英寸NPT連接耦合到所需長度的1英寸管道，然后將組件降低到要監視的過程中，就可以在堰，水渠，池塘和水箱中進行現場安裝。
這些傳感器采用密封的電極設計，消除了對電極系統完整性的擔憂。當與智能分析儀或變送器一起使用時，智能傳感器設計可以向用戶發送信號，告知其電極系統完整性是否丟失或破壞。所有傳感器均經過工廠測試，以確保安裝時具有適當?shù)男阅堋?/p>
The 871A-1 and -2 (standard) Sensors are designed for use with 873PH and 873DPX Analyzers.They can also be used with 875PH Analyzers and 870ITPH Transmitters.
871A-3 and -4 (intelligent) Sensors are designed for use with 875PH Intelligent Analyzers and 870ITPH Intelligent Transmitters. They provide the additional capability of on-line diagnostics to signal the user if any of several common sensor faults occur. These sensors may be mounted to the process in a number of ways. They have a 1-inch external NPT connection on both the electrode and cable end. The sensors can be inserted directly into the process line or through a variety of accessories that adapt this connection to other standard pipe sizes. In-situ mounting into weirs, flumes, ponds and tanks is achieved by coupling the 1-inch NPT connection at the cable end of the sensor to the required length of 1-inch pipe and then lowering the assembly into the process being monitored.
These sensors, with their sealed electrode design, eliminate concerns of electrode system integrity.The intelligent sensor design, when used with the intelligent analyzer or transmitter, signals the user if electrode system integrity is lost or destroyed. All sensors are factory tested to ensure proper performance upon installation.

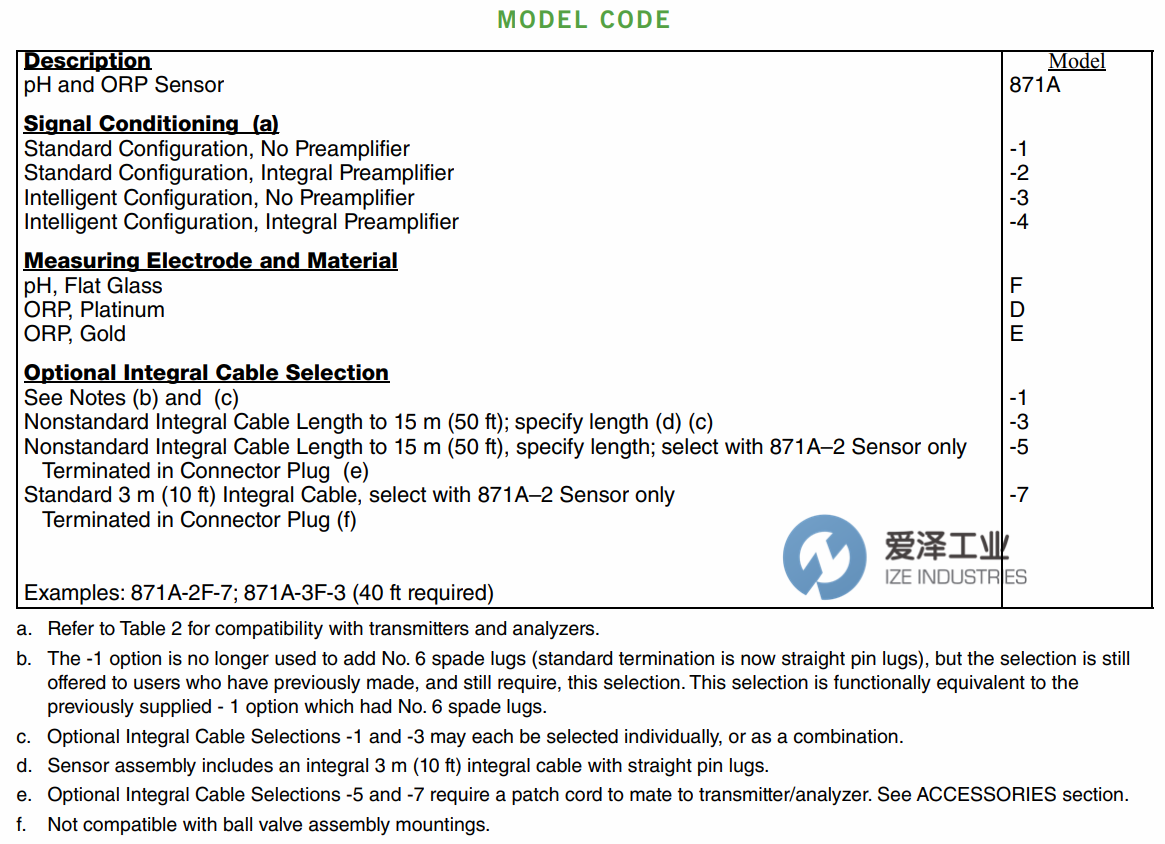

FOXBORO PH/ORP傳感器871A系列選型介紹
FOXBORO PH/ORP傳感器871A系列其他常用型號：
FOXBORO 871A–1
FOXBORO 871A–2
FOXBORO 871A–3
FOXBORO 871A–4
FOXBORO 871A-1D-1
FOXBORO 871A-1F-3
FOXBORO 871A-2F-1
FOXBORO 871A-4F-3
FOXBORO 871A-2F-3
FOXBORO 871A-2F-7
FOXBORO 871A-2D-1
FOXBORO PH/ORP Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FOXBORO PH/ORP傳感器871A-1F-3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
FOXBORO PH/ORP傳感器871A系列871A-1F-3規格及選型
