BELIMO作為一家始創于1975年的瑞士公司，BELIMO博力謀主要為廣大客戶提供應用在加熱，通風及空調等領域的優秀品質的風門和執行器。
BELIMO產品有：風閥執行器，閥門，感測器等。
BELIMO執行器NVK24A-MP-TPC技術參數
Technical data | |
Electrical data | |
Nominal voltage | AC/DC 24 V |
Nominal voltage frequency | 50/60 Hz |
Nominal voltage range | AC19.2...28.8V/ DC21.6...28.8V |
Power consumption in operation | 2.5 W |
Power consumption in rest position | 1.5 w |
Power consumption for wire sizing | 6 VA |
Connection supply / control | Terminals with cable 1 m, 4 x 0.75 mm2 (Terminal 4 mm2) |
Parallel operation | Yes (note the performance data) |
Data bus communication | |
Communicative control | MP-Bus |
Number of nodes | MP-Bus max.8 |
Functional data | |
Actuating force motor | 1000 N |
Operating range Y | 2...10 V |
Input Impedance | 100 k? |
Operating range Y variable | Start point 0.5...30 V |
Operating modes optional | Open/close |
Position feedback U | 2...10 V |
Position feedback U note | Max. 0.5 mA |
Position feedback U variable | Start point 0.5...8 V |
Setting fail-safe position | Stem 0...100%, adjustable (POP rotary knob) |
Bridging time (PF) | 2 s |
Bridging time (PF) variable | 0...10 s |
Position accuracy | ±5% |
Manual override | with push-button |
Stroke | 20 mm |
Running time motor | 150 s / 20 mm |
Running time motor variable | 90...150 s |
Running time fail-safe | 35 s / 20 mm |
Adaptation setting range | manual (automatic on first power-up) |
Adaptation setting range variable | No action |
Override control | MAX (maximum position) = 100% |
Override control variable | MAX = (MIN + 33%)...100% |
Sound power level, motor | 56 dB(A) |
Sound power level, fail-safe | 45 dB(A) |
Position indication | Mechanically, 5...20 mm stroke |
Safety data | |
Protection class IEC/EN | II, Safety Extra-Low Voltage (SELV) |
Power source UL | Class 2 Supply |
Degree of protection IEC/EN | IP54 |
Degree of protection NEMA/UL | NEMA 2 |
Enclosure | UL Enclosure Type 2 |
EMC | CE according to 2014/30/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
UL Approval | cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1 The UL marking on the actuator depends on the production site, the device is UL-compliant in any case |
Mode of operation | Type 1.AA |
Rated impulse voltage supply / control | 0.8 kV |
Pollution degree | 3 |
Ambient humidity | Max.95% RH, non-condensing |
Ambient temperature | 0...50°C [32...122°F] |
Storage temperature | -40...80°C [-40...176°F] |
Servicing | maintenance-free |
Weight | |
Weight | 1.4 kg |
Terms | |
Abbreviations | POP = Power off position / fail-safe position |
BELIMO執行器NVK24A-MP-TPC產品介紹
用于 2 通和 3 通截止閥的具有故障保護功能的通信截止閥執行器
? 驅動力 1000 N
? 標稱電壓 AC/DC 24 V
? 控制調制，通信 2...10 V 變量
? 行程 20 毫米
? 傳感器信號的轉換
? 通過Belimo MP-Bus 進行通信
Communicative globe valve actuator with failsafe for 2-way and 3-way globe valves
? Actuating force 1000 N
? Nominal voltage AC/DC 24 V
? Control modulating, communicative 2...10 V variable
? Stroke 20 mm
? Conversion of sensor signals
? Communication via Belimo MP-Bus

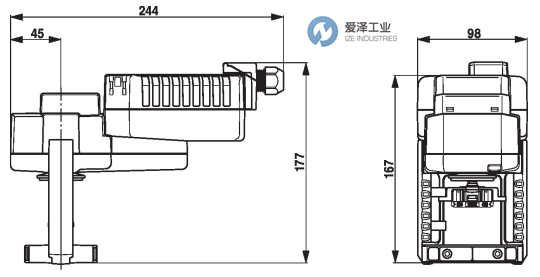

BELIMO執行器NVK24A-MP-TPC技術尺寸
BELIMO執行器其他常用型號：
BELIMO NVK24A-SZ-TPC
BELIMO NVK24A-SR-TPC
BELIMO NVK24A-MP-TPC
BELIMO NVK24A-MP-RE
BELIMO NVK24A-3-TPC
BELIMO NVK24A-3-RE
BELIMO NVK24A-MOD
