TESCOM是精密壓力控制調節器，閥門和系統的優質制造商之一。該公司成立于1916年， 2005年被EMERSON收購。
主營業務：
TESCOM壓力調節器
TESCOM閥門
TESCOM閥塊
TESCOM壓力系統。
OPERATING PARAMETERS | |
Maximum Pressure | 50 mm Hg-10,000 psig / 50 mm Hg-690 bar |
Design Proof Pressure | 150% of maximum rated |
Leakage | < 4 x 10-8 Torr liter sec -1 at 50 psid / 3.4 bar d Helium |
Operating Temperature | -30°F to 300°F / -34 °C to 149 °C |
Flow Capacity | Cv = 0.00125 Maximum |
Maximum Operating Torque | 10 inch-lbs / 1.1 N?m |
MEDIA CONTACT MATERIALS | |
Body | 316 Stainless Steel |
Seat | Peek, Polyimide (Vespel?) |
O-Rings | Ethylene Propylene, FKM (Viton?-A), Nitrile, Buna-N 90 Durometer, FFKM, Perfluoroelastomer (Kalrez?) |
Back-up Ring | PTFE |
Remaining Parts | 300 Series Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Connections | NPTF, SAE (1/8" only), High Purity Internal Connections (HPIC) (3500 psig / 241 bar Maximum) |
Internal Volume | Approximately 0.25 cc |
Weight | 0.9 lbs / 0.4 kg |
TESCOM計量閥CC系列介紹
TESCOM CC 系列計量閥的額定壓力為 10,000 psig / 690 bar，并包含一個非旋轉閥桿以減少閥座和閥桿磨損。 該閥門具有從關閉到完全打開的 20 多圈，提供出色的流量控制。
應用
? 噴射系統
? 校準系統
? 樣品系統
? GC 載氣
? 超臨界流體萃取
特點和優勢
? 緊湊的設計
? 可在高壓和低壓下使用
? 以極高的精度控制氣流
? 真空和/或正壓應用的精確流量控制
? 非旋轉閥桿有助于減少閥座磨損
TESCOM CC Series metering valve is rated to 10,000 psig / 690 bar and contains a non-rotating stem to reduce seat and stem wear. The valve features over 20 turns from shutoff to full open, providing excellent flow control.
Applications
? Injection systems
? Calibration systems
? Sample systems
? GC carrier gas
? Super critical fluid extraction
Features and Benefits
? Compact design
? Can be used at high and low pressures
? Controls gas flow with extreme accuracy
? Accurate flow control into both vacuum and/or
positive pressure application
? Non-rotating stem assists in reducing seat wear

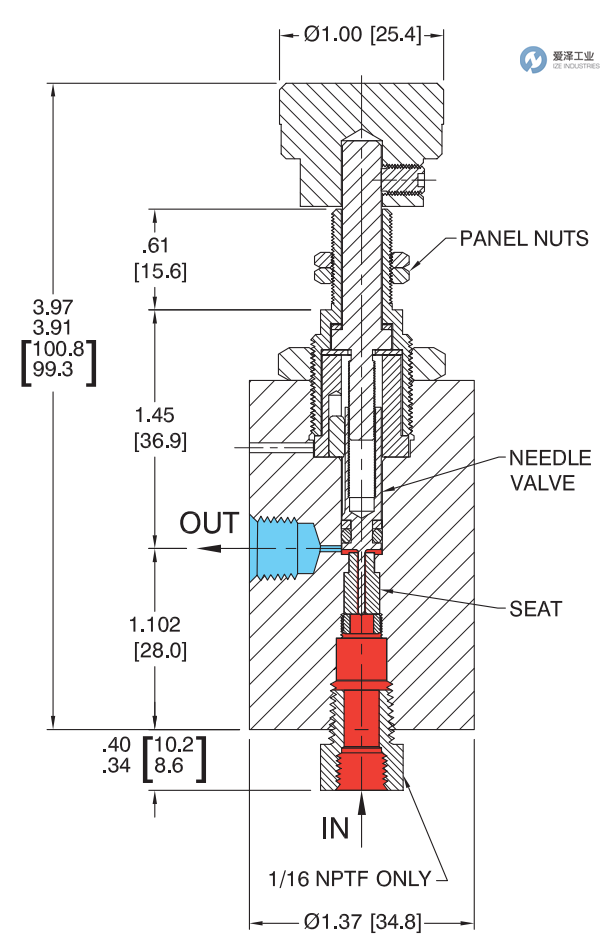

TESCOM計量閥CC系列技術尺寸

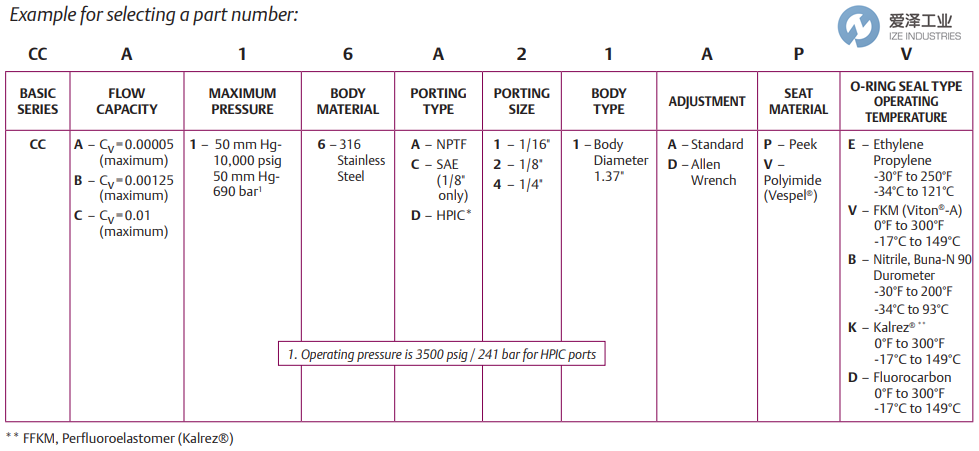

TESCOM計量閥CC系列選型
TESCOM計量閥CC系列其他常用型號：
TESCOM CC-A16A41APV-002
TESCOM CC-A16A41APV
TESCOM CC-A16A21APV
TESCOM Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM計量閥CC-A16A41APV-002的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TESCOM計量閥CC系列CC-A16A41APV-002技術參數及選型
