意大利RAVIOLI在米蘭成立，具有90年的歷史和傳統。主要致力于自主電子接觸器，連接器的研發，RAVIOLI開關產品應用在遠程控制領域。多年來RAVIOLI開發生產的產品不斷滿足市場的需求，擁有自己獨特的經營理念。
RAVIOLI滑環PMS系列技術參數
Housing | In aluminium, suitable for installation in inside or outside area |
Positioning | In vertical axis, with threaded pipe at the bottom |
Connections | Rings cabled with 2 m long cable |
Cable entry | Inside the fastener pipe for the rings and through the PG21 cable entry for the brush holders |
Brushes | 20 A or 50 A copper graphite / silver graphite for signals |
Executions | From 6 to 30 rings 20 A - mixed executions 20/50 A |
Armonized rules | EN 60947 - 5 - 1 EN 60529 2006/95/CE - 2004/108/CE - 2006/42/CE |
Marking | CE |
Electrical Features | |
Nominal voltage | 660 V ac - dc |
Nominal current | Ith 20 A - 50 A |
Protection degree | IP 55 |
Max rotating speed | 30 revs / min |
Test voltage | 2,5 kV |
Operating temperature | - 20 °C ÷ + 60 °C |
RAVIOLI滑環PMS系列介紹
RAVIOLI PMS型滑環采用合金底和鋁蓋設計，保證了強大的機械阻力和高防護等級。
提供用于信號的銅石墨或銀石墨刷，執行范圍為 6 至 30 環 20 A 和 50 A，防護等級 IP55?？筛鶕?jù)要求提供一個或多個流體通道或角度傳感器。
RAVIOLI PMS型滑環特別適用于需要小尺寸和降低設備高度的戶外應用，因?yàn)榄h(huán)之間的距離只有 5 毫米。
Ravioli Slip Ring Type PMS is designed with alloy bottom and aluminium cover which guarantee a strong mechanical resistance and a high protection degree.
Copper-graphite or silver-graphite brushes for signals are available, executions range from 6 to 30 rings 20 A and 50 A, protection degree IP55. One or more fluidic passages or angular sensors are available upon request.
Ravioli Slip Ring Type PMS is extremely useful especially for outdoor applications where small dimensions and reduced hight of the device are required, thanks to the limited distance among the rings of only 5mm.

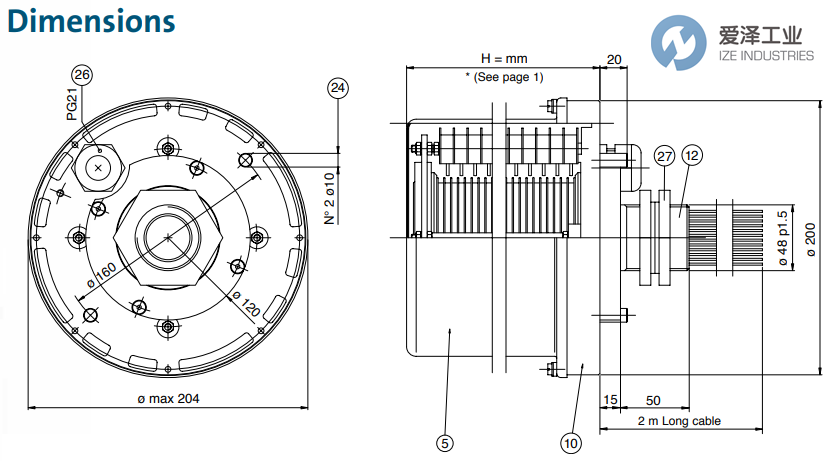

RAVIOLI滑環PMS系列技術尺寸
RAVIOLI滑環PMS系列其他常用型號：
RAVIOLI GPMSB6
RAVIOLI GPMSB10
RAVIOLI GPMSB16
RAVIOLI GPMSB20
RAVIOLI GPMSB26
RAVIOLI GPMSB30
RAVIOLI GPMSB30-001
RAVIOLI Slip Ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RAVIOLI滑環GPMSB30-001的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RAVIOLI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
RAVIOLI滑環PMS系列GPMSB30-001技術參數及尺寸
