SUBCONN擁有豐富的經驗和專業知識，為客戶提供特殊的連接器解決方案。SUBCONN水下技術集團已經向苛刻的水下工業提供了全球領先的水下可插拔電氣連接器近40年。SUBCONN系列多年來一直在開發，以滿足全球客戶從淺水使用到全面深度評估的需求。
SUBCONN的主要產品有SUBCONN水密連接器，SUBCONN水下連接器，SUBCONN水底連接器，SUBCONN液壓缸，SUBCONN電纜，SUBCONN水密電源/信號電纜等等。
SUBCONN水密連接器Micro Circular系列技術參數
Connector specifications | |
Voltage rating | 300 V DC/AC rms |
2, 3 and 4 contacts current rating | 10 A per contact (max 20 A per connector) |
5, 6 and 8 contacts current rating | 5 A per contact (max 20 A per connector) |
G2 2, 3 and 4 contacts current rating | 5 A per contact (max 20 A per connector) |
Insulation resistance | > 200 Mohm |
Contact resistance | < 0.01 ohm |
Wet matings | > 500 |
Temperature rating (water) | - 4 to 60?C, 25 to 140?F |
Temperature rating (air) | - 40 to 60?C, - 40 to 140?F |
Storage temperature rating | - 40 to 60?C, - 40 to 140?F |
Qualified pressure tested | 800 bar, 11,600 psi |
Depth rating PEEK | 300 bar, 4,350 psi |
SUBCONN水密連接器Micro Circular系列介紹
SubConn微型圓形系列具有增強的密封能力，并采用了統一的觸點尺寸和設計。 SubConn微型圓形連接器基于原始的SubConn圓形系列而開發，以適應水下儀器，設備和系統日益緊湊的設計。
SubConn微型圓形連接器在標準串聯版本和隔板版本中提供2至21個觸點，額定電流為300 V，5至10A。
SubConn微型圓形連接器由高級氯丁橡膠和多種車身材料制成，并具有很高的海洋深度等級。 SubConn微型圓形連接器具有增強的密封能力，并采用統一的觸點尺寸和設計。
The SubConn Micro Circular series has enhanced sealing capability and utilise a uniform contact size and design. Based on the original SubConn Circular series, SubConn Micro Circular connectors were developed to suit the increasingly more compact design of underwater instruments, equipment and systems.
The SubConn Micro Circular connectors are available with 2 to 21 contacts rated at 300 V from 5 to 10 A in the standard inline version and in bulkhead versions.
The SubConn Micro Circular connectors are manufactured from high-grade neoprene and a variety of body material options and feature a high ocean depth rating. The SubConn Micro Circular connectors have enhanced sealing capability and utilise a uniform contact size and design.
SUBCONN水密連接器Micro Circular系列其他常用型號：
SUBCONN MCIL2F
SUBCONN MCIL8M
SUBCONN MCBH8MSS
SUBCONN MCBH8M
SUBCONN MCBH8MSSNM
SUBCONN MCBH8MNM
SUBCONN MCBH8MSS-WB
SUBCONN MCBH8M-WB
SUBCONN MCBHRA8F
SUBCONN MCBHRA8M
SUBCONN MCOM8F
SUBCONN MCOM8M
SUBCONN MCOMB
SUBCONN MCPBOF8F
SUBCONN MCPBOF8M
SUBCONN MCDC8F
SUBCONN MCDC8M
SUBCONN MCDLS-F
SUBCONN MCDLS-M
SUBCONN MCDDWLS
SUBCONN Data reader base NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUBCONN連接器MCBH8FSS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUBCONN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

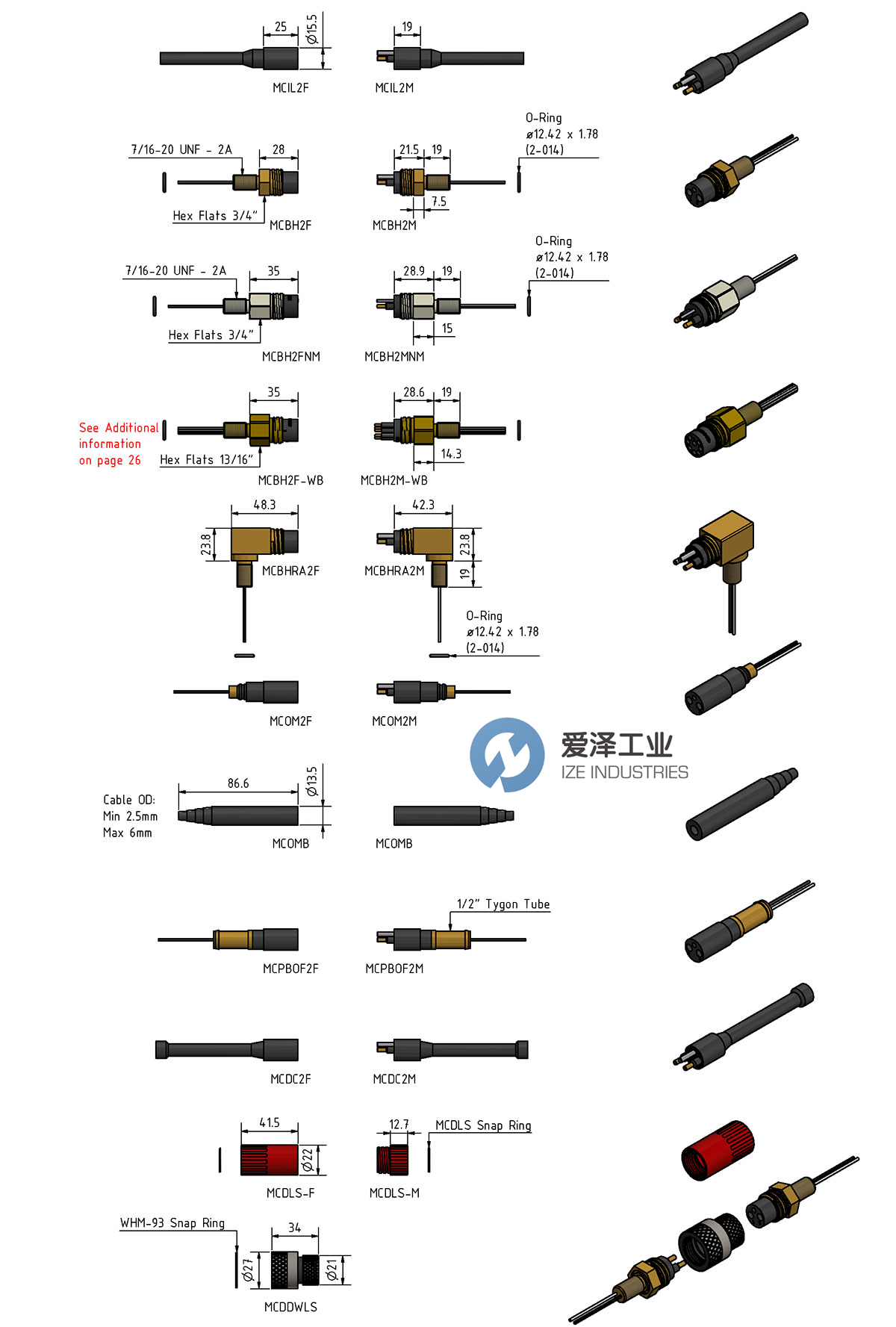

SUBCONN連接器Micro Circular系列技術參數
