JOHNSON CONTROLS壓力控制器P100系列技術參數
Specifications | |
Product | P100 Encapsulated Pressure Controls |
Electrical Ratings | 120 and 240 VAC at 50/60 Hz |
Burst Pressure | 3,500 psi (24,132 kPa) |
Maximum Overpressure | 250 psi (1,724 kPa) overpressure rating for P100 controls with 20 to 100 psi (138 to 690 kPa) working pressure |
Refrigerant Temperature | -65 to 275°F (-54 to 135°C) |
Ambient Temperature | Operating: -20° to 150°F (-29° to 66°C) |
Dielectric Strength | 750 Vrms Across Open Contacts |
Ambient Humidity | 0 to 95% RH non-condensing; Maximum Dew Point: 85°F (29°C) |
Agency Listings | UL Recognition (US): File SA516, CCN SDFY2 |
JOHNSON CONTROLS壓力控制器P100系列介紹
P100系列封裝壓力控制器是緊湊、經濟、直接安裝、速動、開/關壓力控制器，可用于各種工廠校準、不可調節的壓力設定點。
P100控制器主要設計用于電機和其他制冷或空調應用負載的直接或先導式控制，這些負載需要在廣泛的環境條件下進行精確、可重復的壓力控制。
P100控制器可提供多種壓力連接方式、電氣額定值和開關動作。 某些型號提供高壓手動復位鎖定。
The P100 Series Encapsulated Pressure Controls are compact, economical, direct-mount, snap-action, On/Off pressure controls, available in a wide variety of factory-calibrated, non-adjustable pressure setpoints.
The P100 controls are designed primarily for direct or pilot duty control of motors and other refrigeration or air conditioning application loads requiring precise, repeatable pressure control over a wide range of ambient conditions.
The P100 controls are available with a variety of pressure connection styles, electrical ratings, and switch actions. A high-pressure manual reset lockout is available on some models.

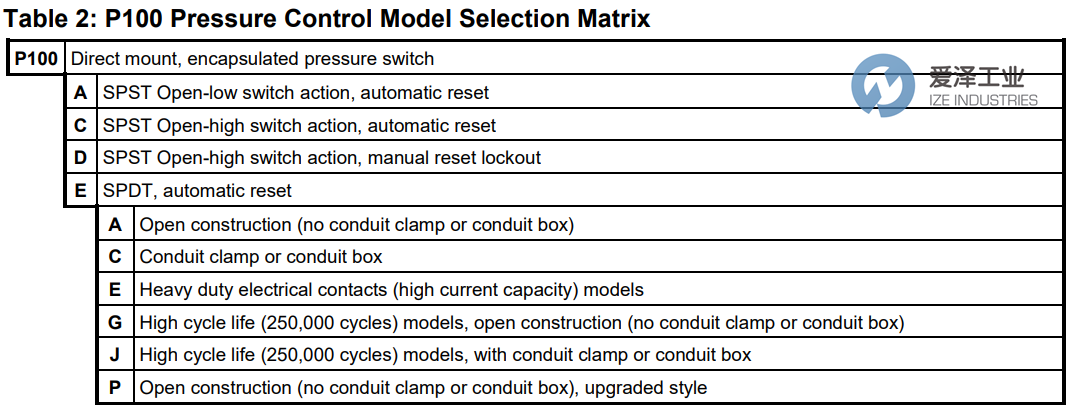

JOHNSON CONTROLS壓力控制器P100系列選型
JOHNSON CONTROLS壓力控制器P100系列其他常用型號：
JOHNSON CONTROLS P100CP-165C
JOHNSON CONTROLS P100CP-85C
JOHNSON CONTROLS P100DA-35C
JOHNSON CONTROLS P100DC-3C3
JOHNSON CONTROLS P100DA-1C
JOHNSON CONTROLS P100DA-100C
JOHNSON CONTROLS P100DA-101C
JOHNSON CONTROLS P100DA-2C
JOHNSON CONTROLS P100DA-86C
JOHNSON CONTROLS P100DA-81C
JOHNSON CONTROLS P100DA-82D
JOHNSON CONTROLS Pressure Controls NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOHNSON CONTROLS壓力控制器P100DA-82D的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOHNSON CONTROLS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
JOHNSON CONTROLS壓力控制器P100系列P100DA-82D技術參數及選型
