BELIMO作為一家始創于1975年的瑞士公司，BELIMO博力謀主要為廣大客戶提供應用在加熱，通風及空調等領域的優秀品質的風門和執行器。
BELIMO產品有：風閥執行器，閥門，感測器等。
BELIMO執行器LMS24-S技術參數
Electrical data | |
Nominal voltage | AC/DC 24 V |
Nominal voltage frequency | 50/60 Hz |
Nominal voltage range | AC 19.2...28.8 V / DC 19.2...28.8 V |
Power consumption in operation | 1 W |
Power consumption in rest position | 0.4 W |
Power consumption for wire sizing | 2 VA |
Connection supply / control | Cable 1 m, 4 x 0.75 mm2 |
Parallel operation | Yes (note the performance data) |
Functional data | |
Torque motor | 5 Nm |
Operating range Y | 2...10 V |
Input Impedance | 100 k? |
Position feedback U | 2...10 V |
Position feedback U note | Max. 1 mA |
Position accuracy | ±5% |
Direction of motion motor | selectable with switch 0/1 |
Direction of motion note | Y = 0 V: At switch position 0 (ccw rotation) / 1 (cw rotation) |
Manual override | with push-button, can be locked |
Angle of rotation | Max. 95° |
Angle of rotation note | can be limited on both sides with adjustable mechanical end stops |
Running time motor | 150 s / 90° |
Sound power level, motor | 35 dB(A) |
Mechanical interface | Form fit 8x8 mm |
Position indication | Mechanically, pluggable |
Safety data | |
Protection class IEC/EN | III, Safety Extra-Low Voltage (SELV) |
Power source UL | Class 2 Supply |
Degree of protection IEC/EN | IP54 |
Degree of protection NEMA/UL | NEMA 2 |
Enclosure | UL Enclosure Type 2 |
EMC | CE according to 2014/30/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
Mode of operation | Type 1 |
Rated impulse voltage supply / control | 0.8 kV |
Pollution degree | 3 |
Ambient humidity | Max. 95% RH, non-condensing |
Ambient temperature | -30...50°C [-22...122°F] |
Storage temperature | -40...80°C [-40...176°F] |
Servicing | maintenance-free |
Weight | |
Weight | 0.42 kg |
BELIMO執行器LMS24-S產品介紹
調節風門執行器，用于在技術建筑安裝中調節風門
? 風門尺寸最大約0.1平方米
? 扭矩電機 5 Nm
? 標稱電壓 AC/DC 24 V
? 控制調制 2...10 V
? 位置反饋 2...10 V
? 機械接口形式8x8 mm
Modulating damper actuator for adjusting dampers in technical building installations
? Air damper size up to approx. 1 m2
? Torque motor 5 Nm
? Nominal voltage AC/DC 24 V
? Control modulating 2...10 V
? Position feedback 2...10 V
? Mechanical interface Form fit 8x8 mm

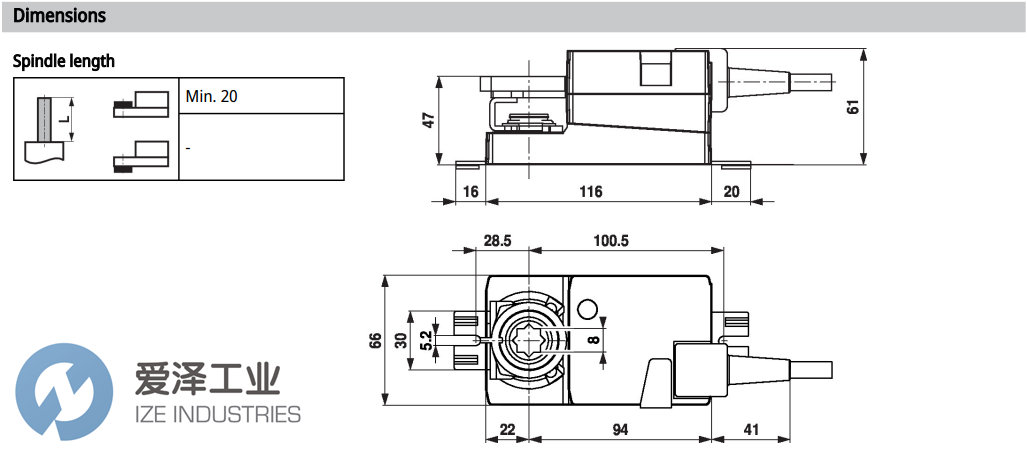

BELIMO執行器LMS24-S技術尺寸
BELIMO執行器LMS24系列其他常用型號：
BELIMO LMS24-SR
BELIMO LMS24-MF
BELIMO LMS24-S
