Mencom 提供模制電纜、現場有線連接器和面板安裝插座的多種組合，并可選擇電纜護套和連接器末端，以滿足客戶的特定要求。
Mencom連接器MIN-6FP-6技術參數
PRODUCT TYPE | Cables |
COMPONENT TYPE | Cordset |
MENCOM SERIES | MIN Size I |
PIN COUNT | 6 |
HOME RUN PIN COUNT | 6 |
GENDER | Female |
ORIENTATION HEAD 1 | Female Straight |
MATING THREAD / TYPE HEAD 1 | 7/8-16UN2 |
COUPLING THREAD GENDER1 | Female |
ORIENTATION HEAD 2 | N/A |
MATING THREAD / TYPE HEAD 2 | N/A |
COUPLING THREAD GENDER2 | N/A |
WIRE GAUGE | 16 |
UPPER AWG | N/A |
LOWER AWG | N/A |
VOLTAGE RATING | 600 |
AMPERAGE RATING | 8 |
CABLE LENGTH IN METERS | 2 |
CABLE LENGTH IN FEET | 6 |
CABLE O.D. | 0.52 |
COLOR CODE | North American |
CABLE JACKET MATERIAL | PVC |
JACKET COLOR | Yellow |
MOUNTING THREAD | N/A |
MOUNTING STYLE | N/A |
NUT | No |
SHELL / COUPLING NUT MATERIAL | Nickel Plated Brass |
SHIELDING | N/A |
GROUND WIRE | Yes |
GLAND UPPER RANGE | 0.52 |
GLAND LOWER RANGE | 0.52 |
IP RATING | IP69 |
WEIGHT (LBS.) | 1.0525 |

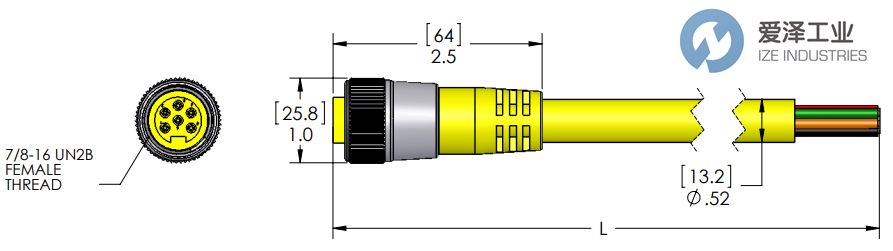

Mencom連接器MIN-6FP-ZZ系列技術尺寸
Mencom連接器MIN-6FP-ZZ系列其他常用型號：
Mencom MIN-6FP-3
Mencom MIN-6FP-6
Mencom MIN-6FP-12
Mencom MIN-6FP-15
Mencom MIN-6FP-20
Mencom MIN-6FP-30
Mencom MIN-6FP-40
Mencom MIN-6FP-50
Mencom MIN-6FP-60
Mencom MIN-6FP-100
Mencom Connector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于Mencom連接器MIN-6FP-6的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for Mencom products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
Mencom連接器MIN-6FP-6技術參數及尺寸
