OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥OD150518E000000 R930060966是OD1505183CS000 R901094735的停產替代型號
REXROTH OIL CONTROL閥VEI-16-08A-NC系列技術參數
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90°C (-22 to 194°F) for W=0000 |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min. (0.1 - 11 gpm) for W=0000 |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 01,05,07 |
Switching time for W=0000 | Opening ≤ 50 ms |
Switching time for W=000T | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 35 - 43 Nm (26 - 32 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X=01,05,07 | code RG08A2010520100 |
Seal kit for X=31,03,09 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |
Note: Coils must be ordered separately |

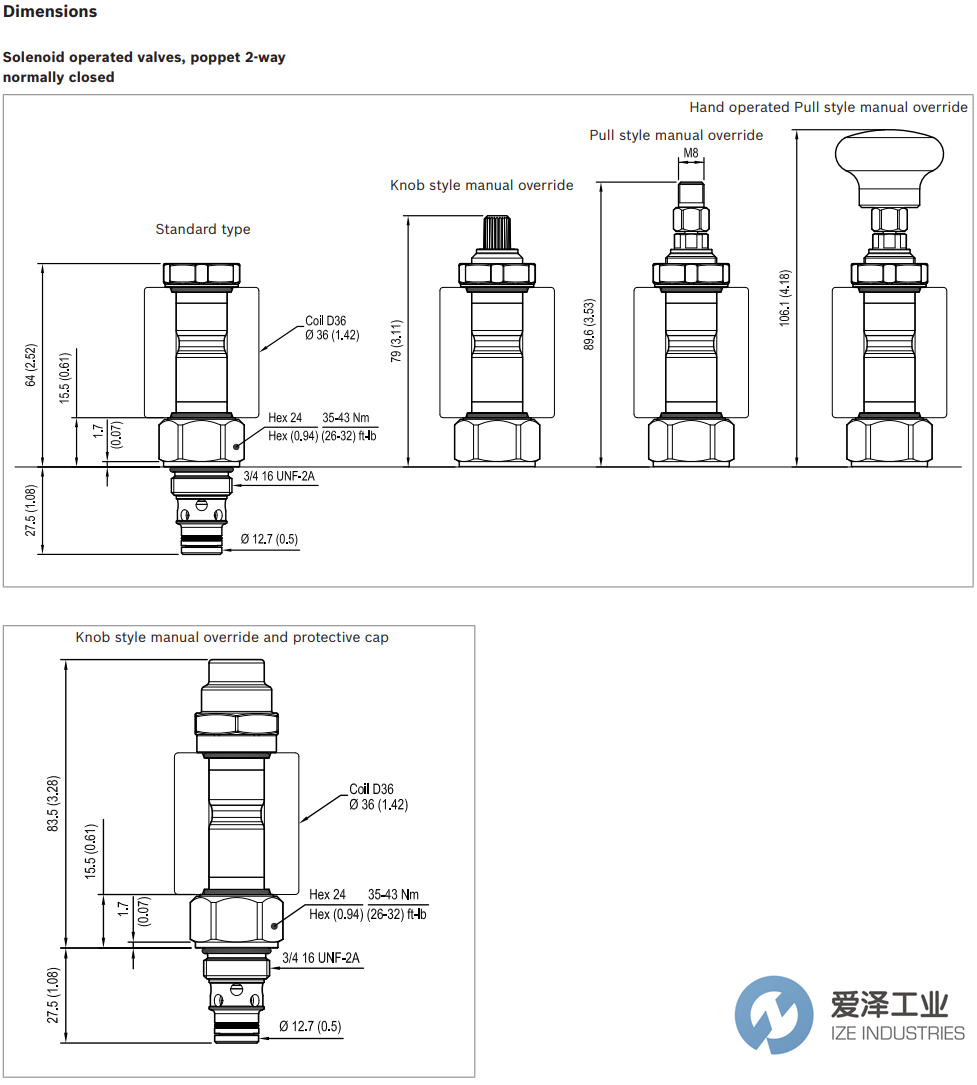

REXROTH OIL CONTROL閥VEI-16-08A-NC系列技術尺寸

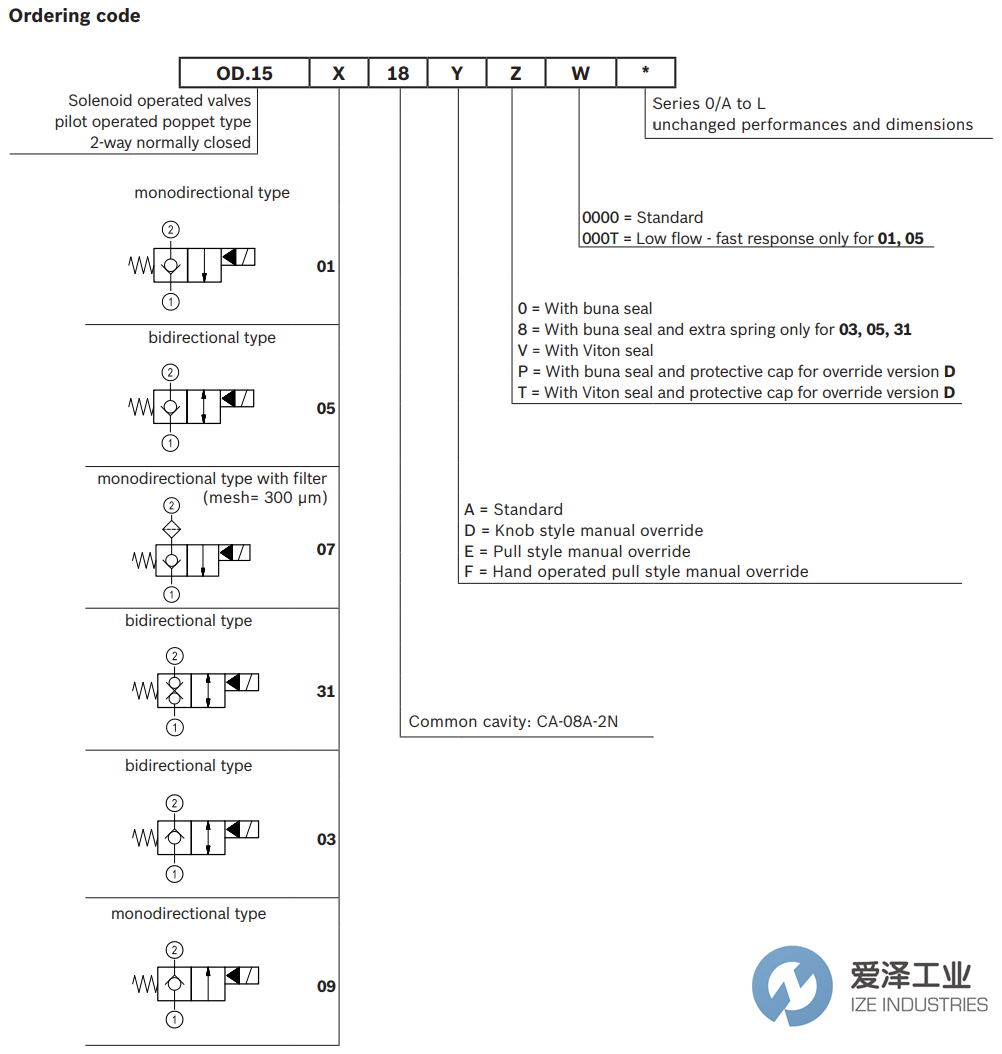

REXROTH OIL CONTROL閥VEI-16-08A-NC系列選型
REXROTH OIL CONTROL閥VEI-16-08A-NC系列其他常用型號：
REXROTH OIL CONTROL OD150118A000000 R930058697
REXROTH OIL CONTROL OD150118D000000 R930059941
REXROTH OIL CONTROL OD150518A000000 R930058427
REXROTH OIL CONTROL OD150518D000000 R930058344
REXROTH OIL CONTROL OD150518DP00000 R930059757
REXROTH OIL CONTROL OD150718A000000 R930058338
REXROTH OIL CONTROL OD150718D000000 R930058336
REXROTH OIL CONTROL OD150718DP00000 R930058529
REXROTH OIL CONTROL OD150118E000000 R930060958
REXROTH OIL CONTROL OD150518E000000 R930060966
REXROTH OIL CONTROL OD150718E000000 R930060973
REXROTH OIL CONTROL OD153118A000000 R930058334
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150518E000000 R930060966的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD150518E000000 R930060966技術參數及選型
