GEMS SENSORS公司專門從事各種型號的液位、流量和壓力傳感器、微型電磁閥及預裝射流系統的設計和制造。
主要經營產品有：
GEMS SENSORS液位開關
GEMS SENSORS壓力開關
GEMS SENSORS壓力變送器
GEMS SENSORS流量開關
GEMS SENSORS流量傳感器
GEMS SENSORS微型電磁閥
GEMS壓力傳感器3500系列技術參數
Specifications | |
Input | |
Pressure Range | 0-5 to 0-600 psi (0-0.35 to 0-40 bar) |
Proof Pressure | 2x |
Burst Pressure | 3x |
Performance | |
Long Term Drift | <0.2% FS/YR |
Accuracy | 0.25% FS |
Thermal Error, Max. | +1%/ 176°F (80°C) |
Compensated Temperatures | -4°F to +212°F (-0°C to +100°C) |
Operating Temperatures | -40°F to +257°F (- 40°C to +125°C) |
Zero Tolerance, Max. | +0.5% of span |
Span Tolerance, Max. | +0.5% of span |
Response Time | ≤1.5 msec |
Fatigue Life | Designed for more than 100 M cycles |
Mechanical Configuration | |
Wetted Parts | 31 6L Stainless Steel |
Enclosure | IP67 |
Vibration | BSEN 60068-2-6 (FC) |
Shock | BSEN 60068-2-27 (Ea) |
Approvals | CE, PED, RoHS |
Individual Specifications | |
Voltage | |
Output | 0V min. to 10V max. |
Supply Voltage (Vs) | 2 Volts above full scale to 30 VDC (24 VDC,max. above 230°F (110°C) applications) |
Source and Sinks | 8 mA |
Current | |
Output | 4-20 mA |
Supply Voltage (Vs) | 10-30 VDC (24 VDC, max.above 230°F (110°C) applications) |
Maximum Load Resistance | (Supply Voltage -10)x 50 Ω |
Ratiometric | |
Output | 0.5-4.5V |
Supply Voltage (Vs) | 5 VDC ±10% |
GEMS壓力傳感器3500系列介紹
3500 系列壓力傳感器采用全316不銹鋼接液部件和多種電氣輸出選擇以及電氣和壓力連接，使其無需修改即可適用于大多數應用。它們的小尺寸使 3500 系列傳感器非常適合安裝在空間有限的地方。這些傳感器中使用的 MMS 傳感器在通電時迅速達到設計準確度，使該系列非常適合遠程、電池供電的情況時安裝，在這種情況下必須有效地減少功耗和時間。
0 至 250 psi 壓力范圍（0 至 16 bar）
0.25% 滿量程精度
< 0.2% 長期漂移
輸出電氣連接和壓力端口的選擇
工作溫度高達 257°F (125°C)
3500 Series Pressure Sensors feature all-316 stainless steel wetted parts and a wide choice of electrical outputs as well as both electrical and pressure connections making this suitable for most applications without modification. Their small size makes of 3500 Series sensors ideal for installation where space is at a premium. The MMS sensor used in these sensors quickly reaches full accuracy at power-up, making this series excellent for remote, battery-powered installations, where power draw and time must be minimized.
0 to 250 psi pressure ranges (0 to 16 bar)
0.25% Full Scale Accuracy
< 0.2% Long Term Drift
Choice of outputs electrical connections and pressure ports
Operating temperature up to 257°F (125°C)

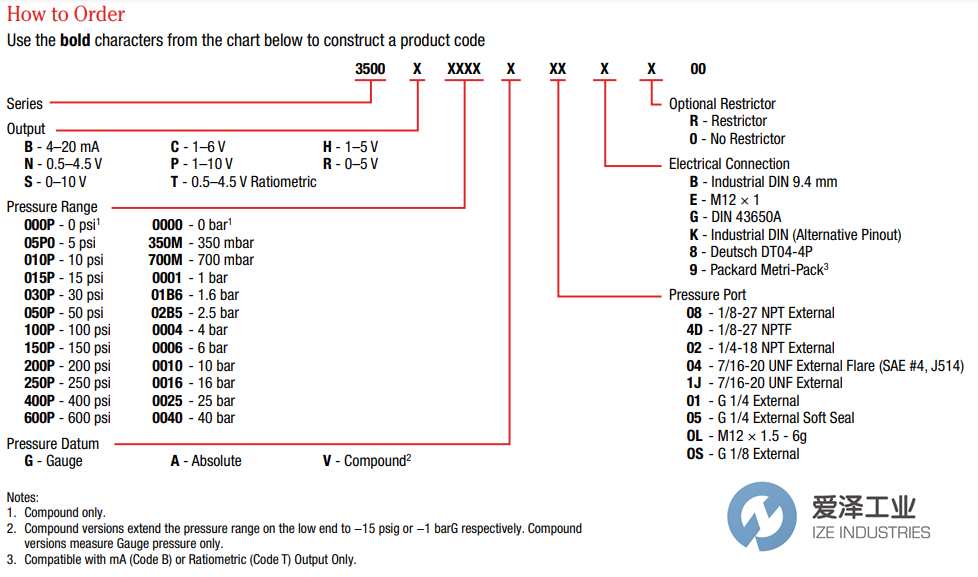

GEMS壓力傳感器3500系列選型
GEMS壓力傳感器3500系列其他常用型號：
GEMS 3500B10CPA01E000
GEMS 3500B015PV02E000
GEMS 3500S200PA02E000
GEMS 3500T015PA02E000
GEMS 3500N01B6A08G000
GEMS 3500T0025A02900
GEMS PRESSURE TRANSDUCERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GEMS壓力傳感器3500T0025A02900的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GEMS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GEMS壓力傳感器3500系列3500T0025A02900技術參數及選型
