HONEYWELL變送器XNX系列技術參數
Construction | |
Material | Housing: 5-coat marine finish painted aluminium aloy or 316 stainless stel |
Weight (Approx.) | Aluminium aly: 2.8kg (6.2lbs). 316 stainless steel: 5kg (1 1bs) |
Mounting | Surface mount via integral mounting lugs. |
Entries | 5 conduitcable entries (2 right, 2 left, 1 bottom). |
Dimensions | 160mm x 197mm x 114mm (6.1" x7.8" x4.5") |
Environmental | |
IP Rating | IP66 in accordance with EN60529:1992. NEMA 4X |
Operating Temperature | -40°C to +65°C (-40°F to +149F) |
Operating Humidity | 0-99%RH (non condensing) |
Operating Pressure | 90-110kPa |
Storage Conditions | -40°C to 75°C (-40°F to 167°F), 0-99% non-condensing |
Electrical | |
Input Voltage Range | EC and mV versions 16 to 32Vdc, IR version 18 to 32 Vdc (24Vdc nominal) |
Max Power Consumption | XNX EC (Toxic): 6.2 watts |
4-20mA Signal Accuracy | +/-1% Full Scale |
Terminals | Cage style pluggable with retaining screws for wire diameter 0.5mm2 to 2.5mm2 (approx. 20AWG to 14AWG) |
HONEYWELL變送器XNX系列介紹
霍尼韋爾 XNX? 通用變送器氣體探測器是一種易于使用、低維護的通用平臺，可與數字總線系統上的其他安全設備配合使用。XNX 與 Honeywell Analytics 的所有工業固定氣體傳感器系列兼容，包括 Searchline Excel、Searchpoint Optima Plus、Sensepoint（HT 和 PPM）和 70 型。多功能檢測器 (MPD) 是一種可維修的不銹鋼傳感器外殼，帶有插入式催化和紅外傳感器盒。XNX 擁有 200 多種獨特的配置，滿足上游/下游石油、化工、廢水和其他行業的 1 類/2 類本質安全、防爆要求。
Honeywell XNX? Universal Transmitter Gas Detectors are a simple-to-use, low-maintenance universal platform that works with other safety equipment on a digital bus system. The XNX is compatible with all of the Honeywell Analytics range of industrial fixed gas sensors including Searchline Excel, Searchpoint Optima Plus, Sensepoint (HT and PPM) and Model 70. The Multi-Purpose Detector (MPD) is a serviceable stainless steel sensor housing with plug-in catalytic and infrared sensor cartridges. With 200+ unique configurations, XNX satisfies Class 1/Class 2 intrinsically safe, explosion-proof requirements in upstream/downstream oil, chemical, wastewater and other industries.

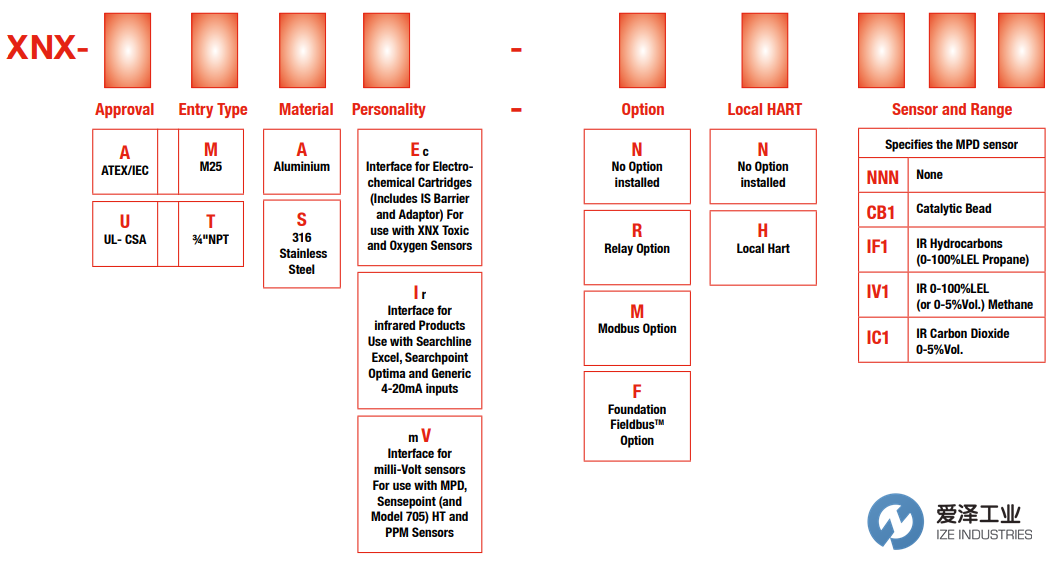

HONEYWELL變送器XNX系列選型
HONEYWELL變送器XNX系列其他常用型號：
HONEYWELL XNX-UTAV-RNIV1
HONEYWELL XNX-UTAV-RNIC1
HONEYWELL XNX-UTAV-RHIC1
HONEYWELL XNX-UTAV-NNIV1
HONEYWELL XNX-UTAV-NNCB1
HONEYWELL XNX-UTAV-NHIC1
HONEYWELL XNX-UTAV-MNIV1
HONEYWELL XNX-UTAV-MHIV1
HONEYWELL XNX-UTAV-MHIC1
HONEYWELL XNX-UTAV-FNIV1
HONEYWELL XNX-UTAV-FHIC1
HONEYWELL Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL變送器XNX-UTAV-NNCB1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HONEYWELL變送器XNX系列XNX-UTAV-NNCB1技術參數及選型
