REXROTH公司總部注冊于德國斯圖加特,公司于1795年成立,及后不斷致力在各制造技術領域犮展,近五十年來,在國際液壓市場一直處位置。REXROTH約271,000 多名員工,公司遍布50多個國家有300多家分公司和區域性公司。REXROTH致力于為各類機械和系統設備提供安全、精準、高效以及高性價比的傳動與控制技術。公司融合全球的應用經驗,研發創新的產品,為行走機械、機械應用與工程、工廠自動化及可再生能源每一個細分市場的客戶量身定制系統解決方案及服務。
REXROTH閥DBETX系列技術參數
General | |
Construction | Spool valve |
Actuation | Proportional solenoid without position control, external amplifier |
Connection type | Subplate, mounting hole configuration NG6 (ISO 4401-03-02-0-94) |
Mounting position | Optional |
Ambient temperature range | –20...+50°C |
Weight | 1.9 kg |
Vibration resistance, test condition | Max. 25 g, shaken in 3 dimensions (24 h) |
Hydraulic (measured with HLP 46, oil = 40 °C ±5 °C) | |
Viscosity range | recommended 20...100 mm2/s |
Pressure fluid | Hydraulic oil to DIN 51524...535, other fluids after prior consultation |
Pressure fluid temperature range | –20...+80°C |
Electrical | |
Cyclic duration factor | 100 |
Degree of protection | IP 65 to DIN 40050 and IEC 14434/5 |
Solenoid connection | Unit plug DIN 43650/ISO 4400, M16x1.5 (2P+PE) |

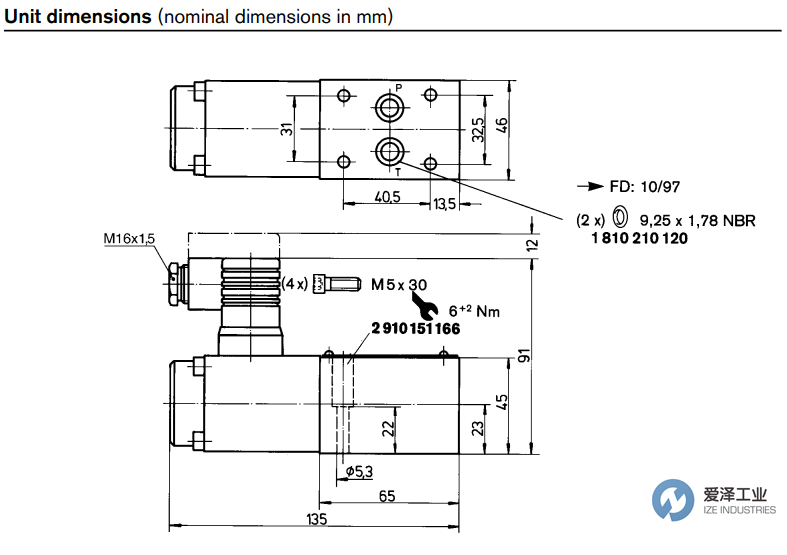

REXROTH閥DBETX系列技術尺寸

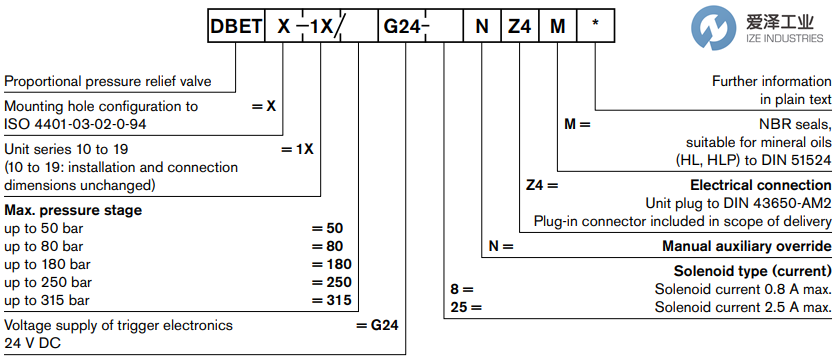

REXROTH閥DBETX系列選型
REXROTH閥DBETX系列其他常用型號:
REXROTH DBETX-1X/315G24-25NZ4M 0811402032
REXROTH DBETX-1X/50G24-8NZ4M 0811402036
REXROTH DBETX-1X/80G24- 8NZ4M 0811402018
REXROTH DBETX-1X/180G24-8NZ4M 0811402017
REXROTH DBETX-1X/250G24-8NZ4M 0811402019
REXROTH DBETX-1X/315G24-8NZ4M 0811402016
REXROTH DBETX-1X/50G24-25NZ4M 0811402034
REXROTH DBETX-1X/80G24-25NZ4M 0811402030
REXROTH DBETX-1X/180G24-25NZ4M 0811402031
REXROTH DBETX-1X/250G24-25NZ4M 0811402035
REXROTH Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥DBETX-1X/315G24-25NZ4M 0811402032的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH閥DBETX-1X/315G24-25NZ4M 0811402032技術參數及選型
