BELIMO作為一家始創于1975年的瑞士公司，BELIMO博力謀主要為廣大客戶提供應用在加熱，通風及空調等領域的優秀品質的風門和執行器。
BELIMO產品有：風閥執行器，閥門，感測器等。
BELIMO風閥執行器BFL230技術參數
Electrical data | |
Nominal voltage | AC 230 V |
Nominal voltage frequency | 50/60 Hz |
Nominal voltage range | AC 198...264 V |
Power consumption in operation | 3W |
Power consumption in rest position | 0.9 w |
Power consumption for wire sizing | 6.5 VA |
Power consumption for wire sizing note | Imax4A @ 5 ms |
Auxiliary switch | 2x SPDT |
Switching capacity auxiliary switch | 1 mA..3 A (0.5 A inductive), DC 5 V..AC 250V (II, reinforced insulation) |
Switching points auxiliary switch | 5° / 80° |
Connection supply / contro . | Cable 1 m, 2 x 0.75 mm2 (halogen-free) |
Connection auxiliary switch | Cable 1 m, 6x 0.75 mm2 (halogen-free) |
Functional data | |
Torque motor | 4 Nm |
Torque fail-safe | 3 Nm |
Direction of motion motor | selectable by mounting L/R |
Manual override | with position stop |
Angle of rotation | Max.95° |
Running time motor | <60s/ 90° |
Running time fail-safe | 20 s @ -0...55.C / <60 s @ 30...-10C |
Sound power level, motor | 43 dB(A) |
Sound power level, fail-safe | 62 dB(A) |
Mechanical interface | Form fit 12x12 mm, continuous hollow shaft |
Position indication | Mechanically, with pointer |
Service life | Min.60'000 safety positions |
Safety data | |
Protection class IEC/EN | II, reinforced insulation |
Protection class auxiliary switch IEC/EN | II, reinforced insulation |
Degree of protection IEC/EN | IP54 |
Degree of protection note | IP protection in all mounting positions |
EMC | CE according to 2014/30/EU |
Low voltage directive | CE according to 2014/35/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
Mode of operation | Type 1.AA.B |
Rated impulse voltage supply / control | 4 kV |
Pollution degree | 3 |
Ambient temperature normal operation | 30..55°C |
Ambient temperature safety operation | The safety position will be attained up to max.75°C |
Storage temperature | -40...80°C |
Ambient humidity | Max. 95% RH, non-condensing |
Servicing | maintenance-free |
Weight | |
Weight | 0.99 kg |
BELIMO風閥執行器BFL230產品介紹
執行器在拉緊復位彈簧的同時將阻尼器移動到操作位置。 當電源電壓中斷時，阻尼器通過彈簧能量返回到安全位置。
無需電源，執行器可以手動操作并固定在任何需要的位置。 它可以通過施加電源電壓手動或自動解鎖。
The actuator moves the damper to the operating position at the same time as tensioning the return spring. The damper is turned back to the safety position by spring energy when the supply voltage is interrupted.
Without power supply, the actuator can be operated manually and fixed in any required position. It can be unlocked manually or automatically by applying the supply voltage.

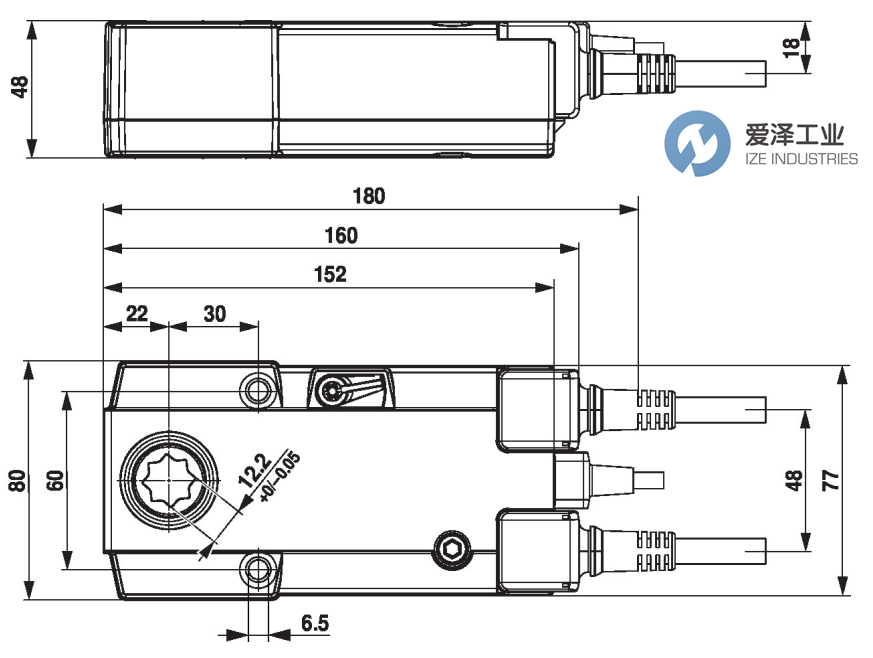

BELIMO風閥執行器BFL230技術尺寸
BELIMO風閥執行器BFL230/系列其他常用型號：
BELIMO BFL230
BELIMO BFL230-T
BELIMO BFL24-T
BELIMO BFL24
BELIMO BFL230-T-ST
BELIMO BFL230-T/300
